User Interface

2026-5-25 about 2 minutes

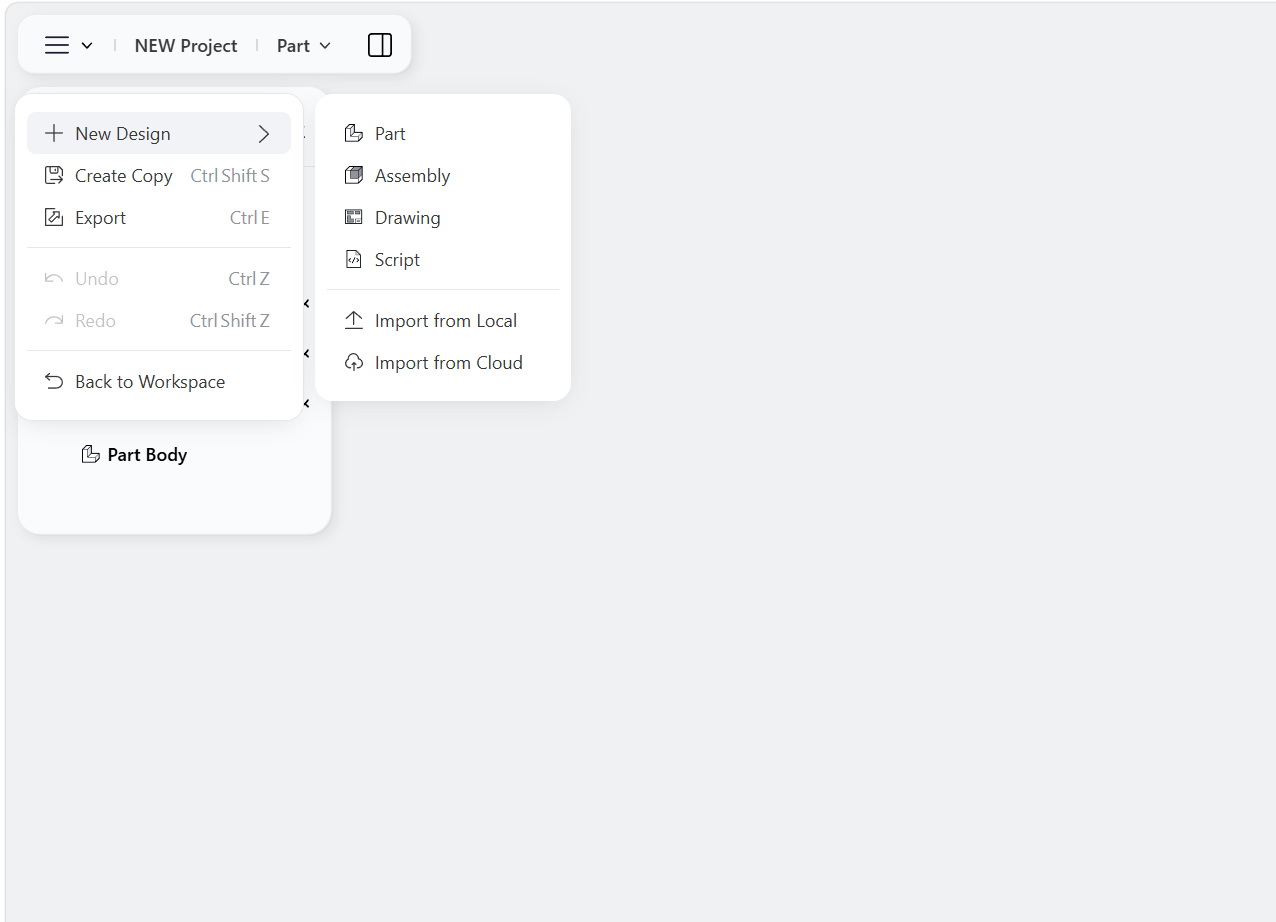

File Operations

The project panel on the left provides quick access to common file operations:

New Design: Create Parts, Assemblies, or Drawings. Local or cloud files can also be imported.
File Management: Create copies or export files for backup and sharing.
Editing Operations: Undo, Redo, and Return to Workspace.

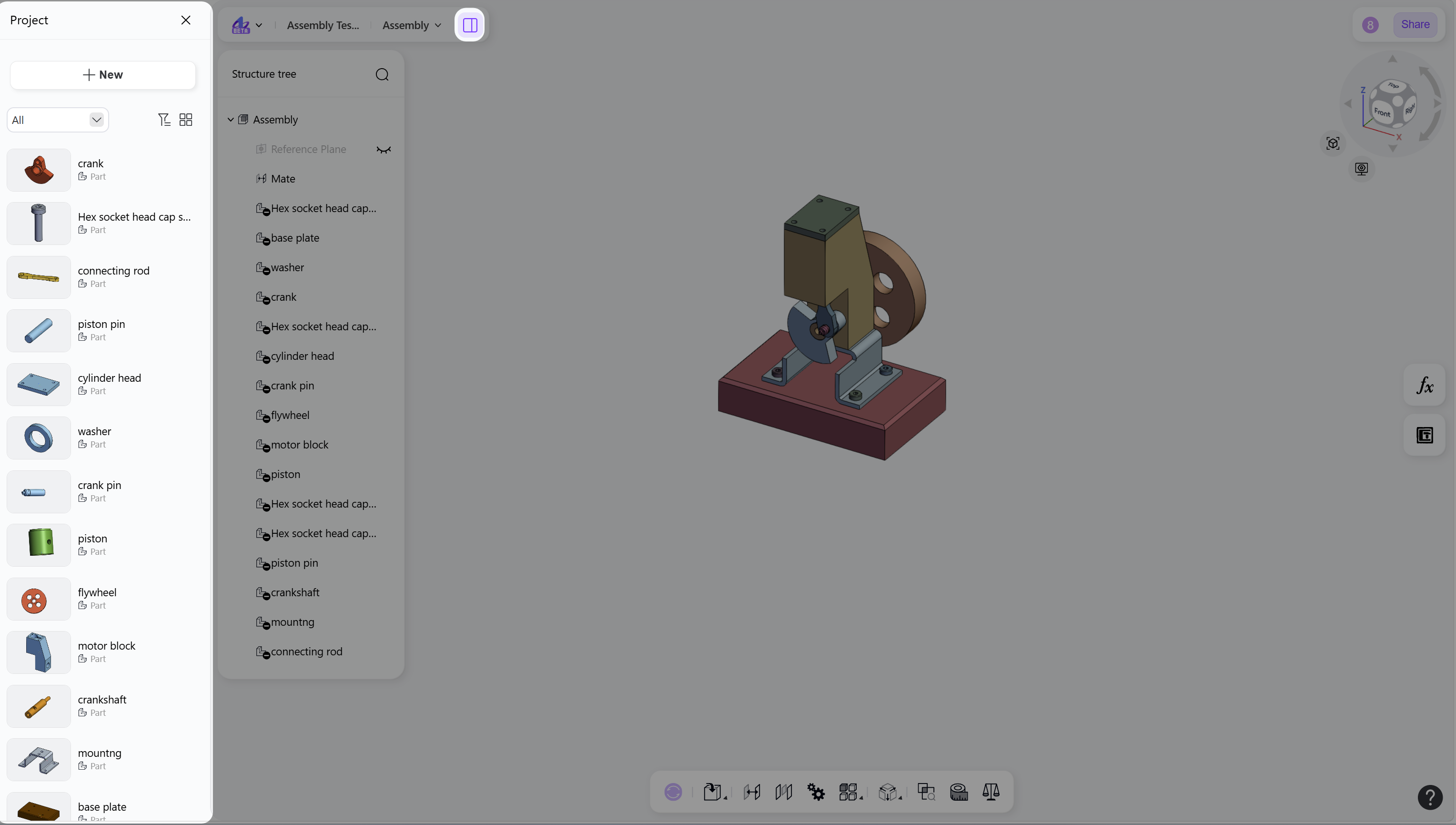

The Project Panel manages all files in the current project, including Parts, Assemblies, and Drawings.

Functions include:

Click the "Project Panel" icon to open the panel on the left.
Click "New" to create files or import documents.
Right-click a file and select "Export" , "Create Copy" , "Rename" or "Delete" .
- Additional options:
- Right-click a Part or Assembly file to create a "Drawing".
- Right-click a Part and select "Create Assembly" to generate an assembly containing that part.

The Structure Tree appears on the left side of the workspace and records the model’s construction history in sequence.

It displays all design elements in the file, such as reference planes, sketches, and features, and provides access to the following functions:

Review Design History: View the complete modeling sequence for easier design tracking.
Edit Features: Double-click a sketch or feature node to reopen and edit its parameters.
Show / Hide Items: Click the visibility icon next to an item to show or hide it.

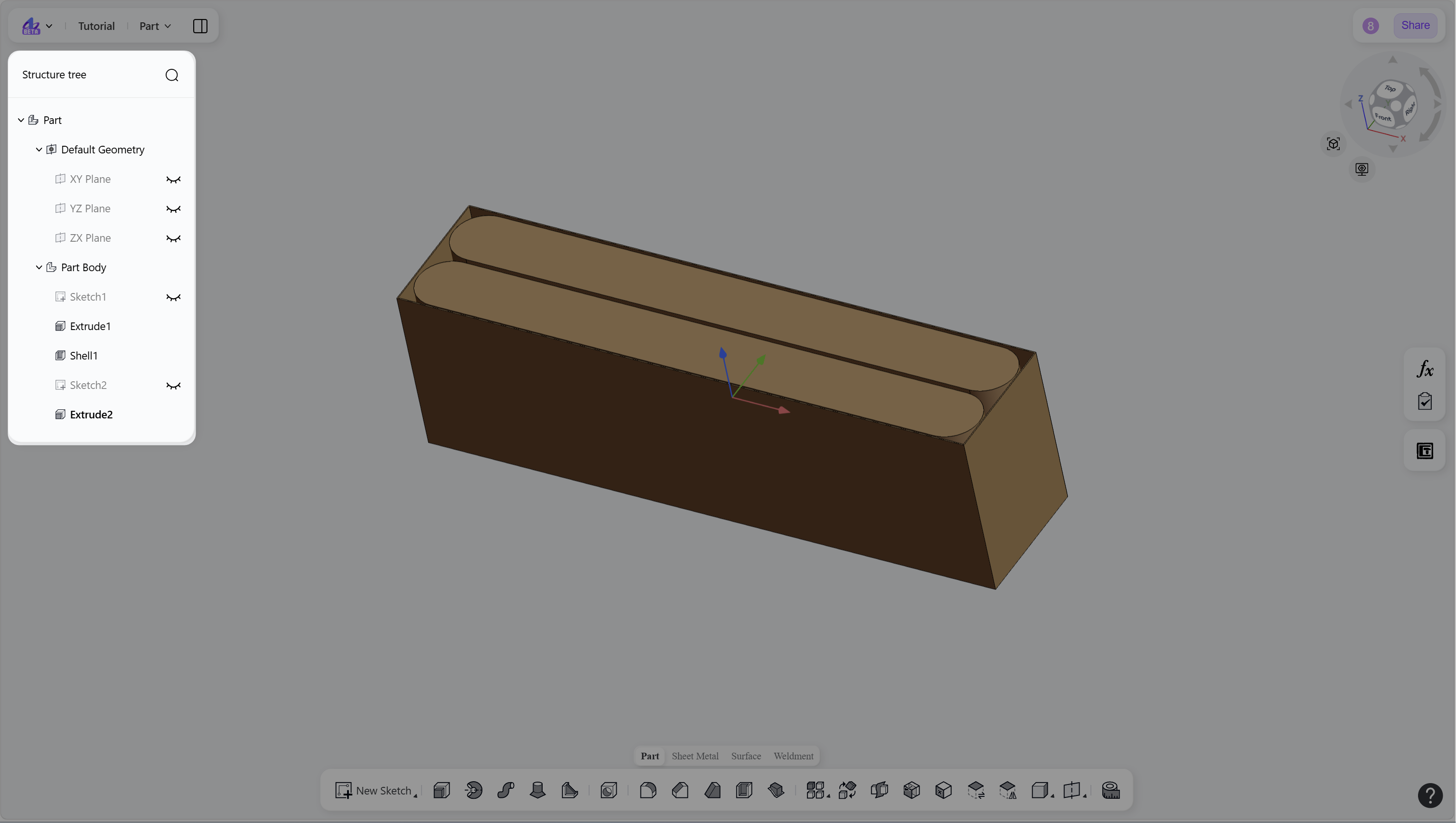

Part - Structure tree

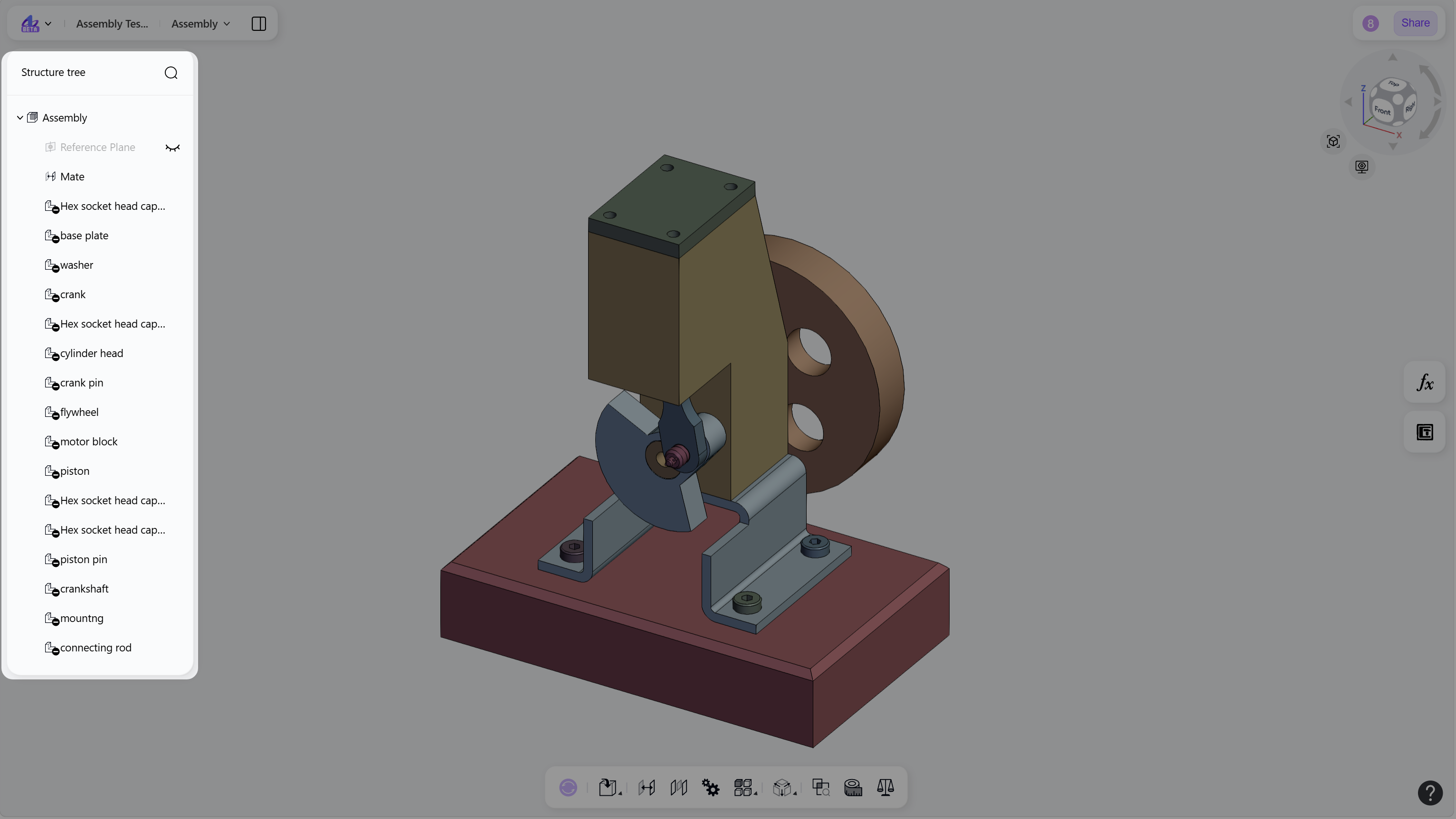

Assembly - Structure Tree

The toolbar is located at the bottom of the workspace and changes automatically based on the current work environment.

Available toolsets include:

Use View Controls to navigate the model in 3D space:

The default view navigation settings is shown as below:

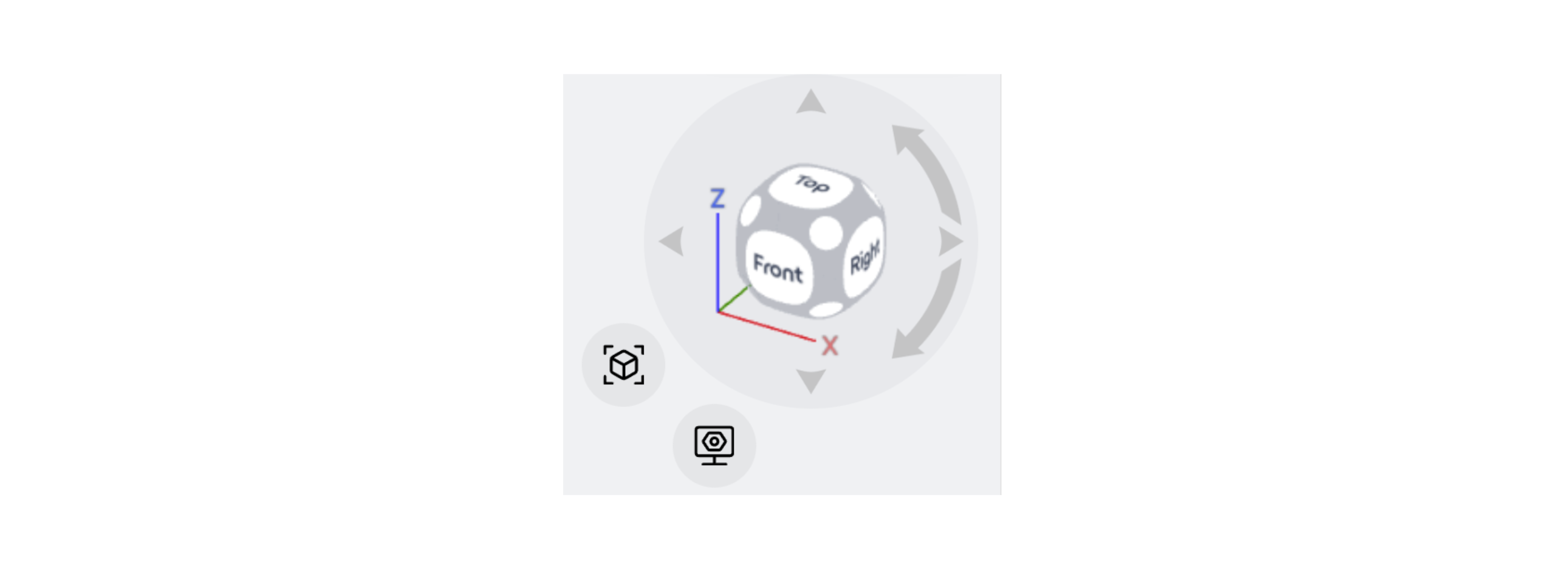

View Navigation: The Navigation Cube is used to quickly switch between standard views. Clicking its face, edge, or corner can switch to the corresponding orientation.

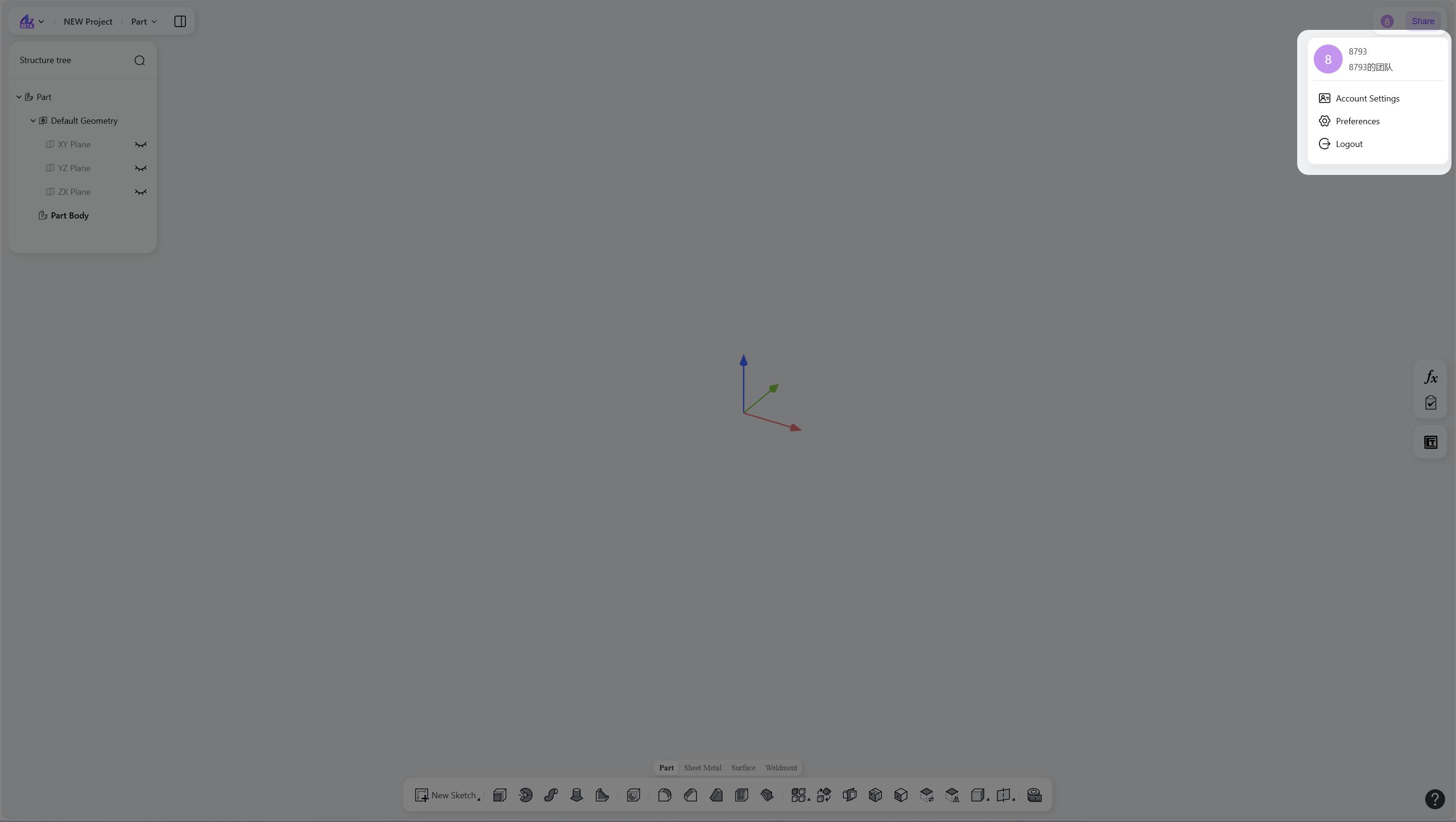

Click the profile image to "Log out" or open "Account Settings".

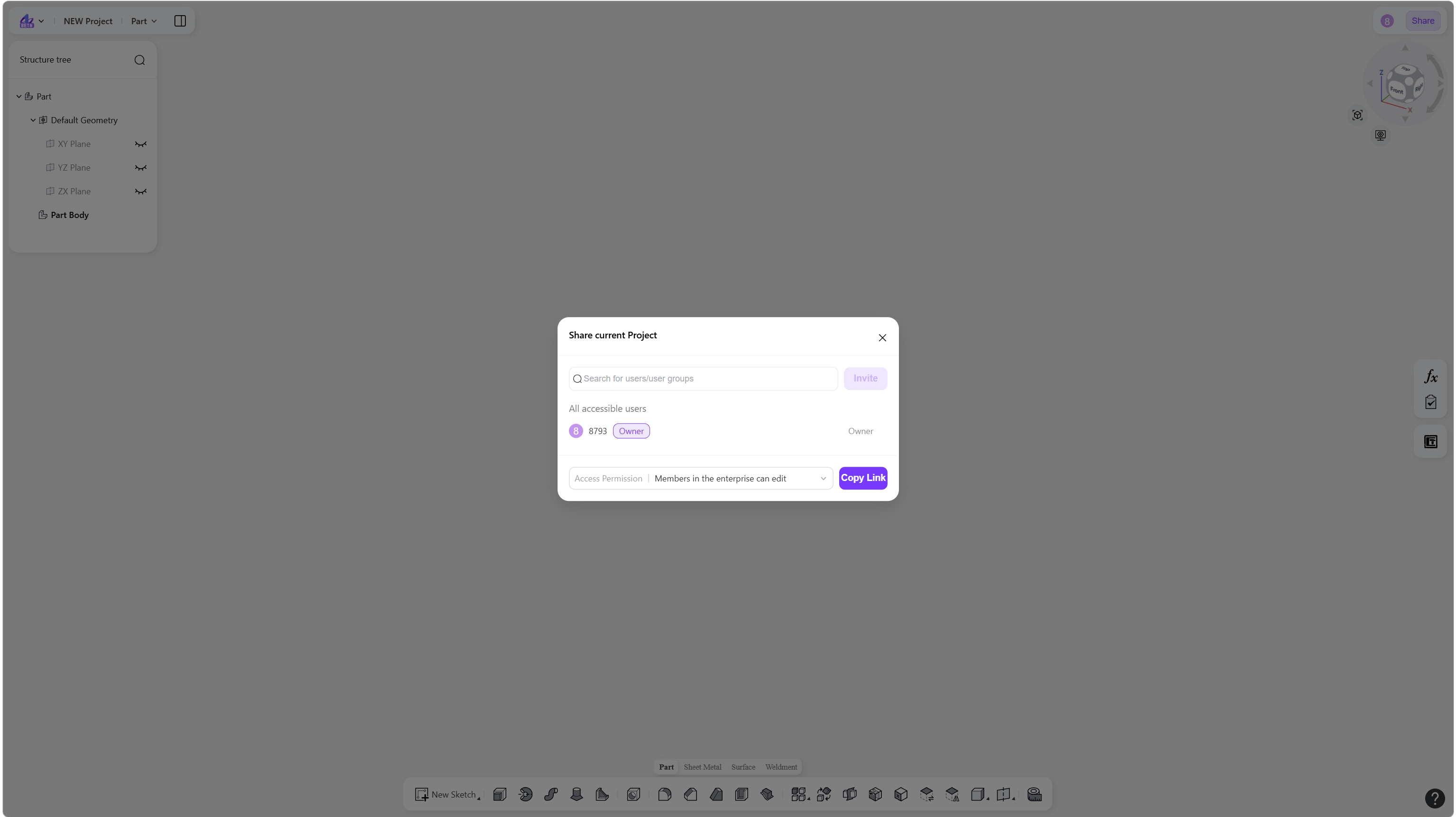

Click "Share" in the upper-right corner to share the current file and manage access permissions.
