Mirror

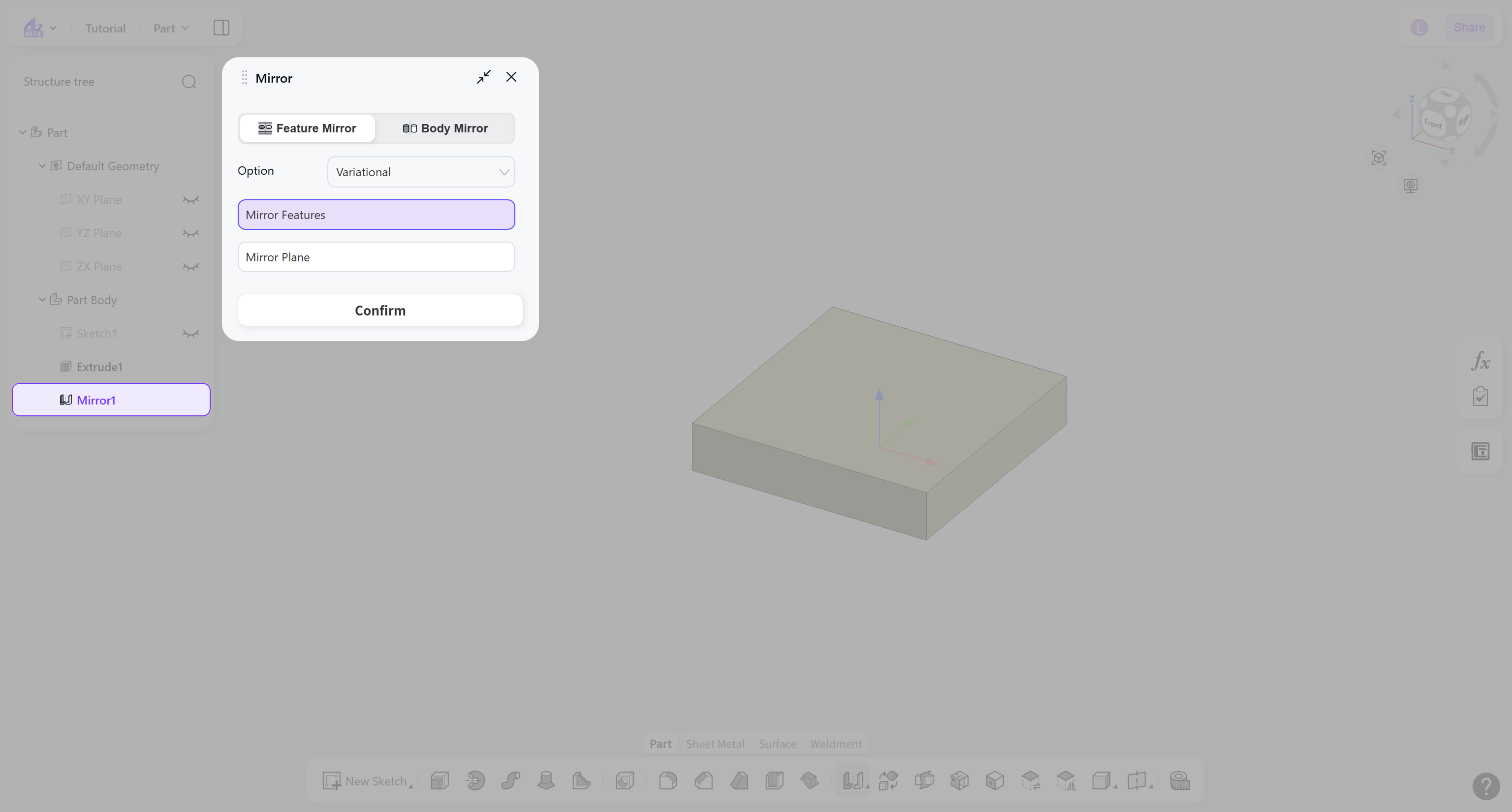

The Mirror tool is used in the Part module to create symmetric copies of existing features or bodies.

Steps:

1. Select the mirror object: "Feature Mirror" or "Body Mirror".

2. Select the mirror elements: "Mirror Features" and "Mirror Plane".

Mirror Object

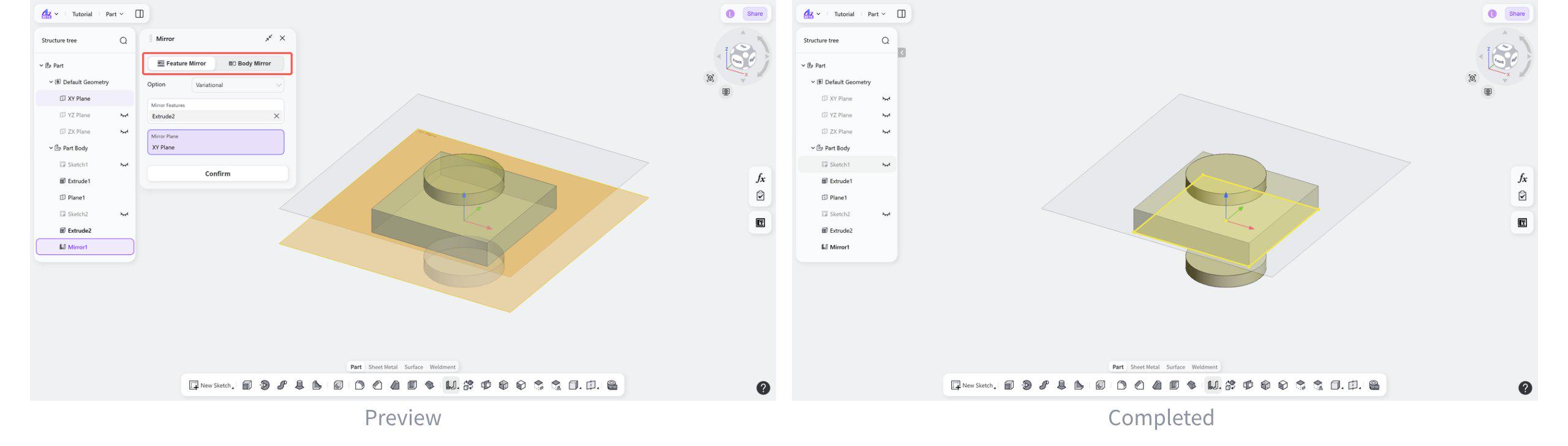

Mirror Object: Feature Mirror

Creates new features by symmetrically copying existing features.

Steps:

1. Select "Feature Mirror".

2. Select the target feature and the mirror plane.

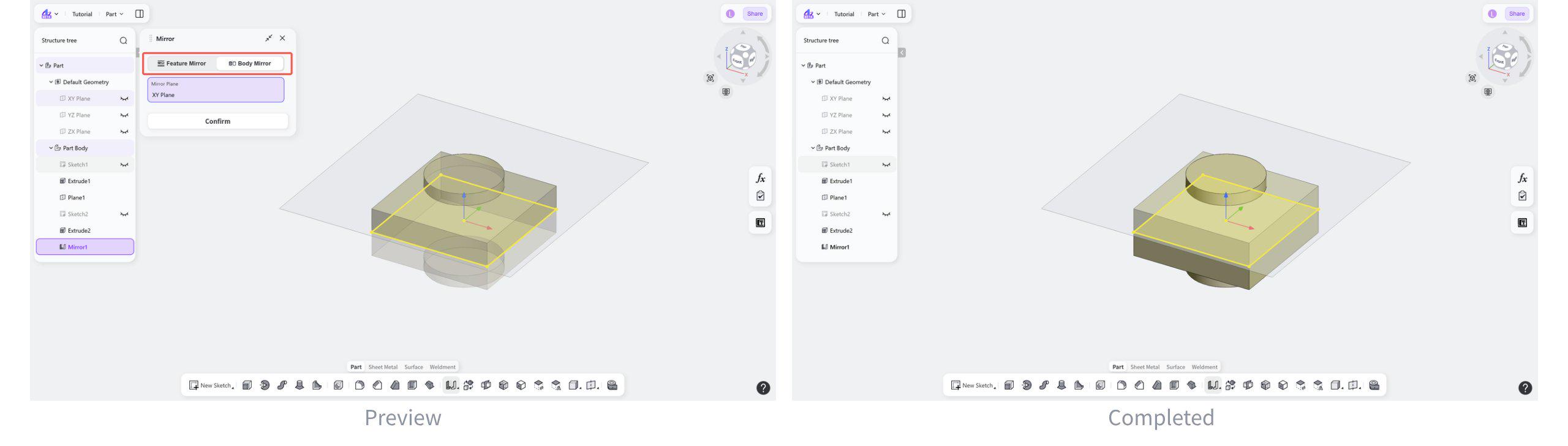

Mirror Object: Body Mirror

Creates new solids by symmetrically copying existing solids.

Steps:

1. Select "Body Mirror".

2. Select the target solid and the mirror plane.
