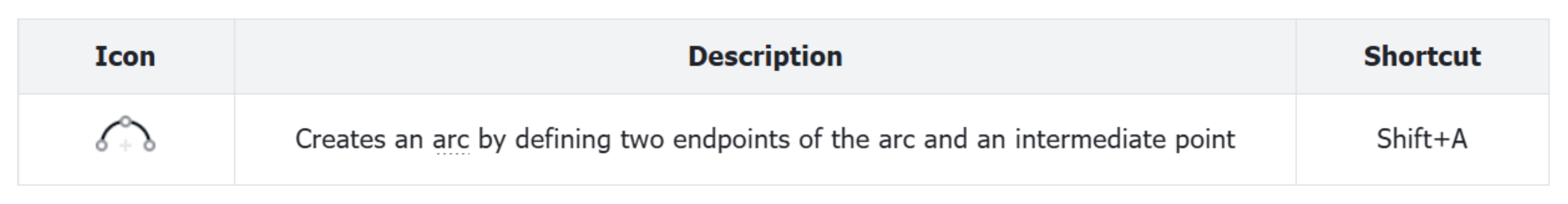

3-Point Arc

Steps

1. Hover over the "Arc" icon in the toolbar.

2. Click the "3-Point Arc" to enter 3-point Arc mode.

3. Create a 3-point arc:

   1. Move the cursor and left-click to define the first endpoint of the arc.

   2. Move the cursor and left-click again to define the second endpoint of the arc.

   3. Left-click to define the intermediate point on the arc.

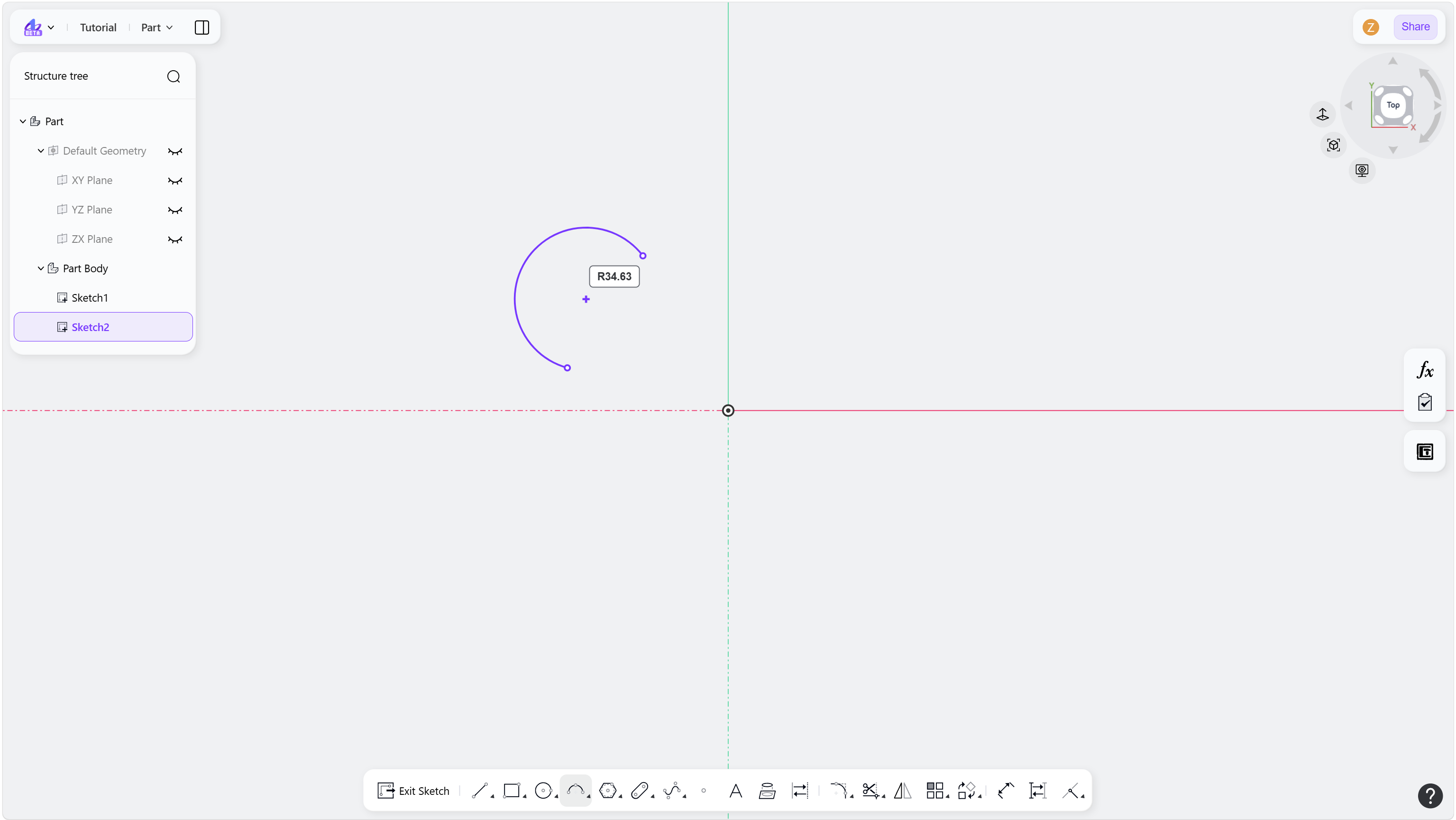

   4. (Optional) Enter a radius value and press Enter.

4. Right-click or press Esc to exit.

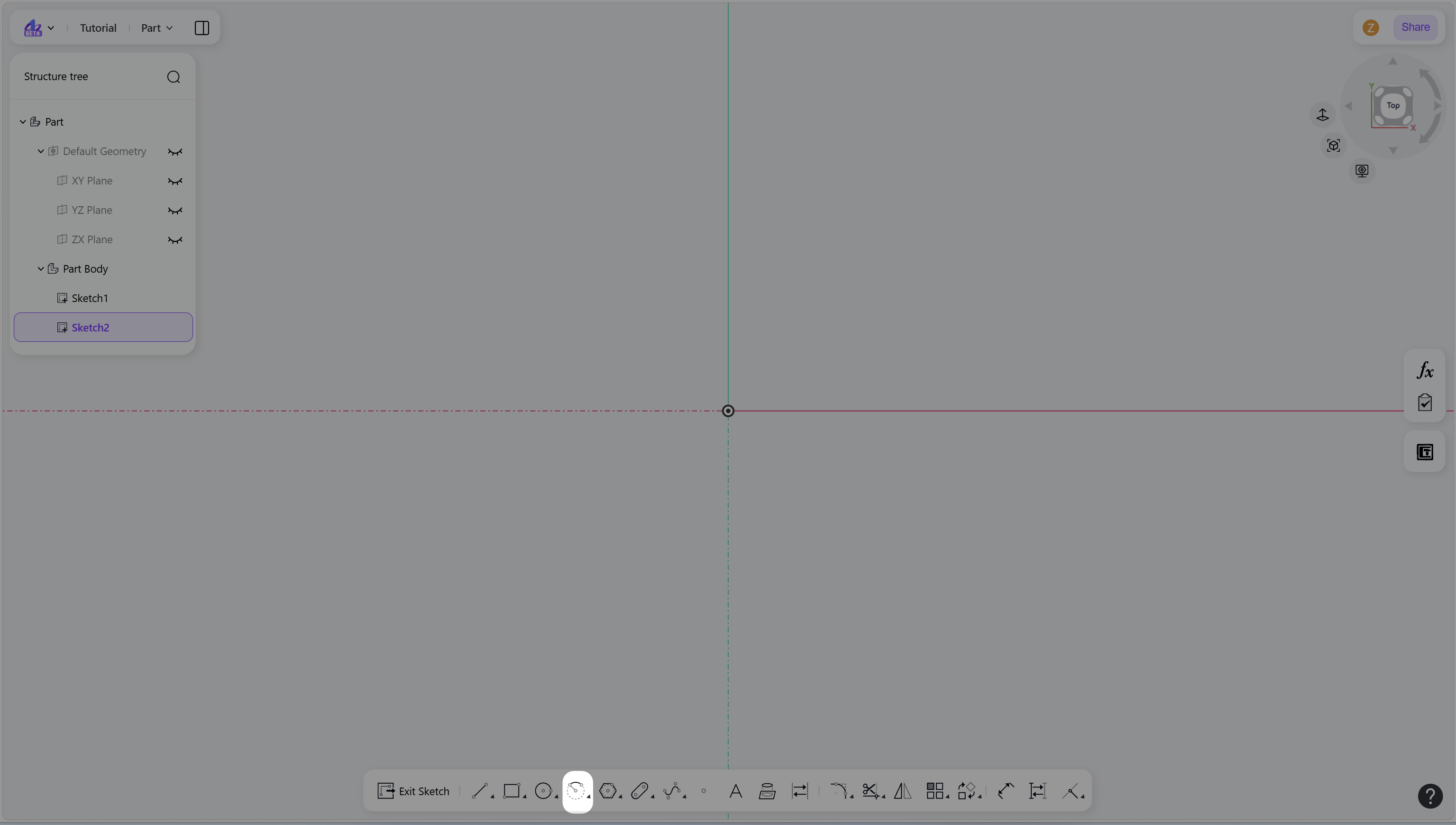

Step 1 - Hover over the "Arc" icon in the toolbar:

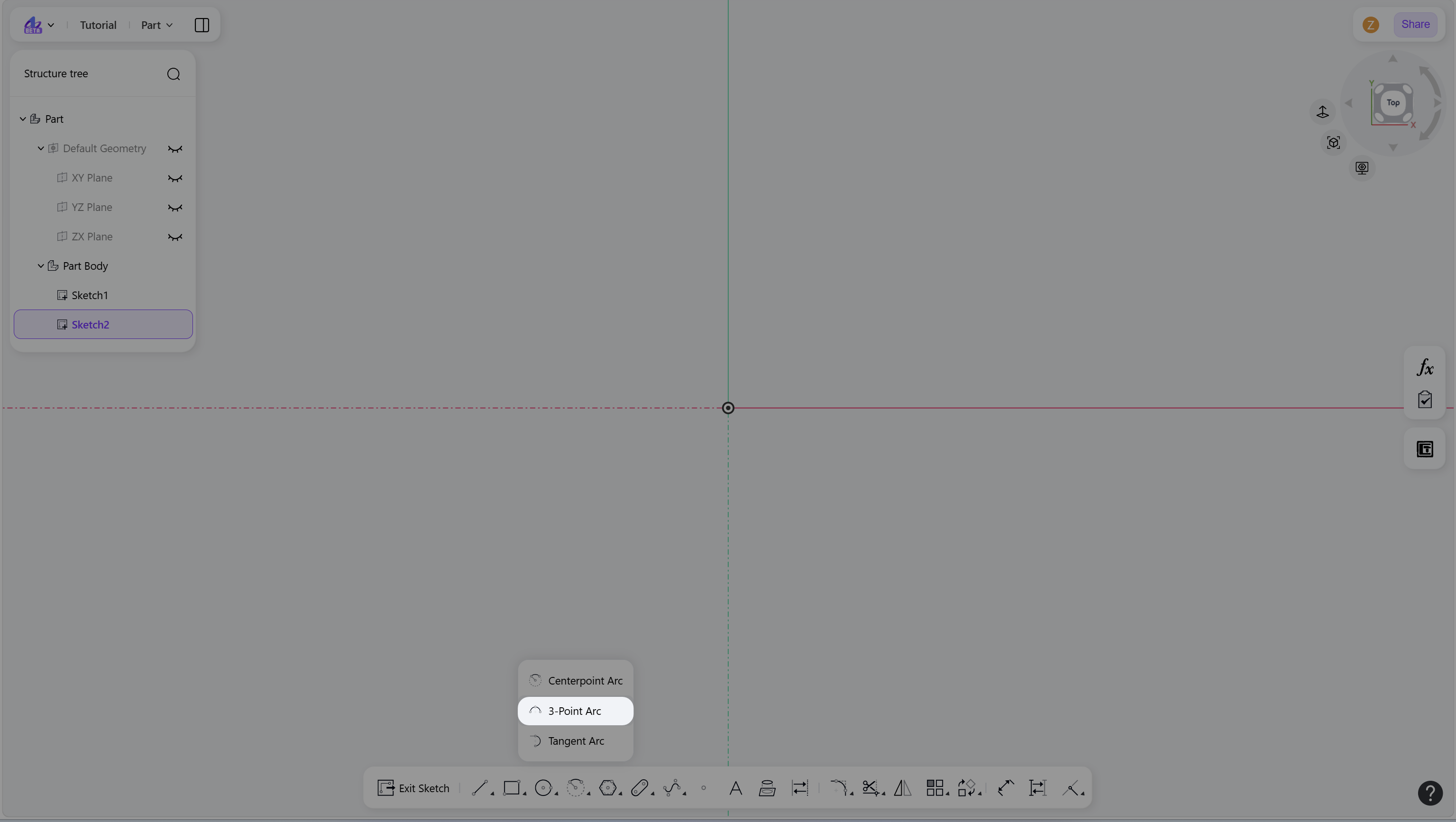

Step 2 - Click the "3-Point Arc" to enter 3-point Arc mode:

Step 3 - Left-click to define the first endpoint of the arc:

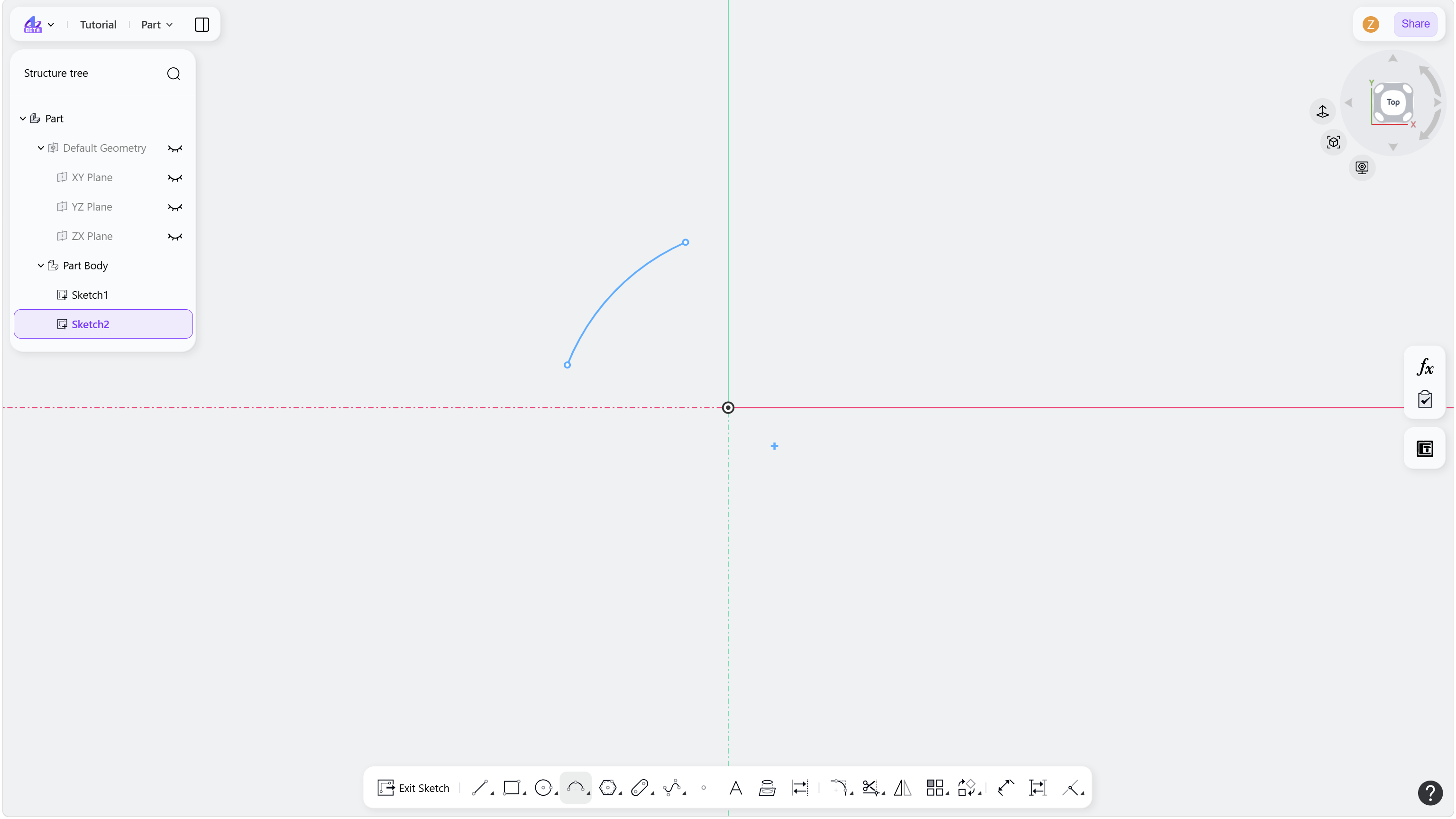

Step 4 - Left-click to define the second endpoint of the arc:

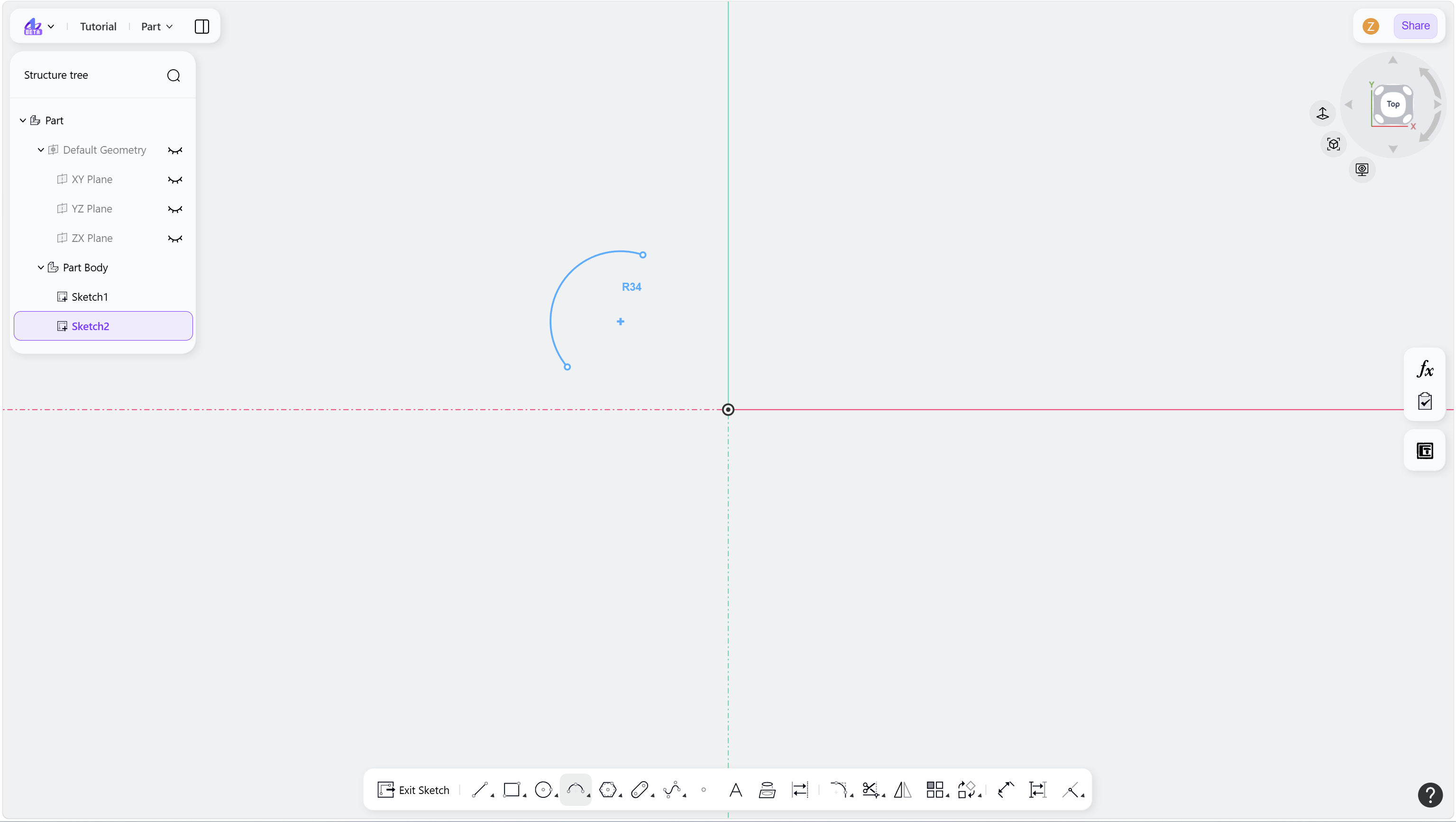

Step 5 - Left-click to define the last point on the arc:
