3-Point Circle

The 3-Point Circle tool creates a circle passing through three points on its circumference. It is useful when you need to position a circle through several reference points.

Steps

1. Hover over the "Circle" icon in the toolbar.

2. Click the "3-Point Circle" to enter 3-Point Circle mode.

3. Create a 3-point circle:

   1. Left-click to define three points on the circumference.

   2. (Optional) Enter a value and press Enter to apply diameter constraint.

4. Right-click or press Esc to exit.

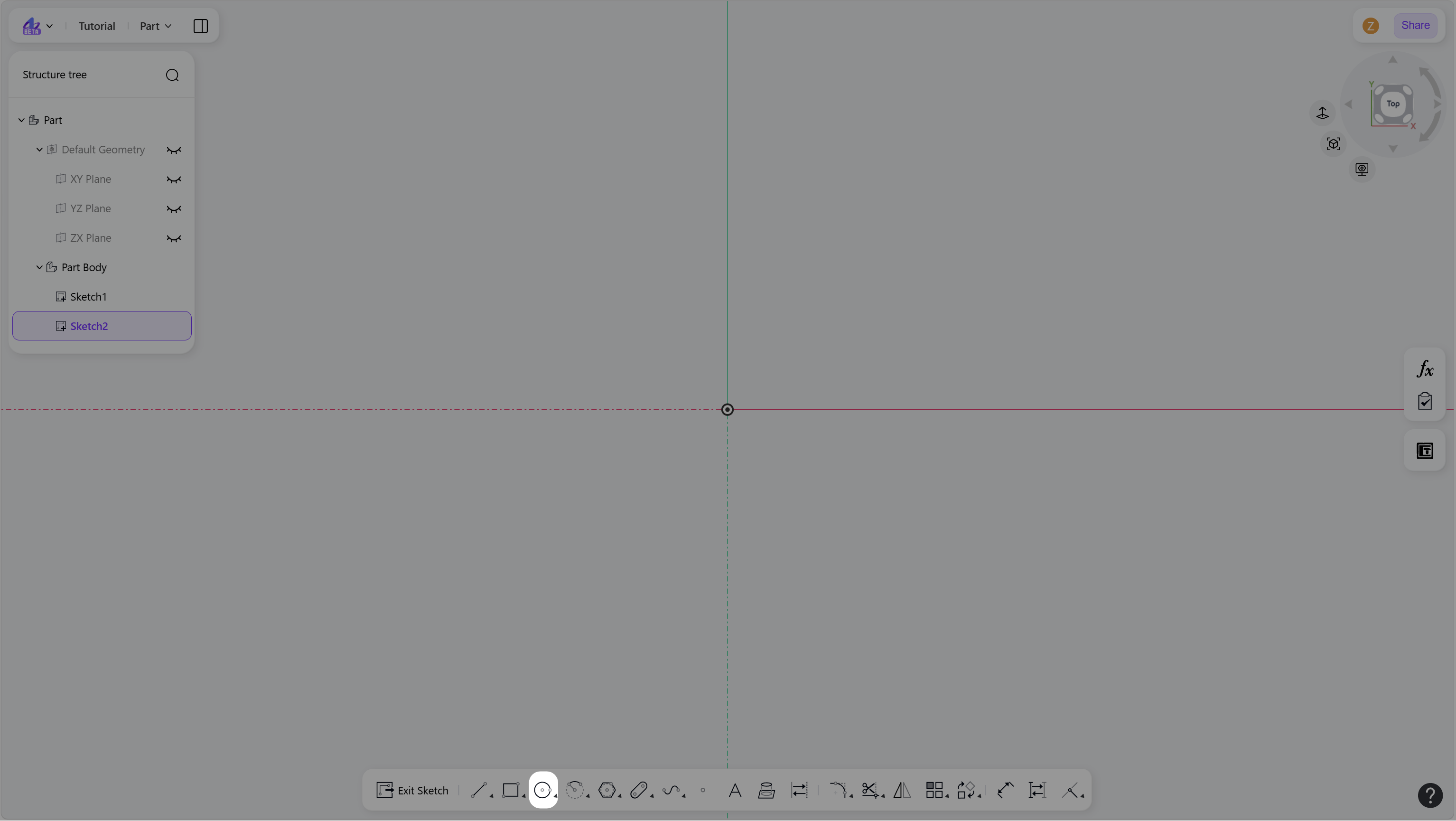

Step 1 - Hover over the "Circle" icon in the toolbar:

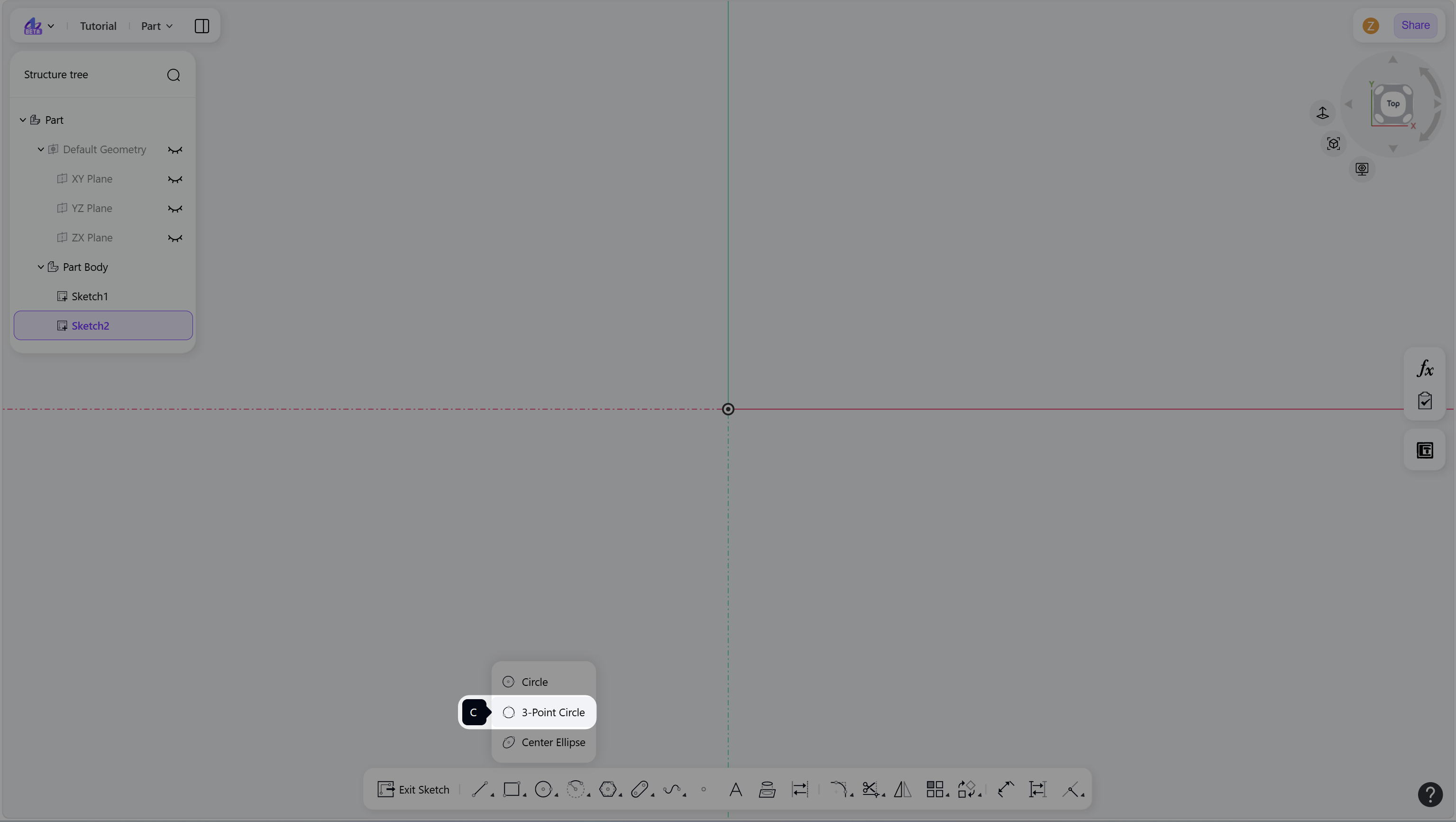

Step 2 - Click the "3-Point Circle" to enter 3-Point Circle mode:

Step 3.1 - Left-click to define the first point on the circumference:

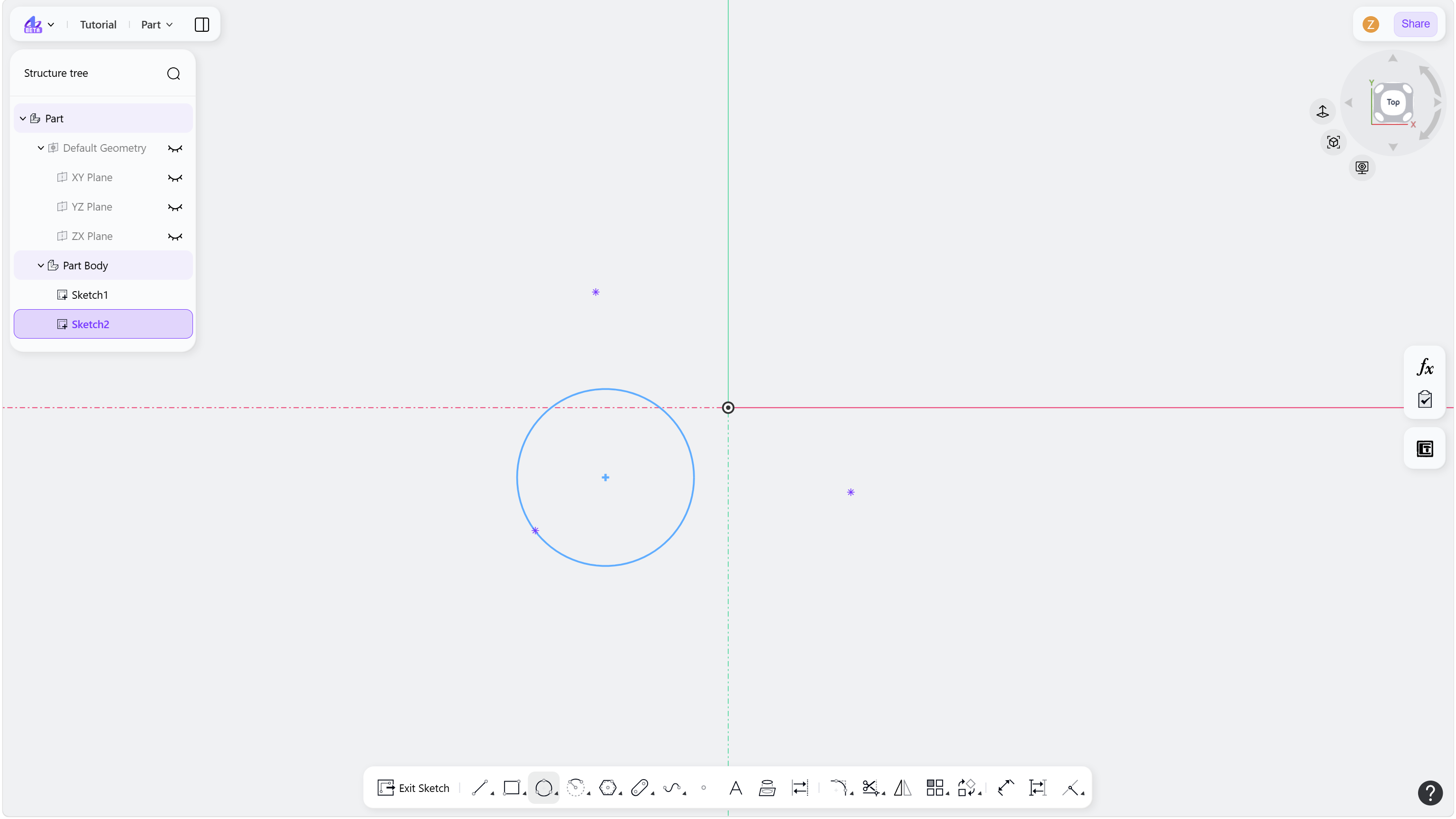

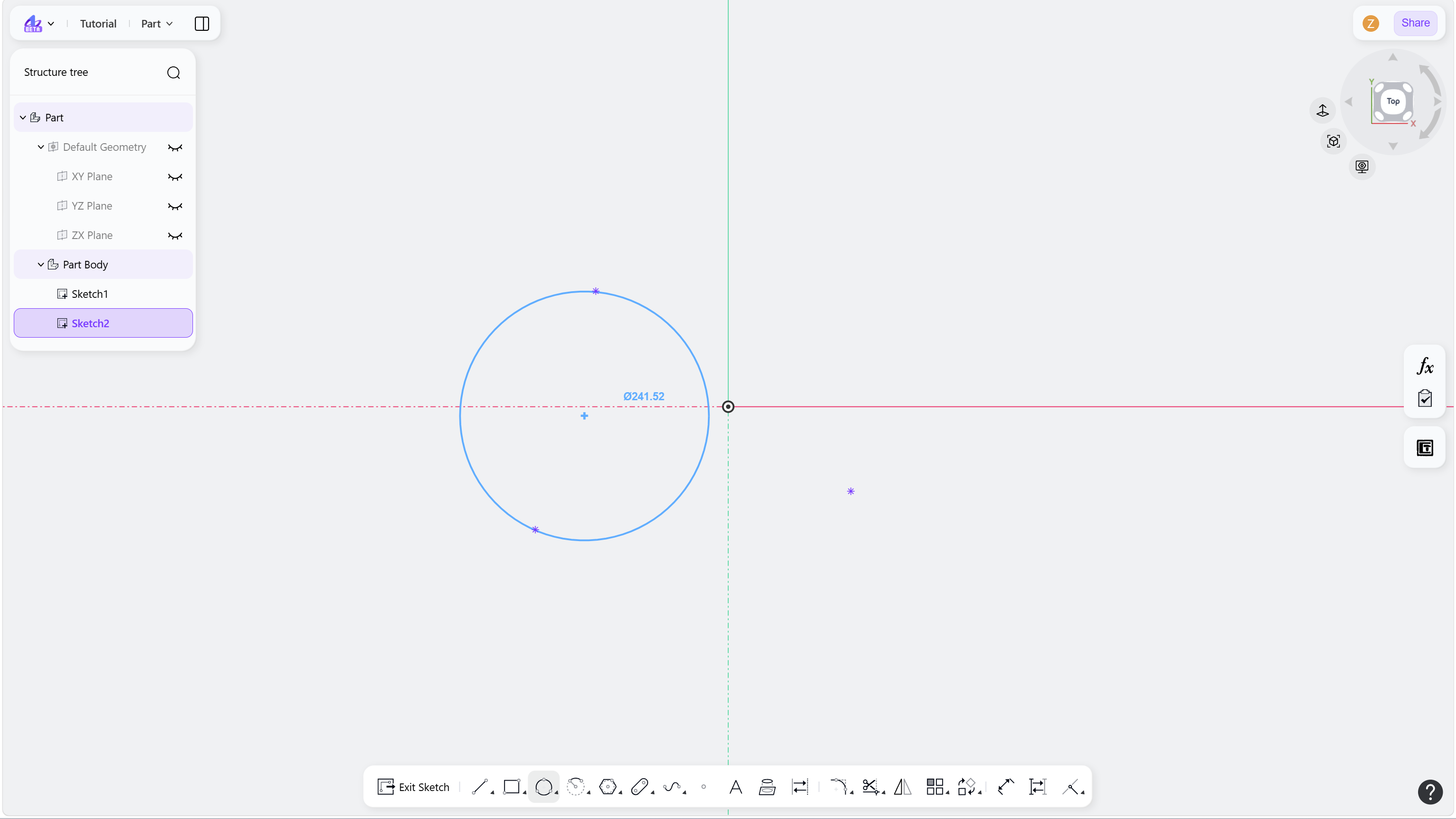

Step 3.2 - Left-click to define the second point on the circumference:

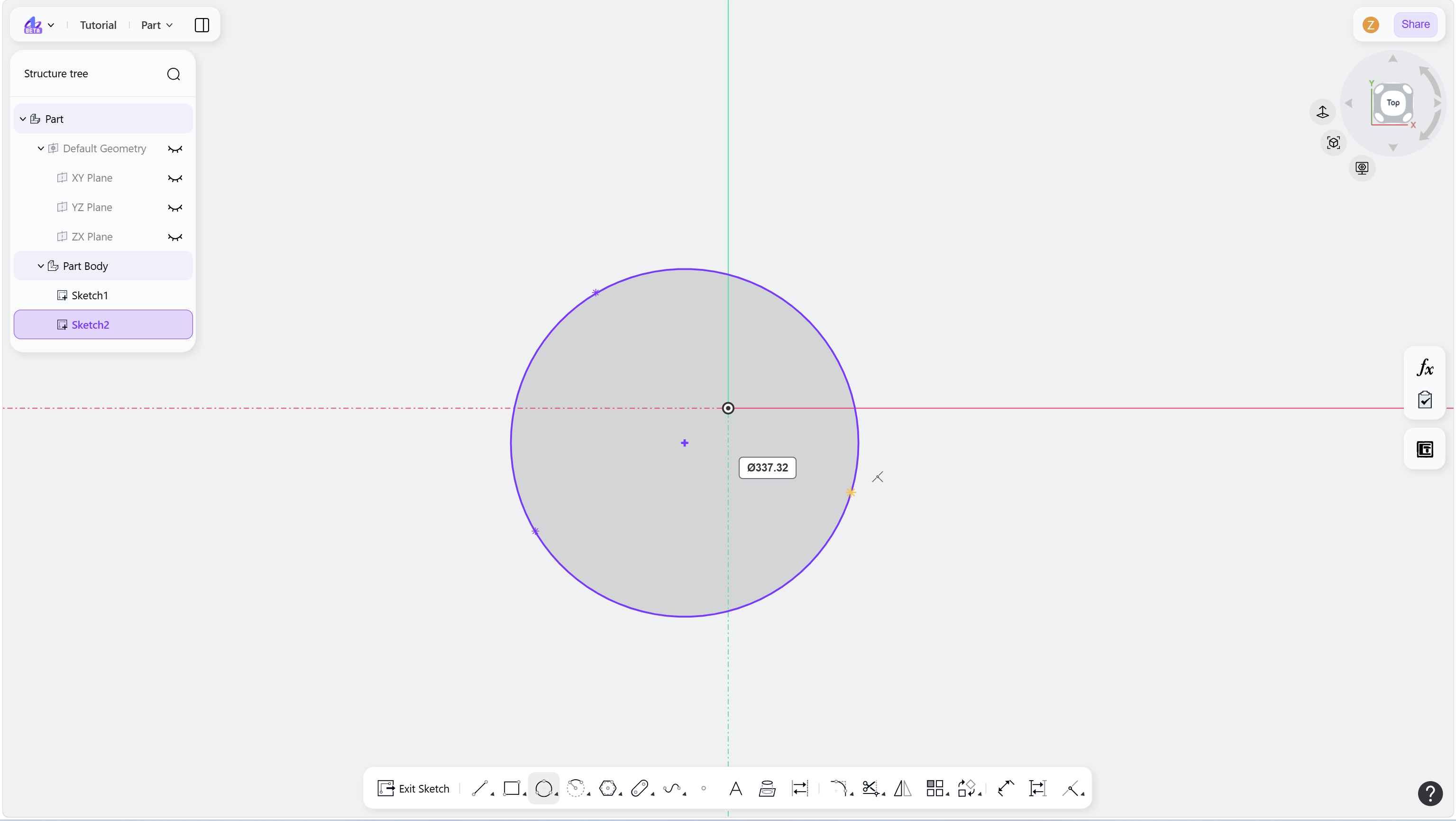

Step 3.3 - Left-click to define the third point on the circumference:
