Isolated Display

The Isolated Display function shows only the selected component while temporarily hiding all other components in the assembly. It is typically used to improve focus and simplify navigation in complex assembly environments.

Enter Isolated Display Mode

Isolated Display mode can be activated using either of the following methods:

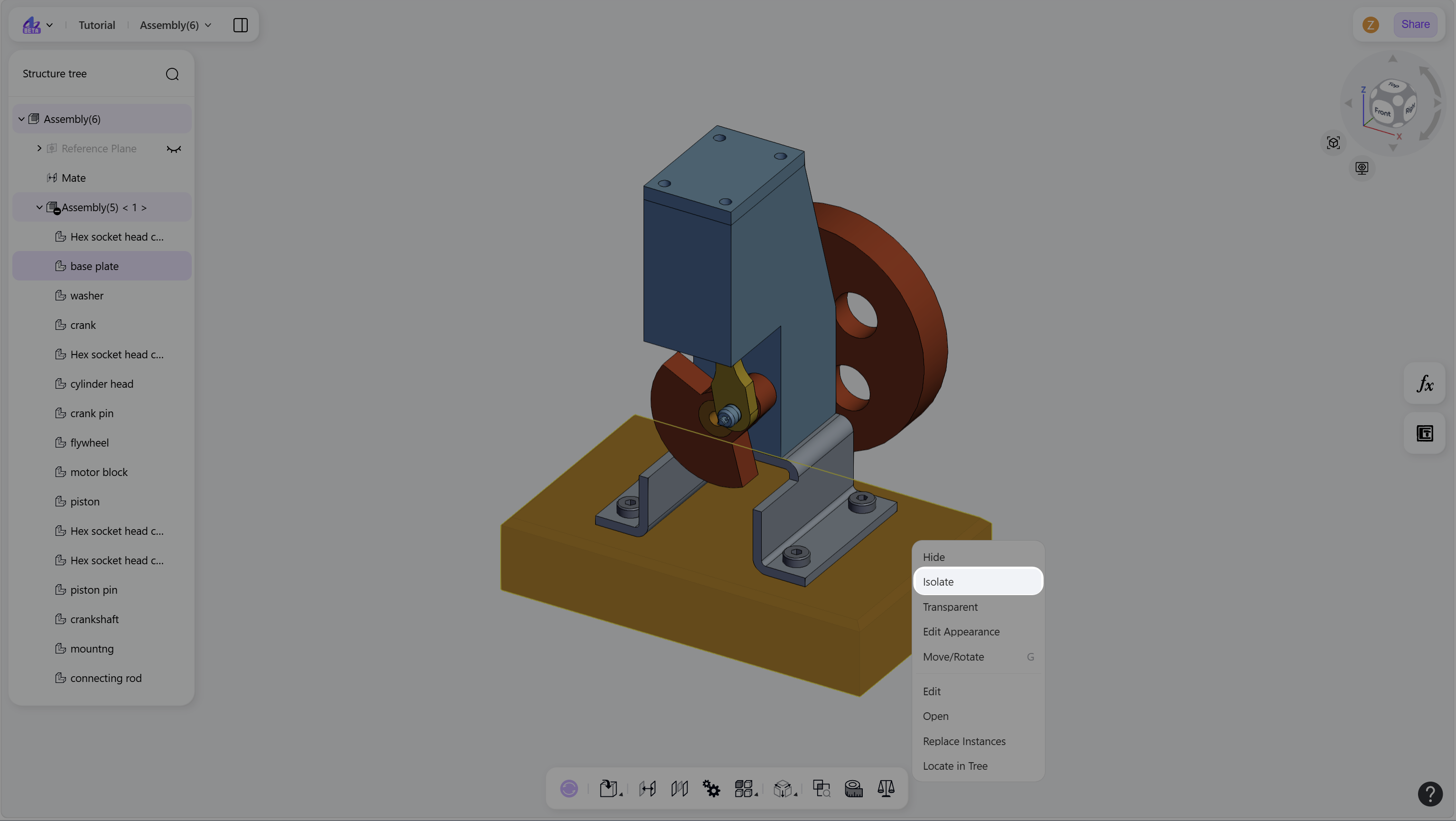

• In the graphics area, select a component, right-click, and choose "Isolate" from the context menu.

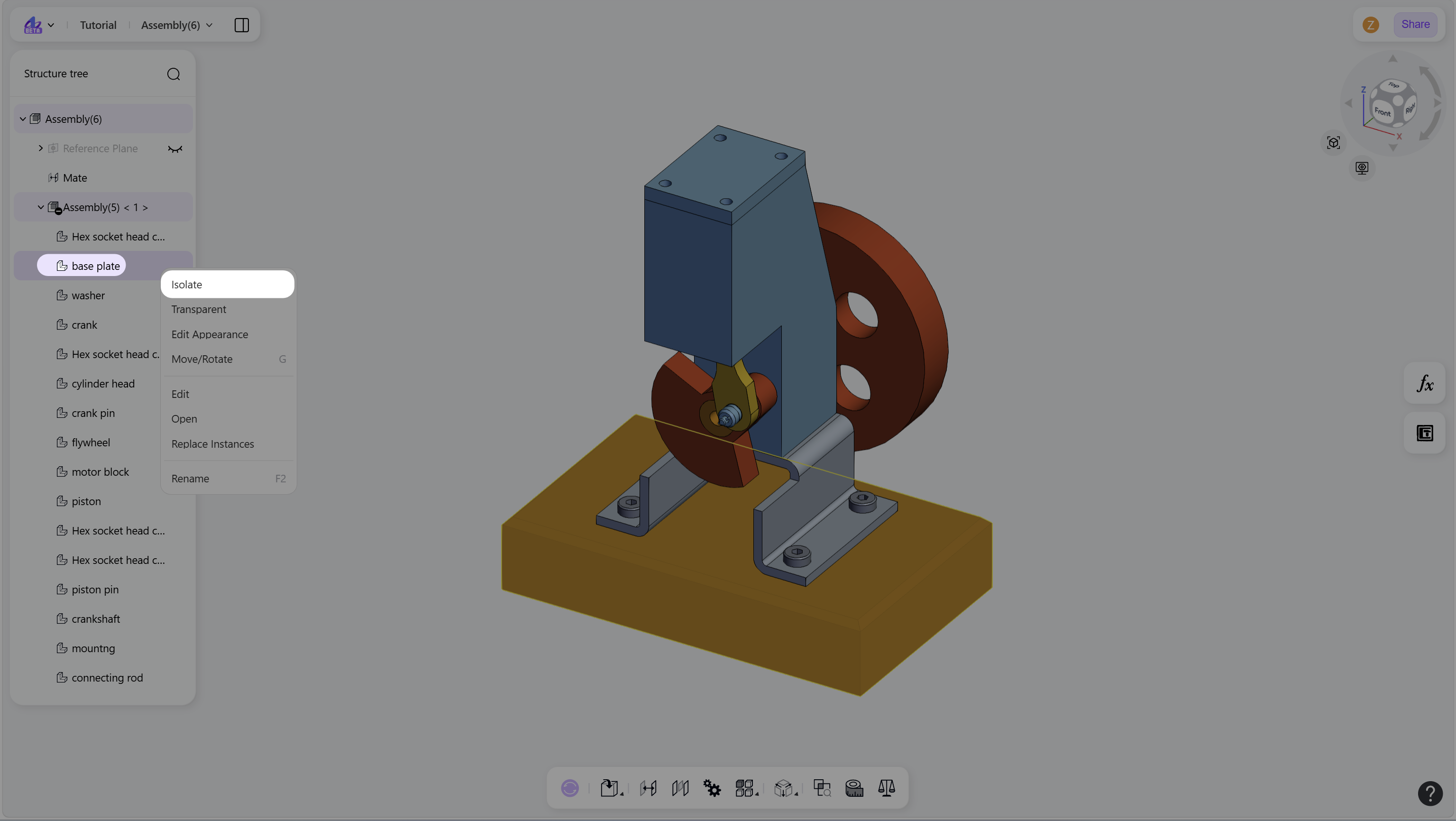

• Select the component node in the structure tree, right-click it, and select "Isolate".

Exit Isolated Display Mode

Isolated Display mode can be exited using any of the following methods:

• In the graphics area, select the isolated component, right-click, and choose "Exit Isolated Display".

• In the structure tree, right-click the component node and select "Exit Isolated Display".

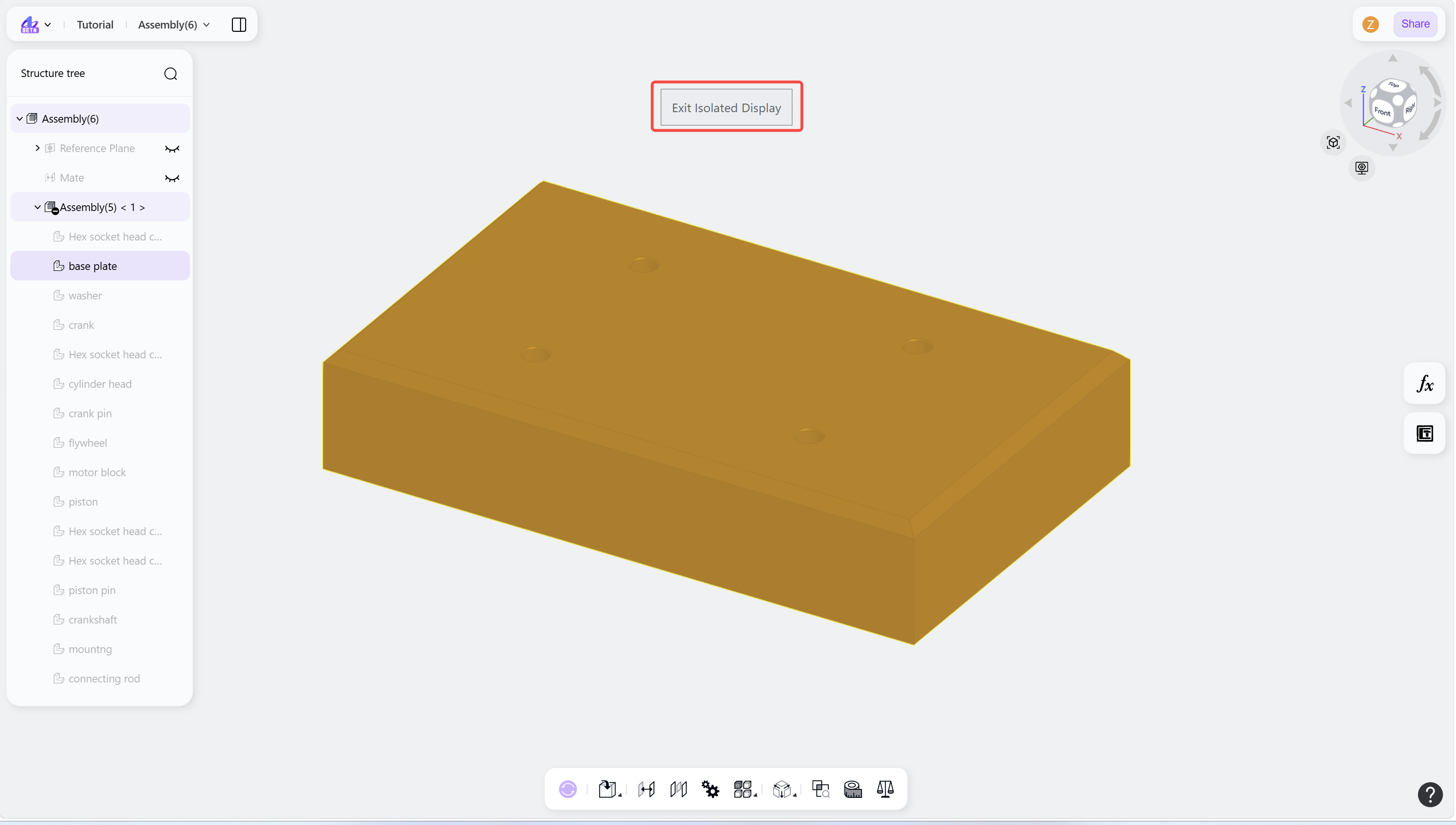

• Click the "Exit Isolated Display" button at the top of the interface.
