Transparent Display

The Transparent command sets selected components to a semi-transparent state, allowing improved visibility of underlying geometry such as points, edges, and faces. It is commonly used to facilitate selection and inspection of hidden or internal features.

Make Components Transparent

Transparency can be applied using either of the following methods:

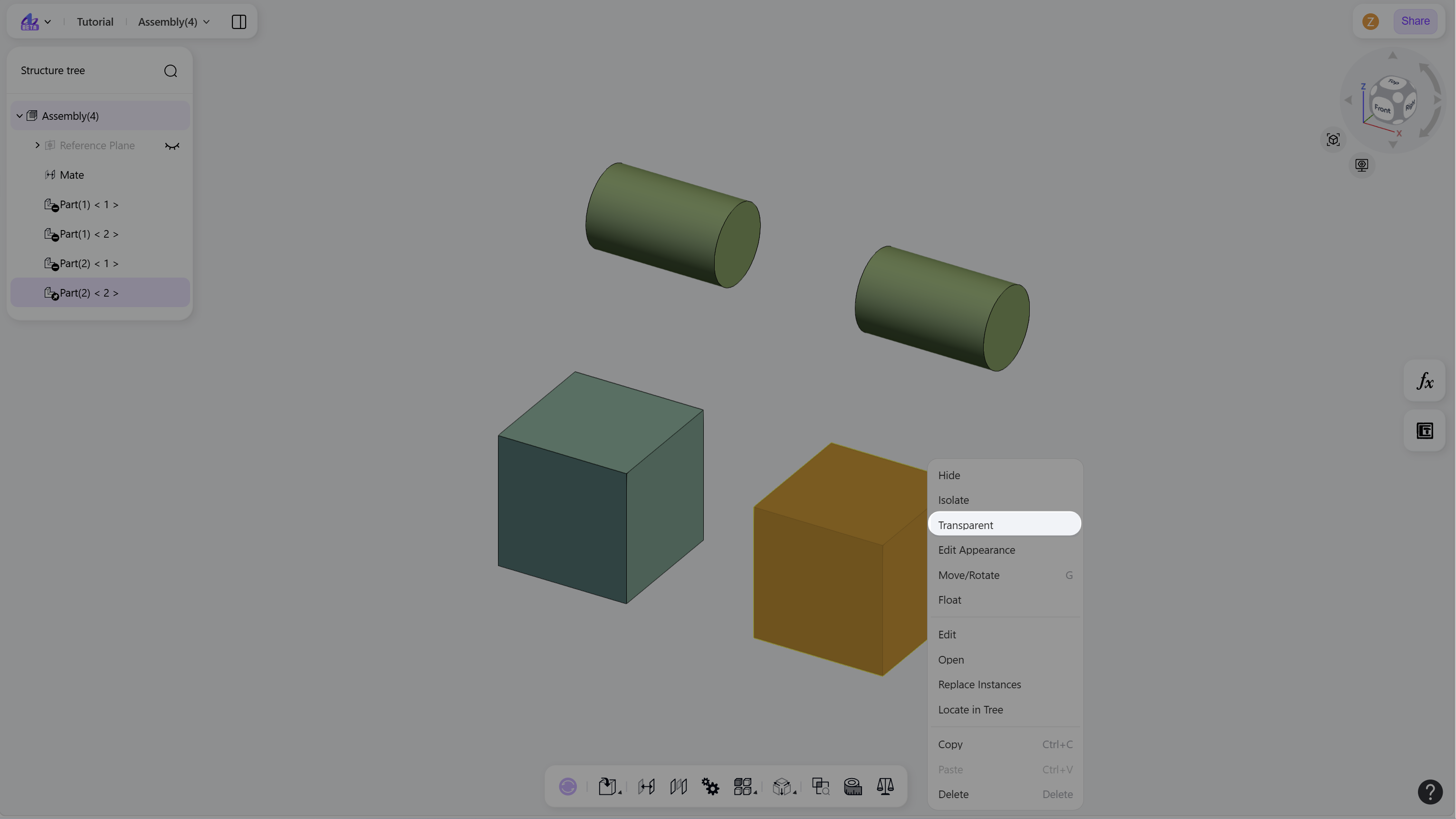

• Select the component in the graphics area, right-click it, and choose "Transparent" from the context menu.

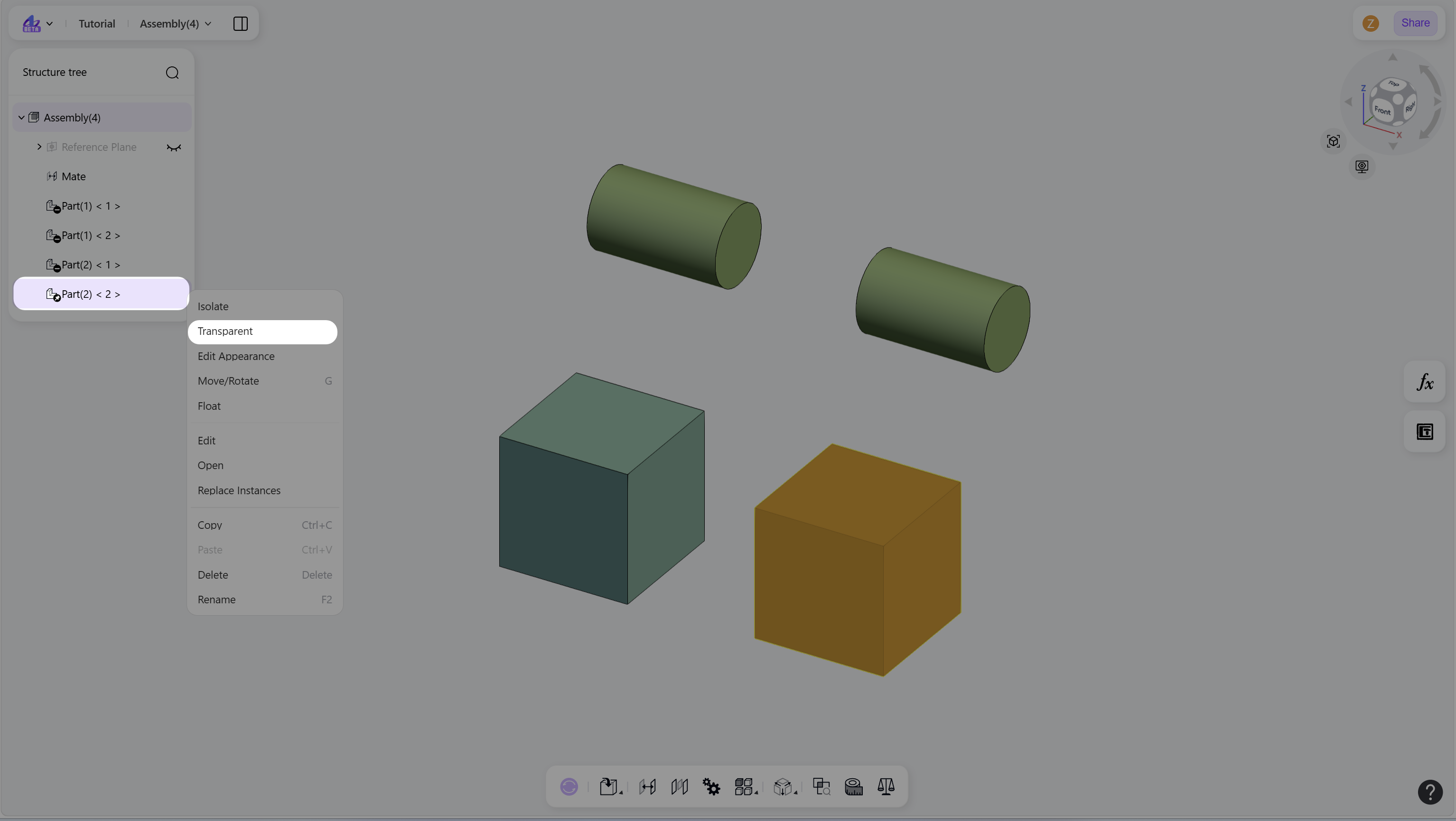

• Select the component node in the structure tree, right-click it, and select "Transparent".

Restore Opaque Display

Components can be restored to full opacity using either of the following methods:

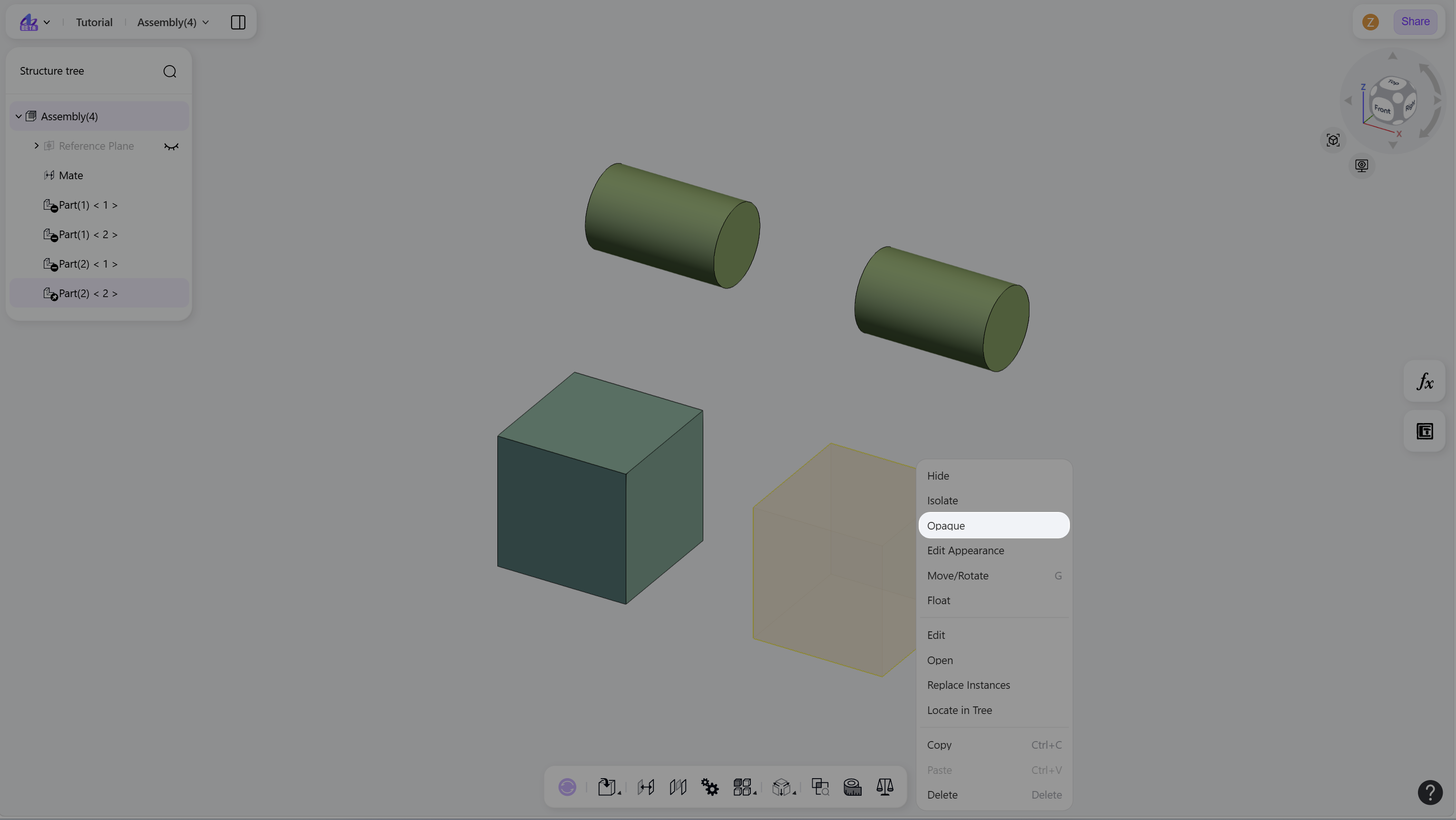

• Select the component in the graphics area, right-click it, and select "Opaque" from the context menu.

• Select the component node in the structure tree, right-click it, and select "Opaque".

Notes

• Transparent components allow selection and inspection of underlying geometry, including points, edges, and faces.
