Toggle Driven/Driving Dimension

The Toggle Driven/Driving Dimension function is used to flexibly adjust dimensional constraint attributes in the 3D CAD sketch module. It allows quick conversion between driving and driven states for the same dimension.

• Driving state: The dimension value acts as an active control parameter. Modifying it directly drives synchronous deformation of sketch geometry and associated solid features.

• Driven state: The dimension serves only as a reference, reflecting current geometric parameters. Its value updates passively with sketch changes and cannot be edited manually.

Steps

1. Click the "Toggle Driven/Driving Dimension" icon in the toolbar.

2. Select a driving dimension to switch it to a driven dimension.

3. To switch back: click the icon again, then select a driven dimension to convert it to a driving dimension.

4. Continue selecting other dimensions as needed.

5. Right-click or press Esc to exit.

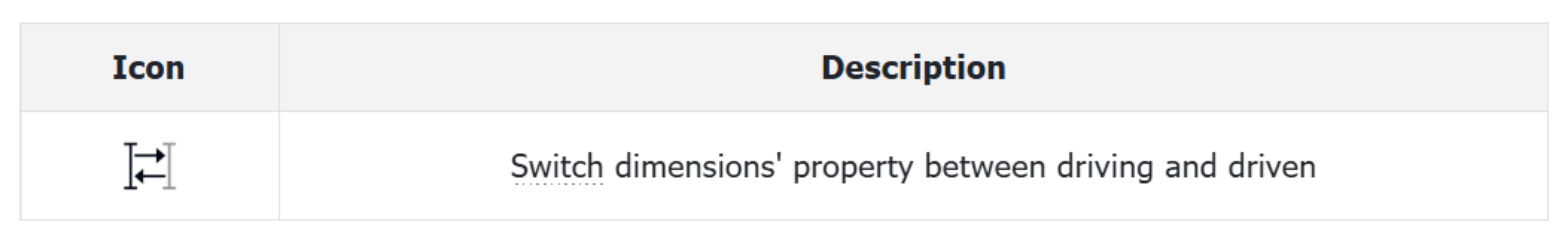

Step 1 - Click the "Toggle Driven/Driving Dimension" icon in the toolbar:

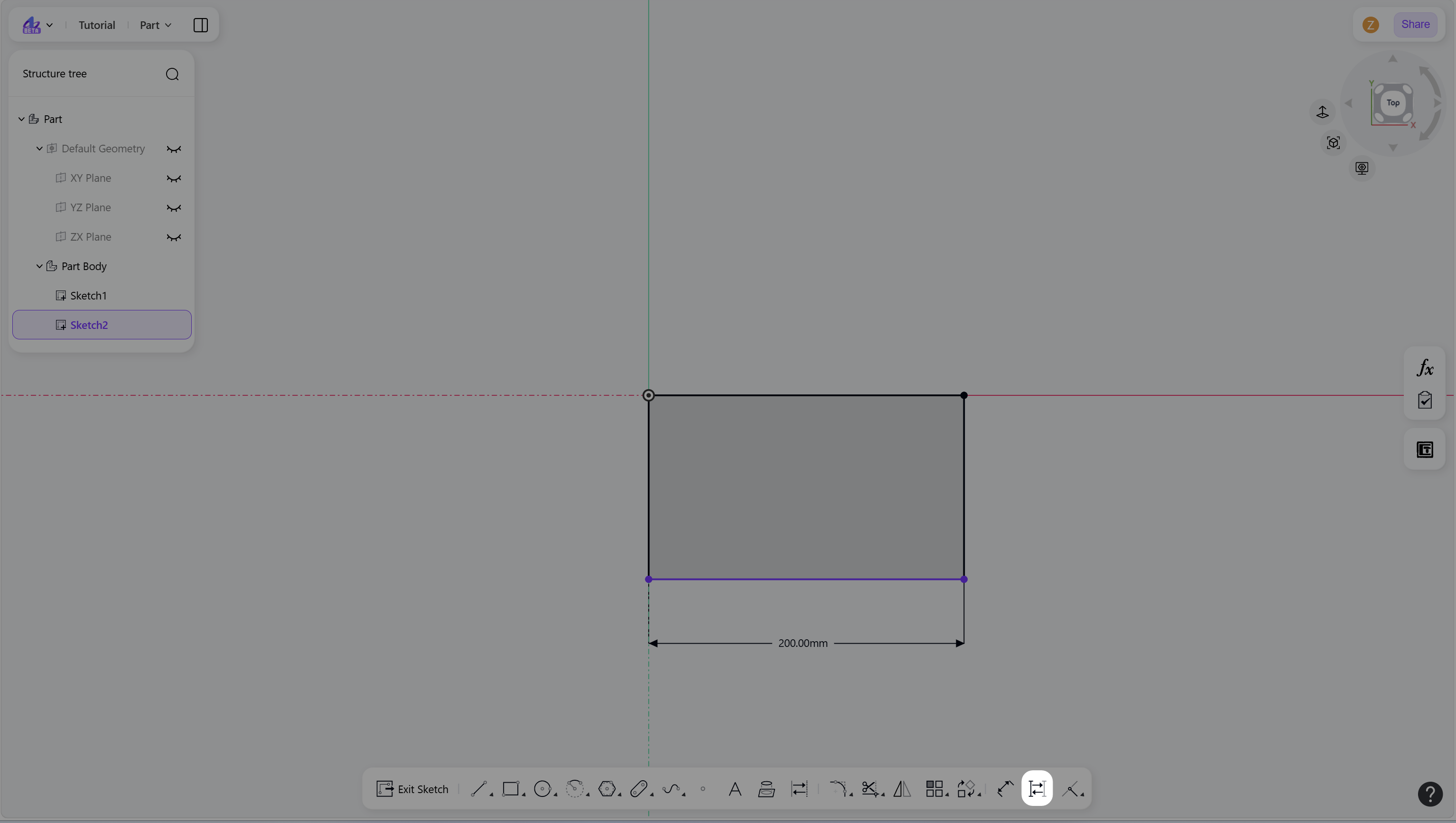

Step 2-1 Select one driving dimension:

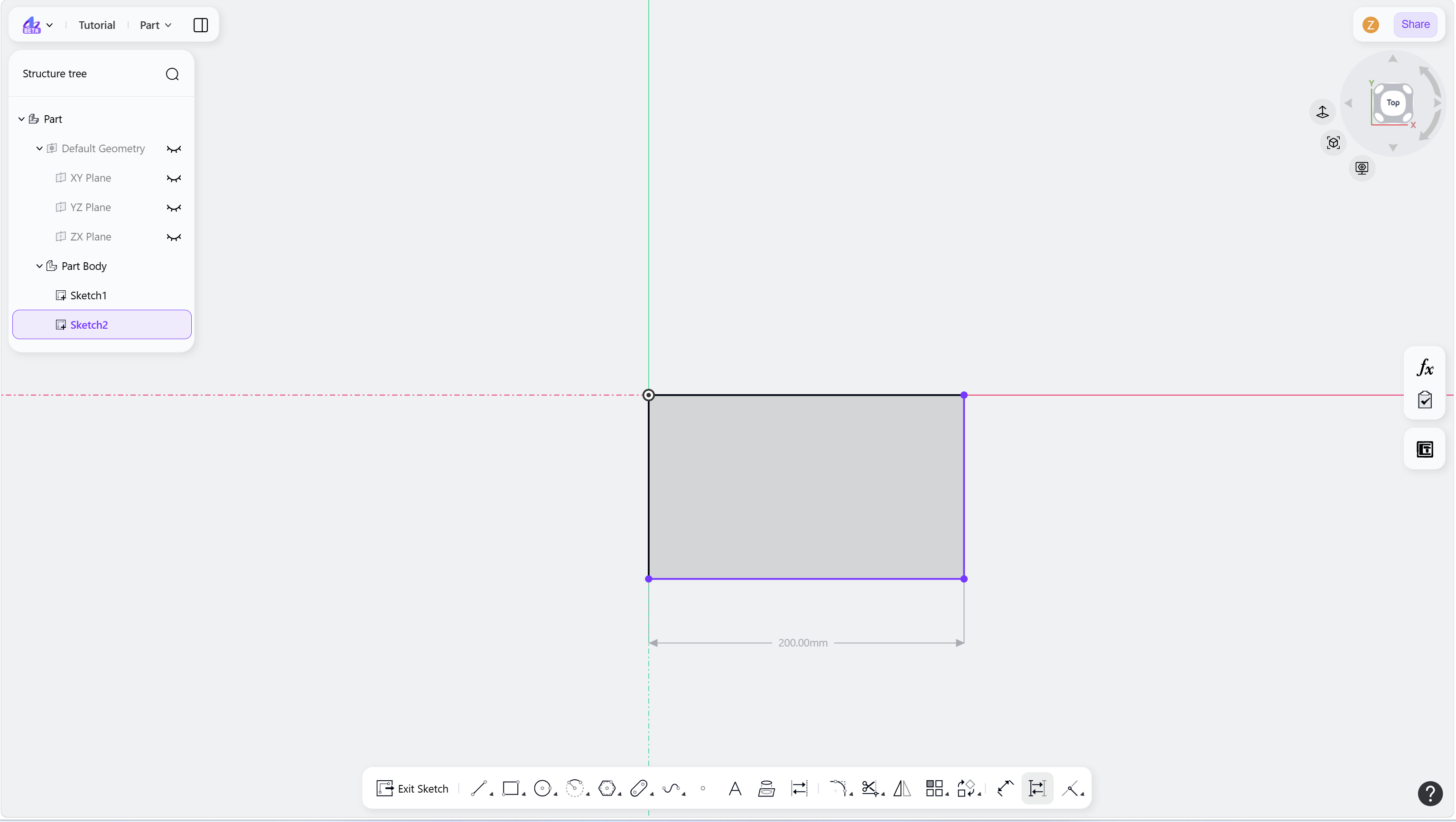

Step 2-2 The dimension is switched to a driven dimension:

Notes

• If a dimension is identified as a redundant constraint, it will automatically display as a driven constraint and cannot be switched to driving.
