Midpoint Line

The Midpoint Line tool is used to create line segments symmetrically about a specified midpoint.

Steps

1. Hover over the "Line" icon in the toolbar.

2. Select the "Midpoint Line" to enter Midpoint Line mode.

3. Create a midpoint line:

   1. Left-click to define the midpoint.

   2. Move the cursor and click to define one endpoint.

   3. (Optional) Enter a value and press Enter to apply a dimensional constraint.

4. Right-click or press Esc to exit Midpoint Line mode.

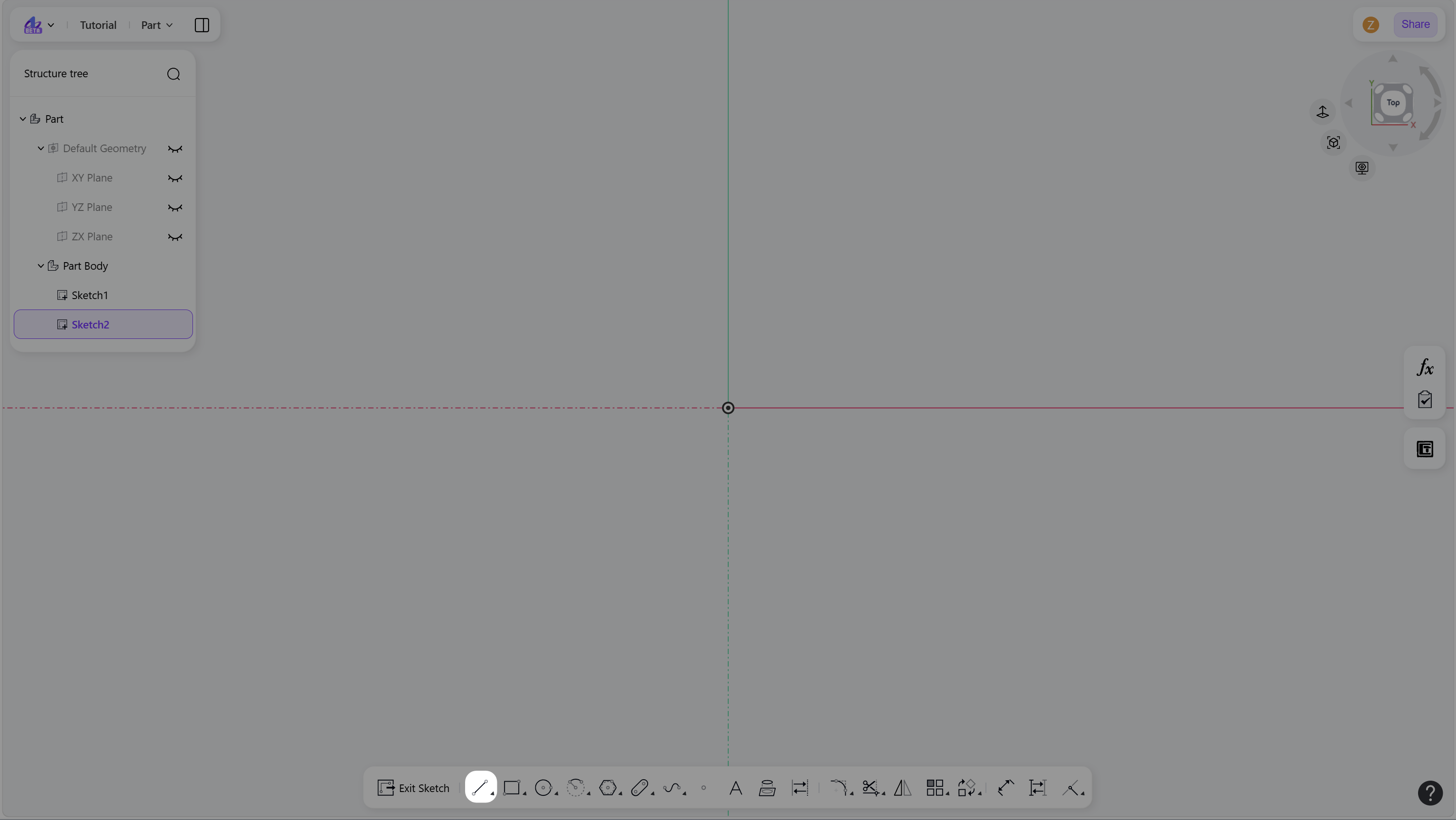

Step 1 - Hover over the "Line" icon in the toolbar:

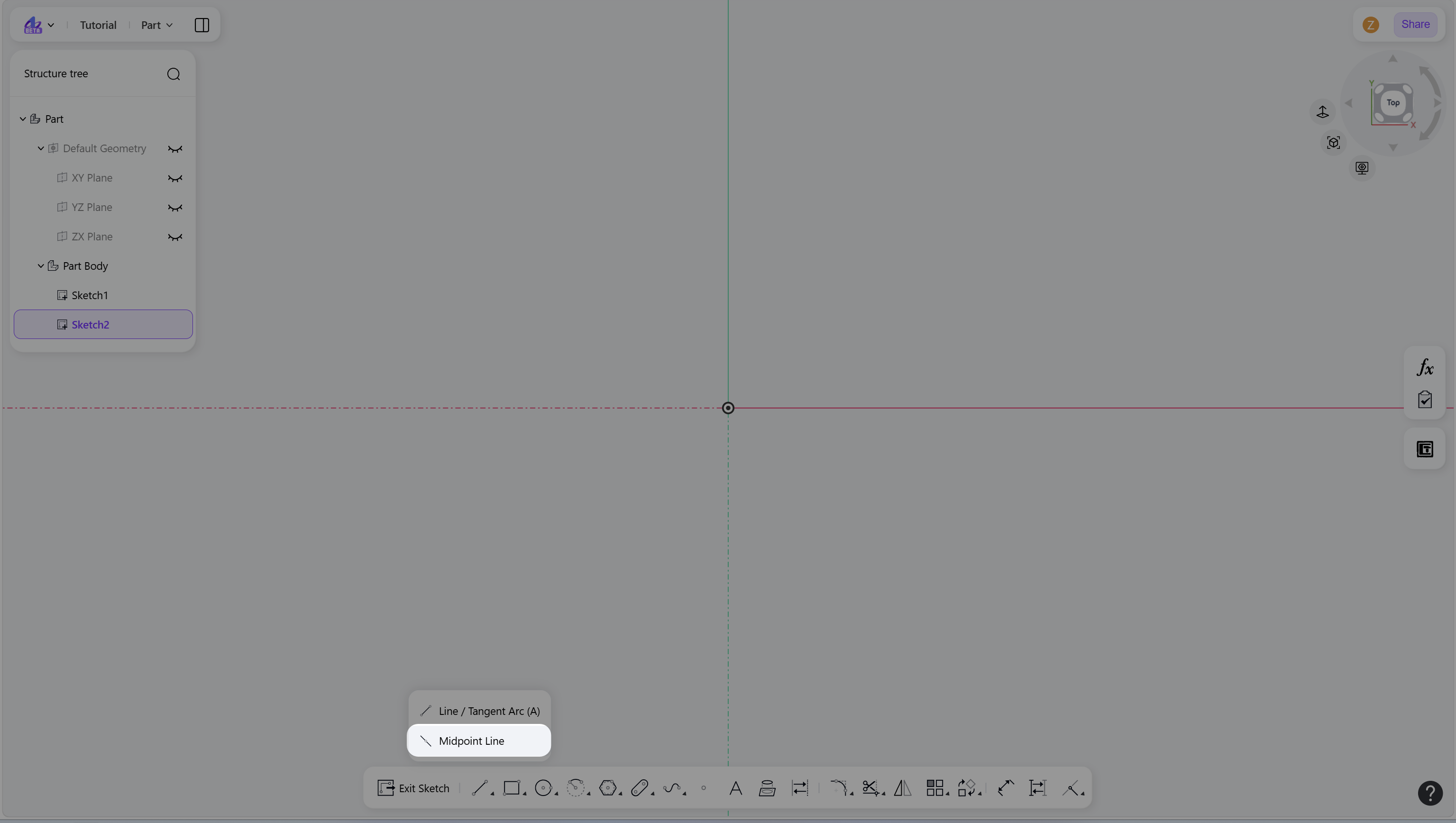

Step 2 - Select the "Midpoint Line" to enter Midpoint Line mode:

Step 3 - Left-click to define the midpoint:

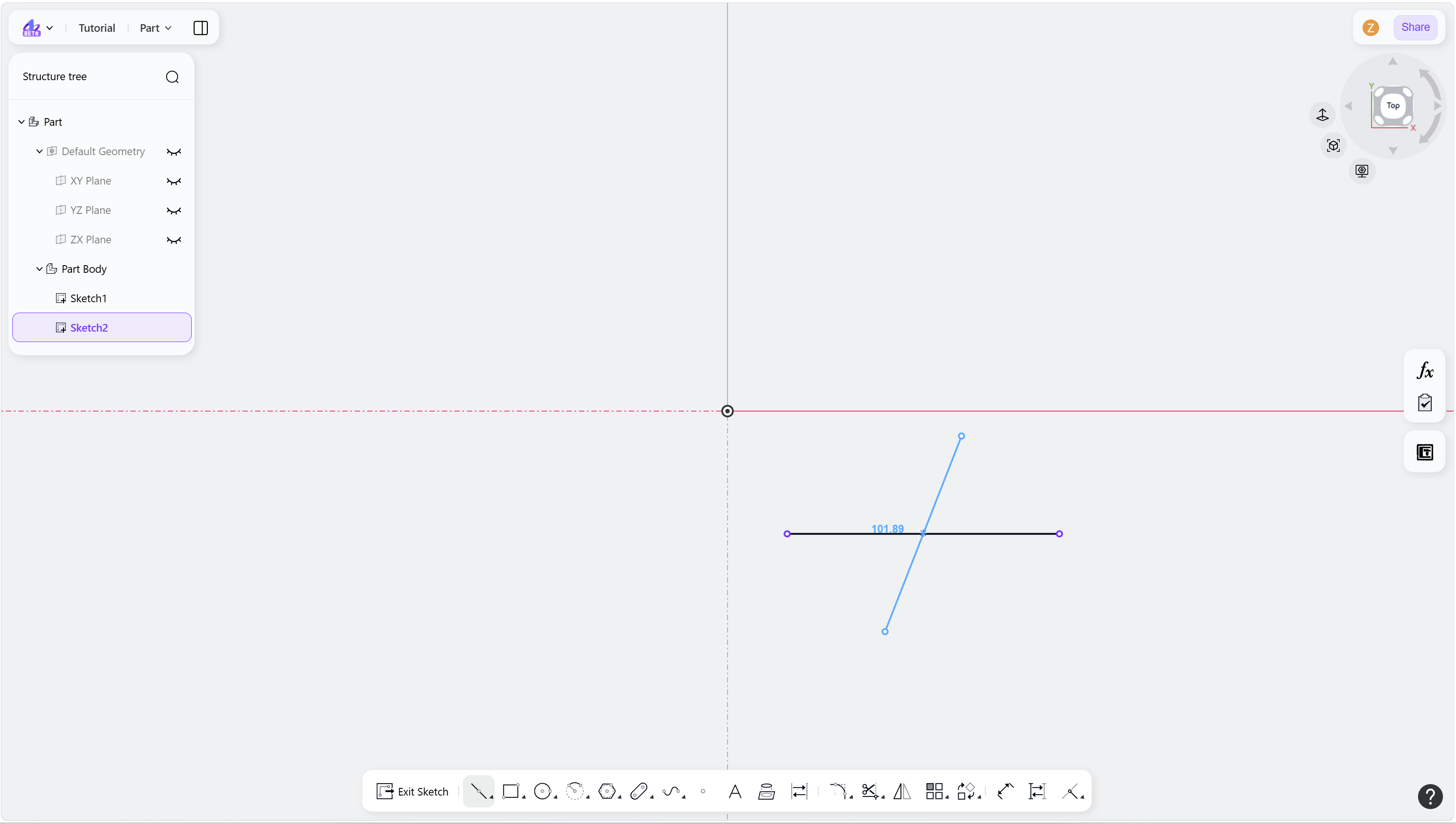

Step 4 - Left-click to define the endpoint:
