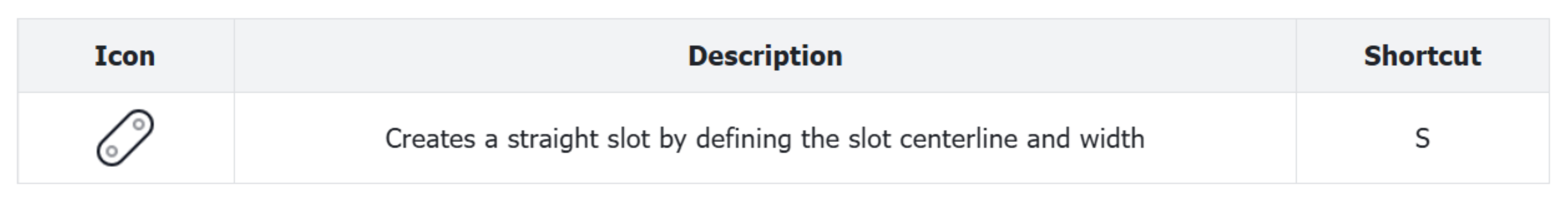

Straight Slot

Steps

1. Hover over the "Slot" icon in the toolbar.

2. Click the "Straight Slot" to enter straight slot mode.

3. Create a straight slot:

   1. Left-click to define the start point of the slot centerline.

   2. Move the cursor and left-click again to define the end point of the slot centerline.

   3. Move the cursor and left-click to define the slot width.

   4. (Optional) Enter a value and press Enter to apply dimensional constraints.

4. Right-click or press Esc to exit.

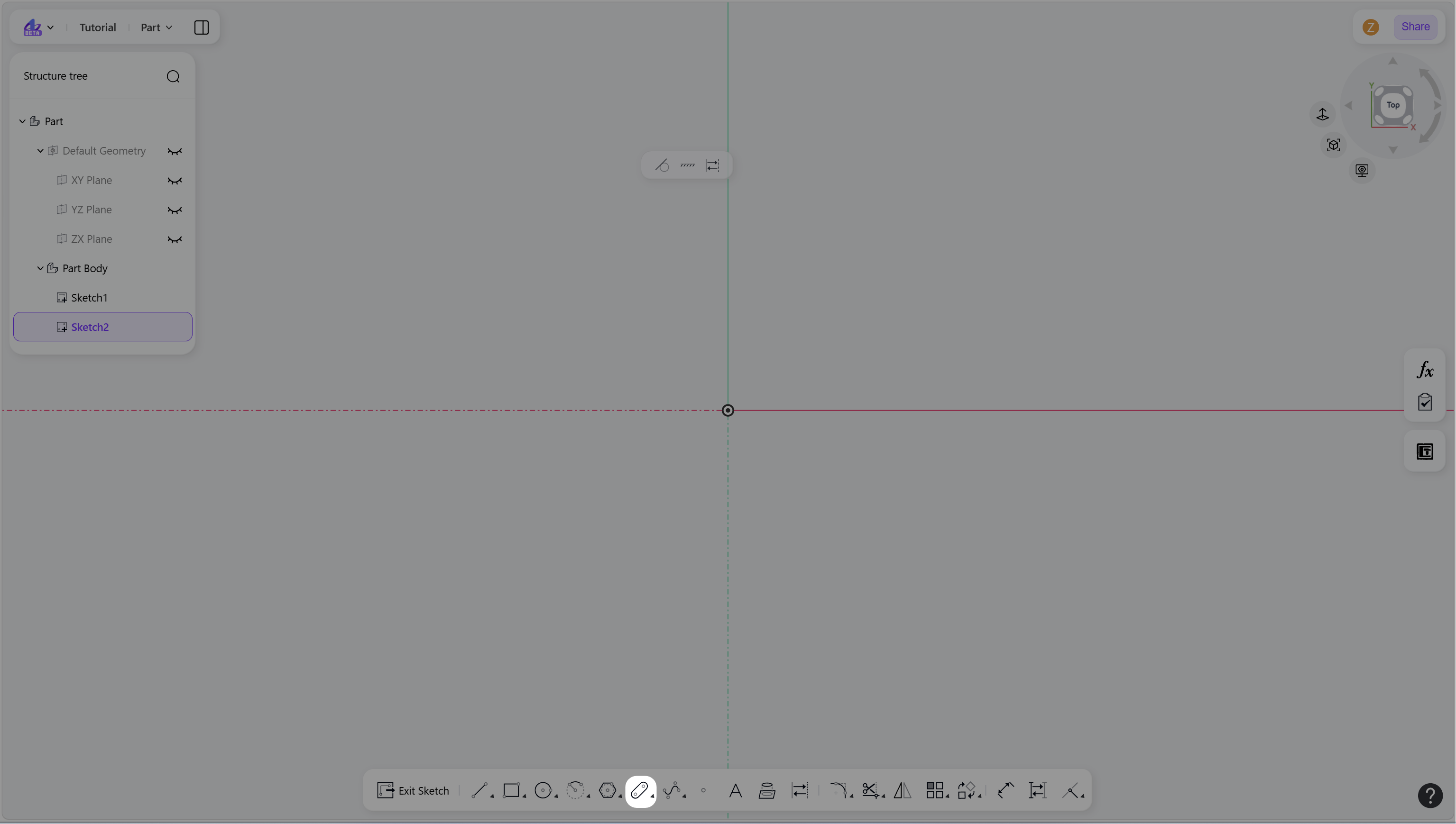

Step 1 - Hover over the "Slot" icon in the toolbar:

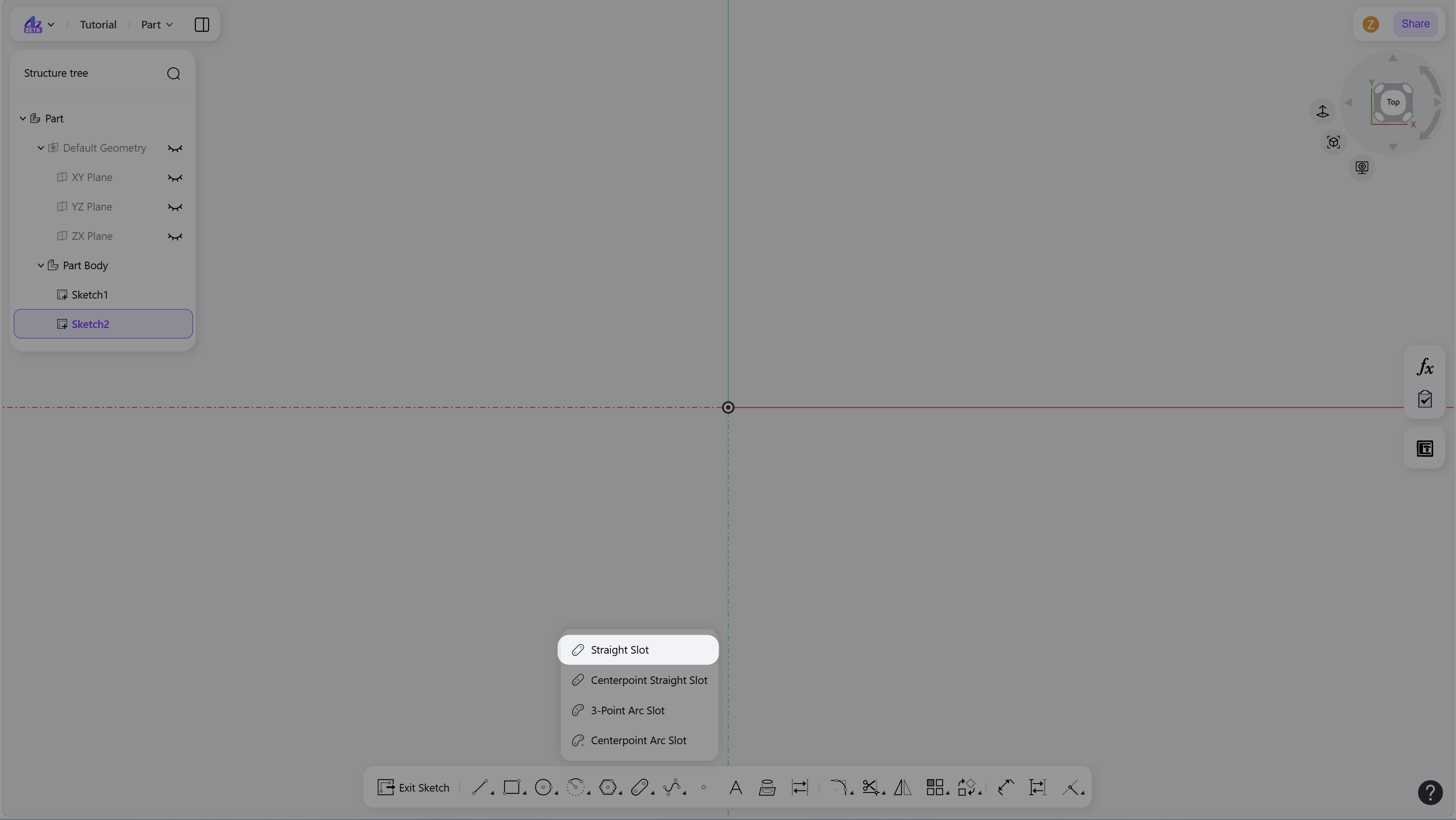

Step 2 - Click the "Straight Slot" to enter straight slot mode:

Step 3 - Define the start point of the slot centerline:

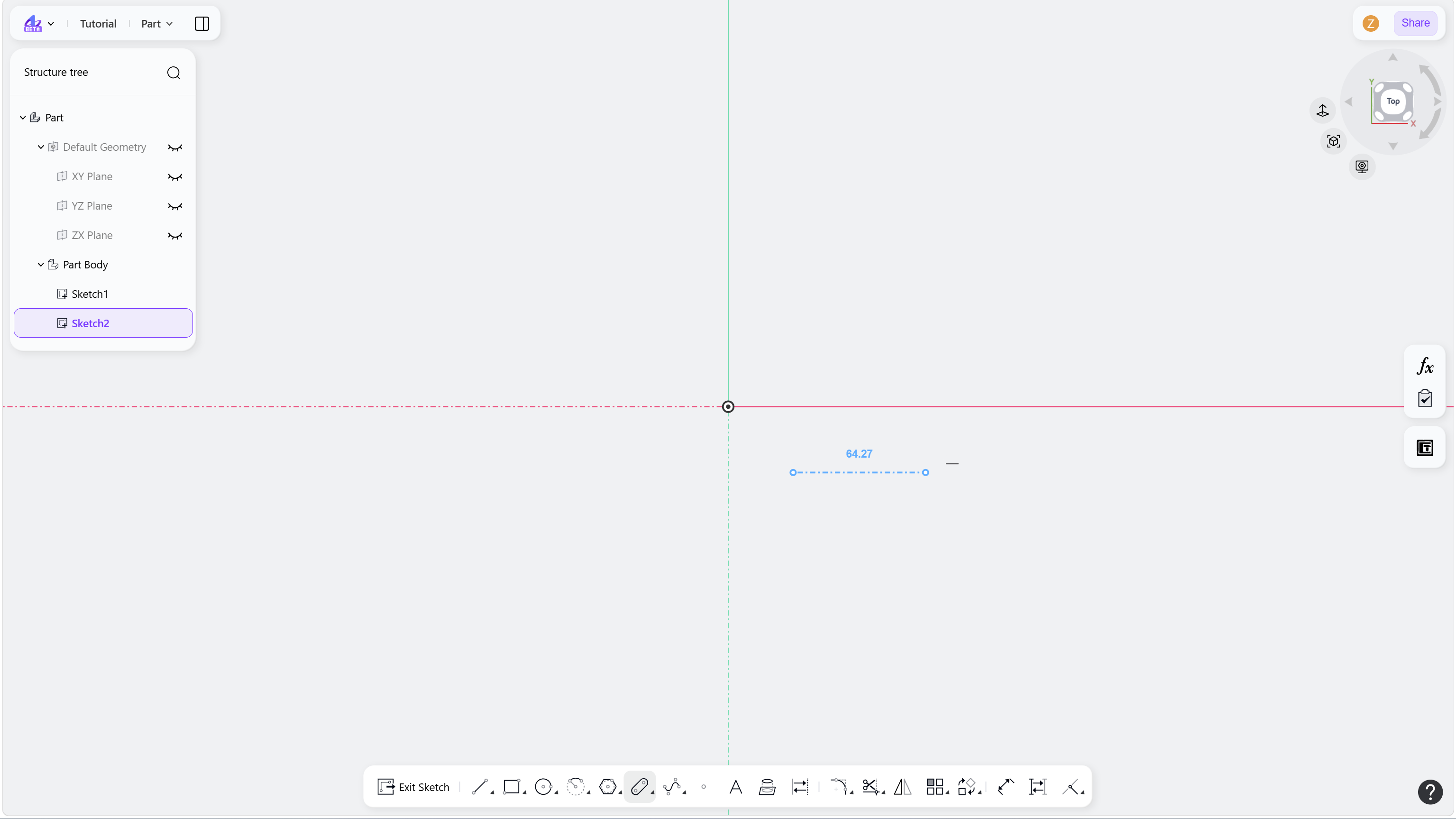

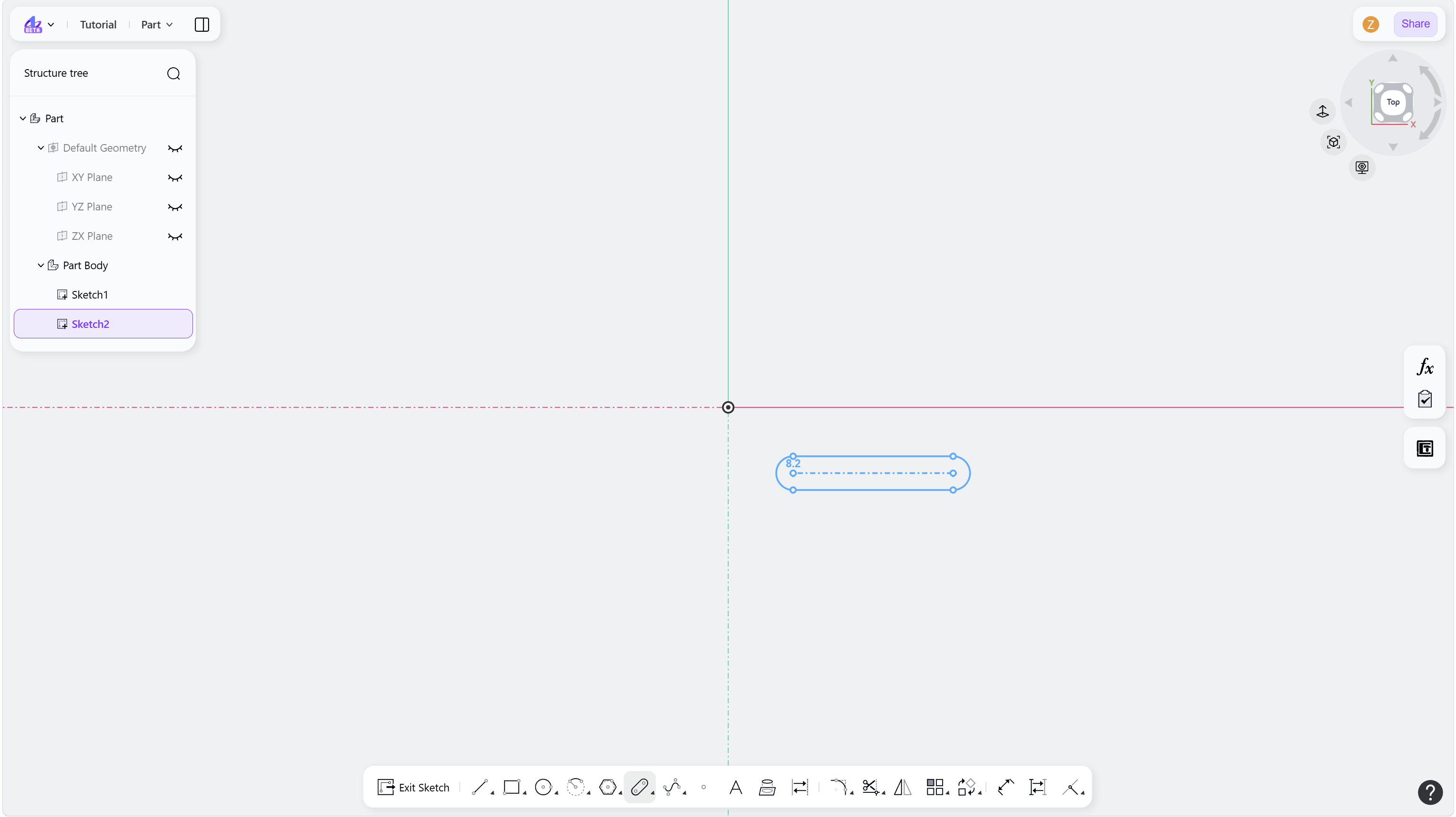

Step 4 - Move the cursor and left-click to define the end point of the slot centerline:

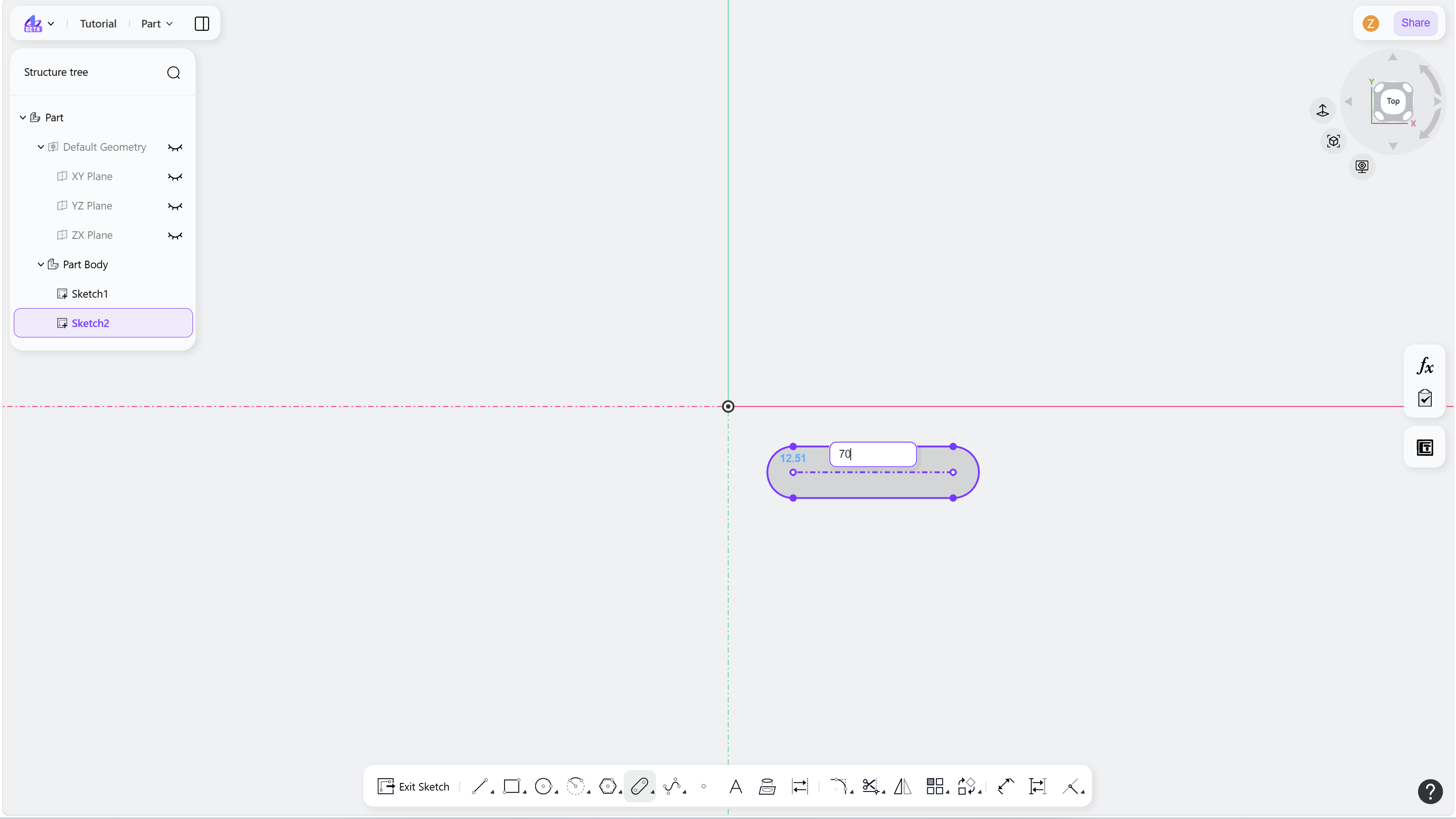

Step 5 - Enter a value to add a dimensional constraint:

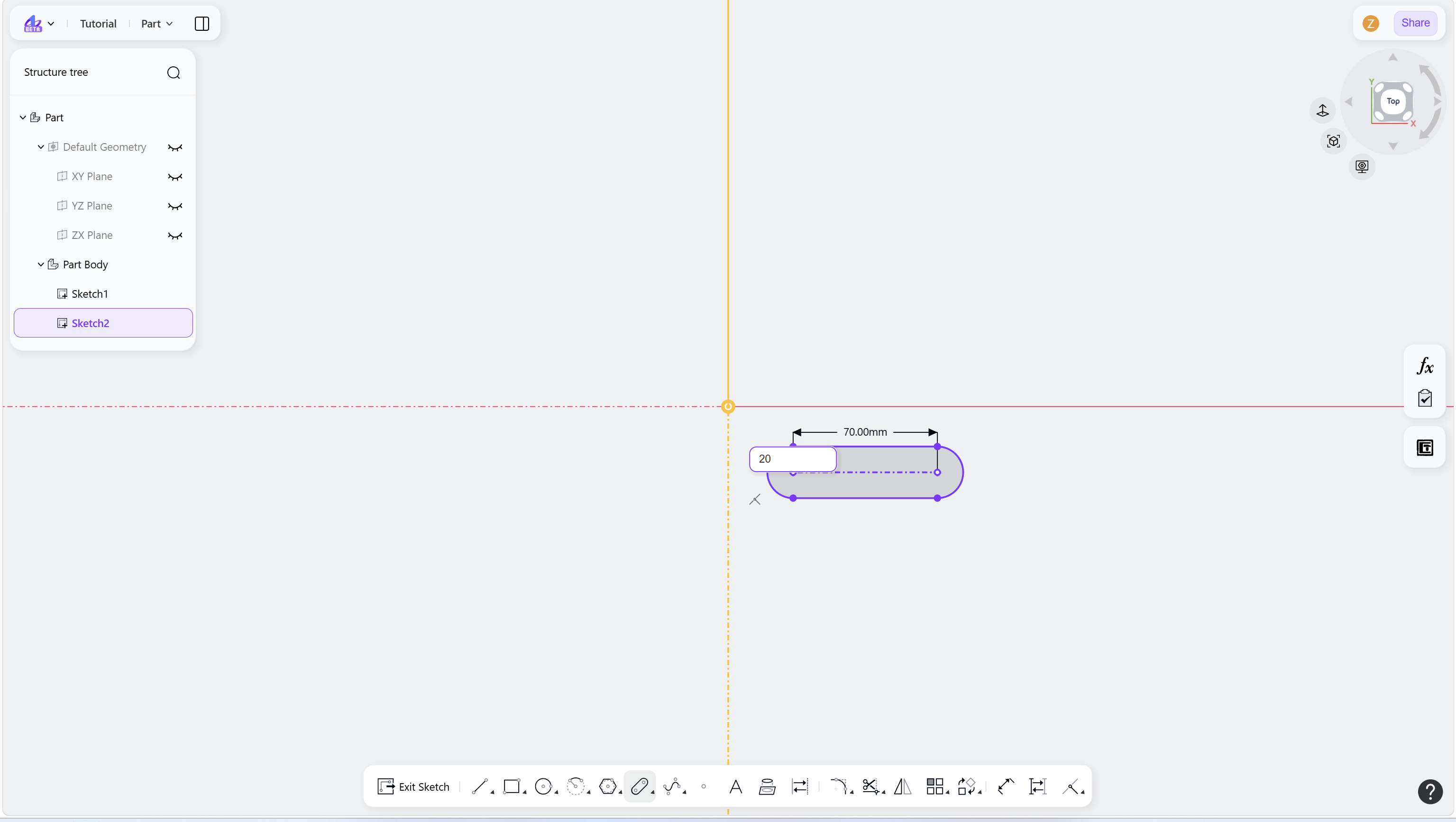

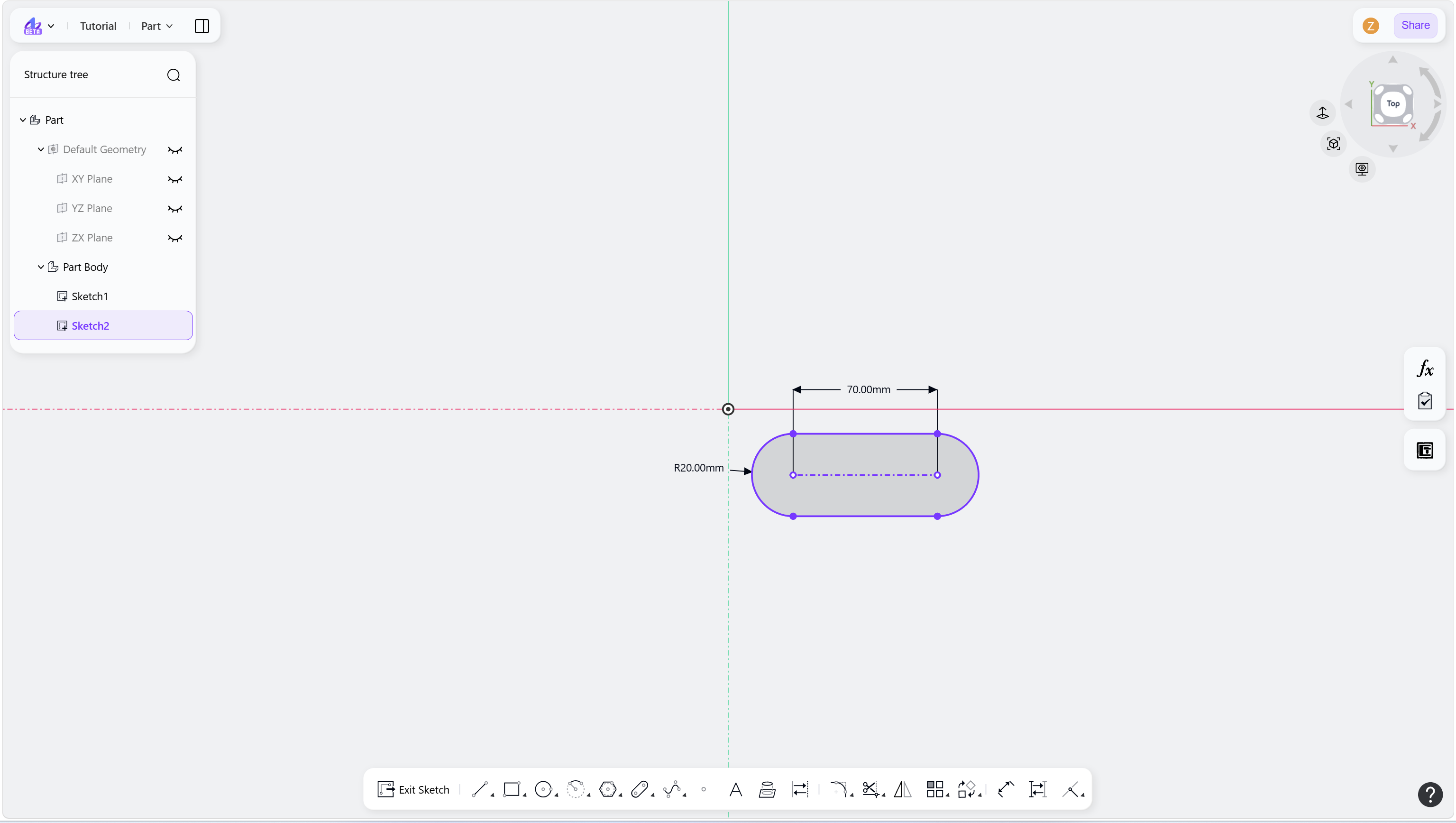

Step 6 - Enter a value to add a radius constraint to the slot:
