Symmetric

Steps

1. Hover over the "Constraint" icon in the toolbar.

2. Click the "Symmetric Constraint" icon.

3. Select a line as the symmetry axis.

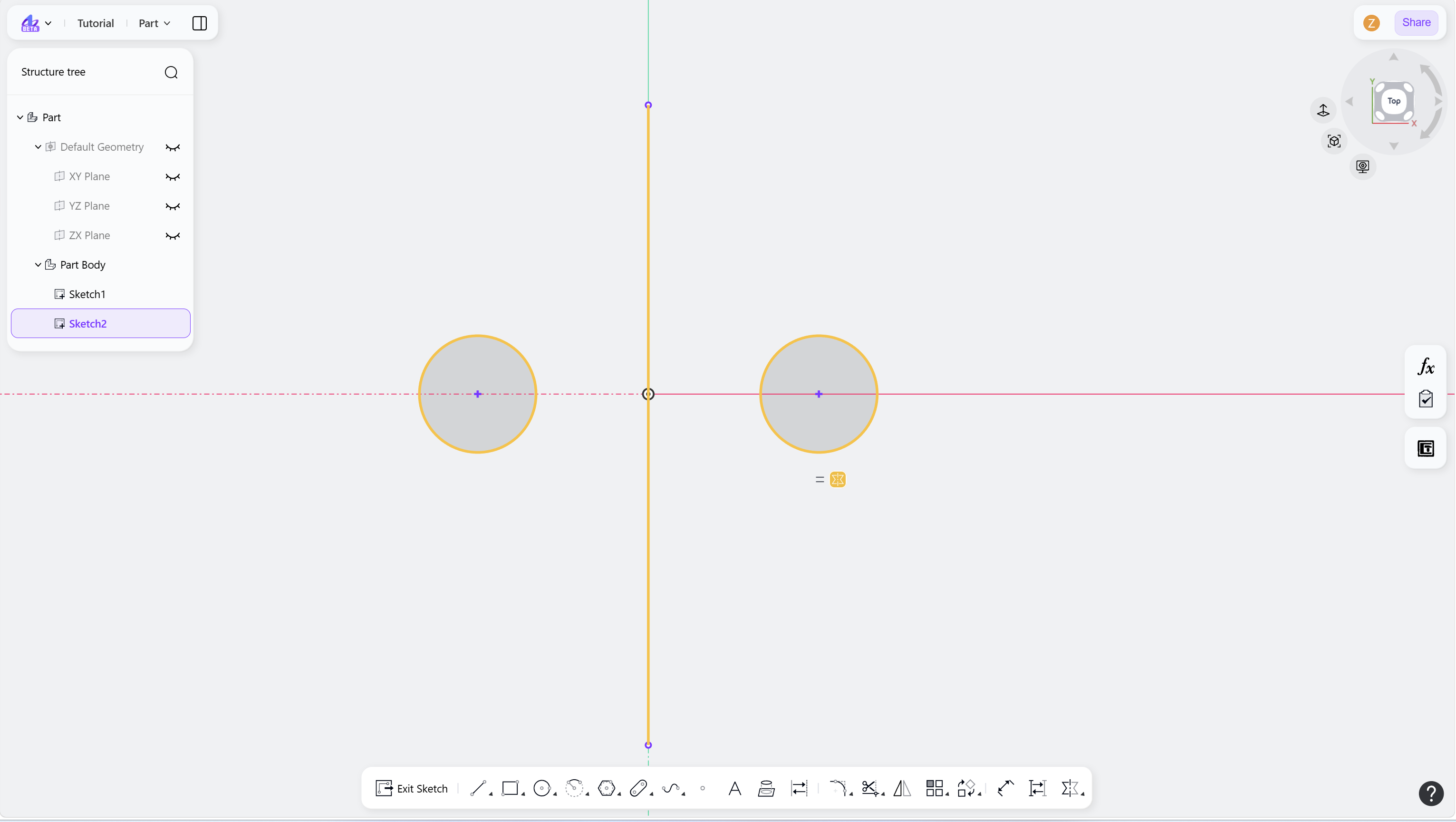

4. Select two sketch elements of the same type, and the symmetric constraint will be applied to these two sketch elements.

   1. Groups of sketch elements can be selected continuously to be symmetric.

5. Right-click or press Esc to exit.

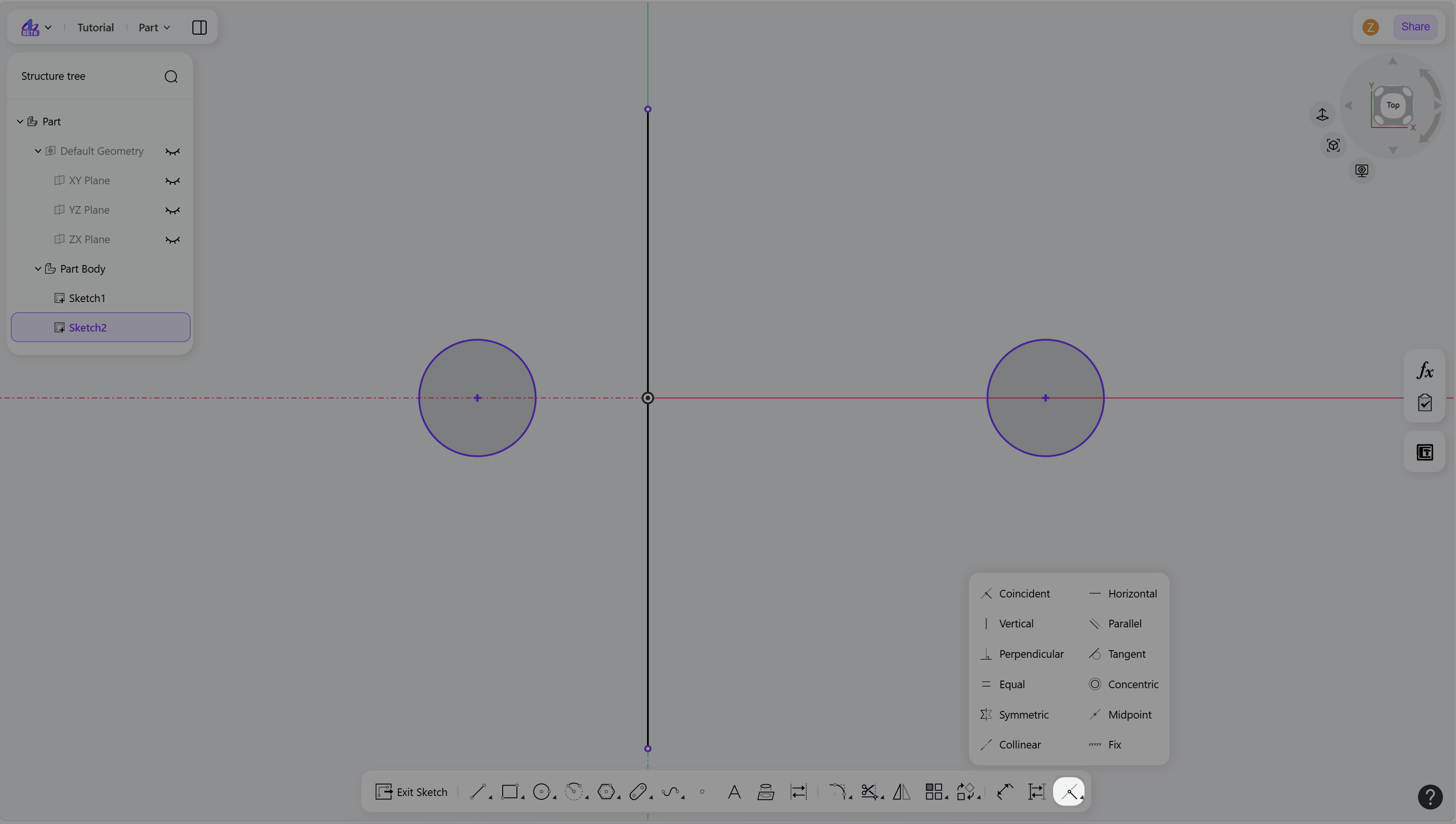

Step 1 - Hover over the "Constraint" icon in the toolbar:

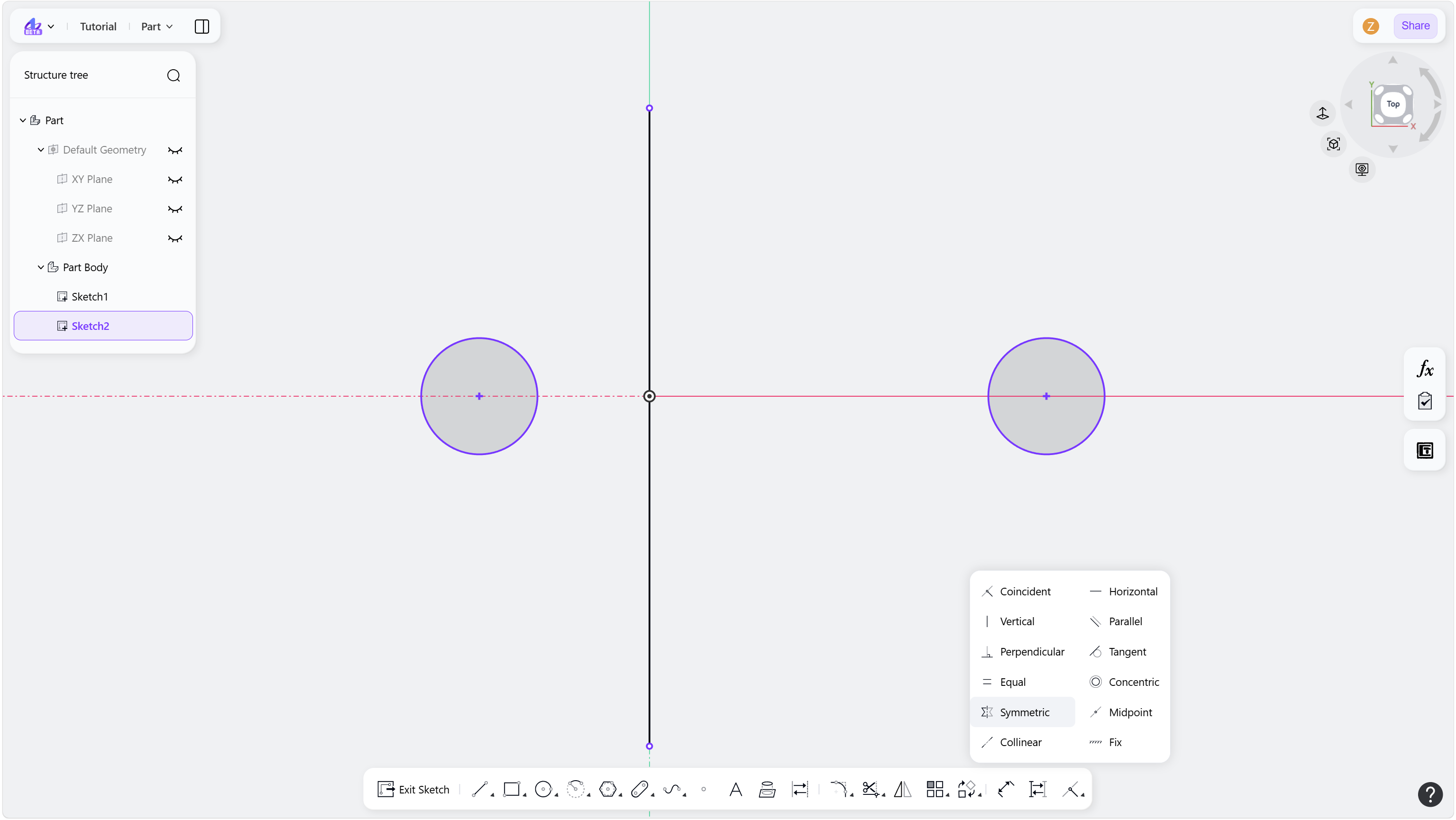

Step 2 - Click the "Symmetric" constraint icon:

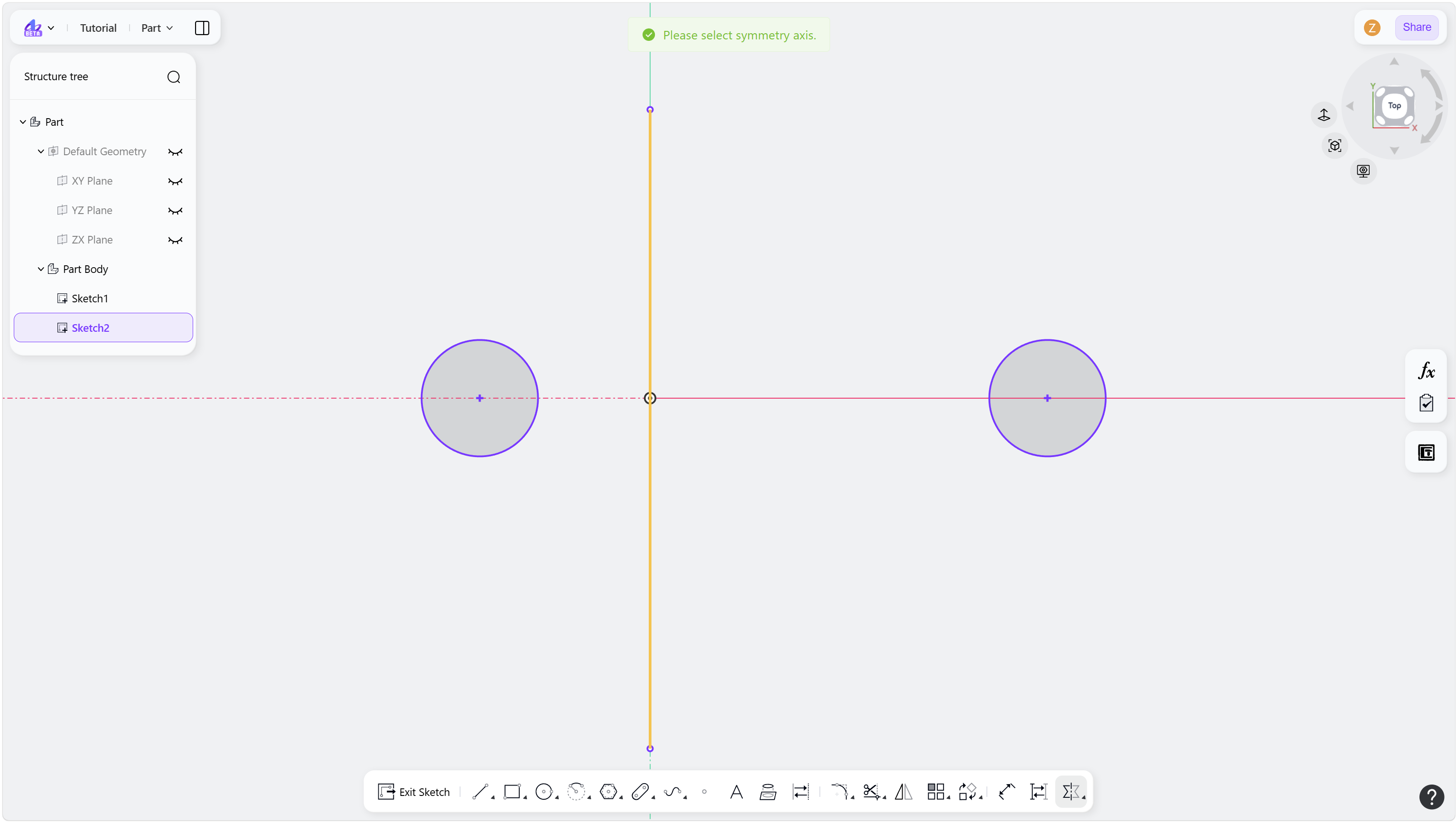

Step 3 - Select a line as the symmetry axis:

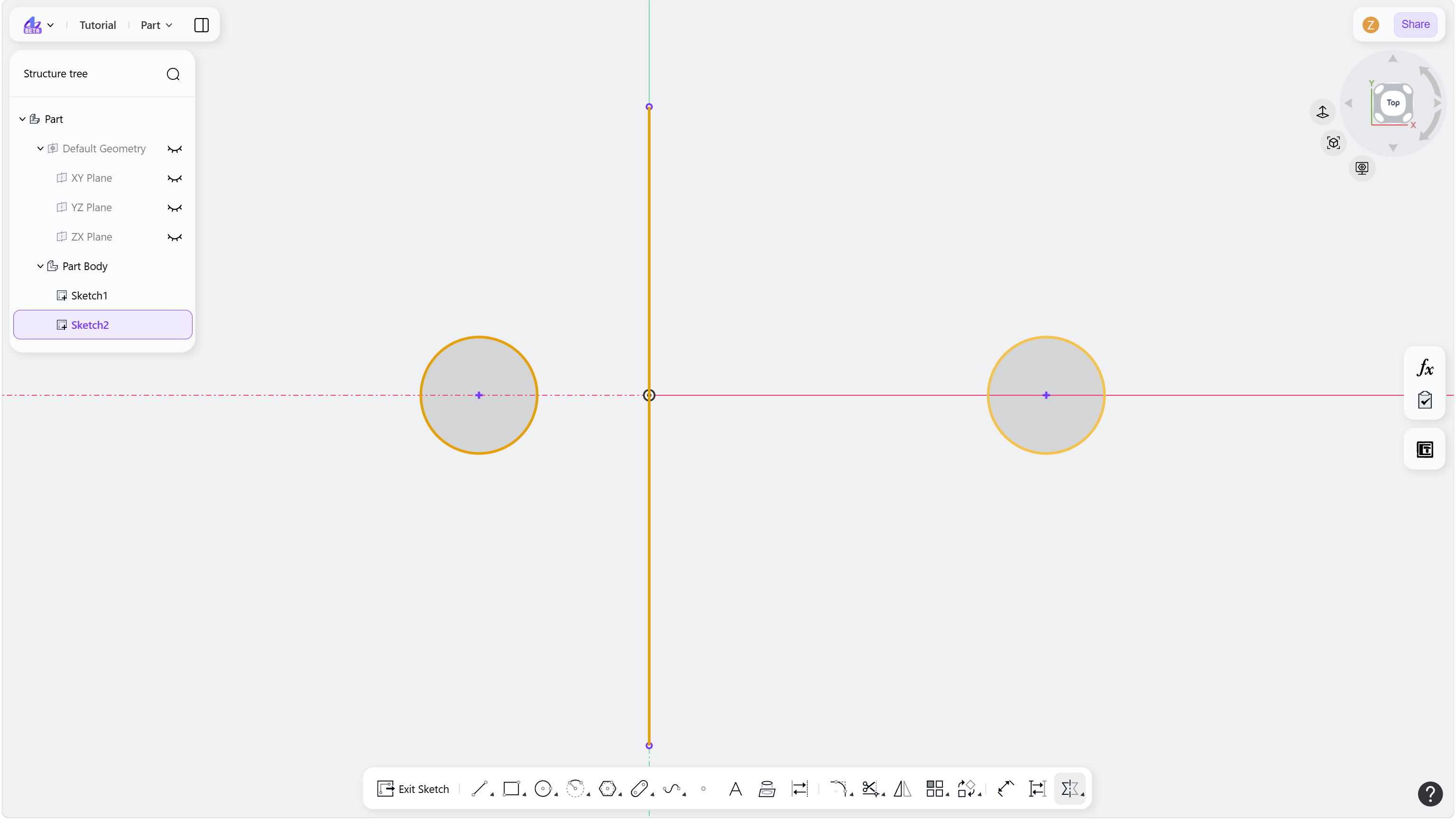

Step 4 - Select two sketch elements of the same type:
