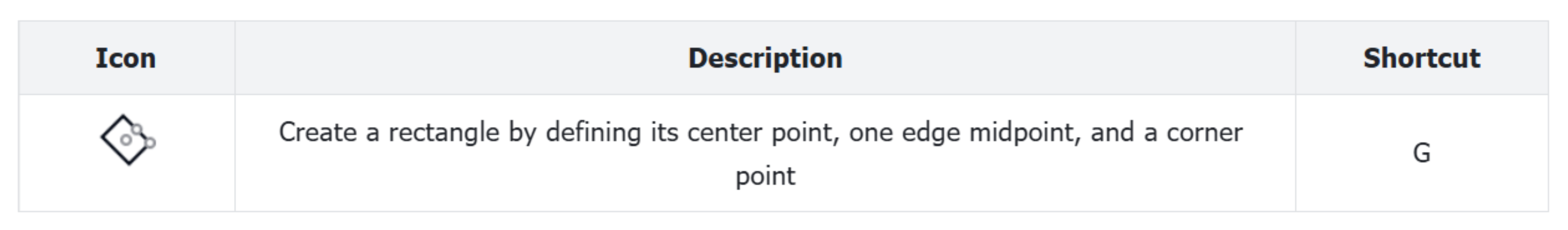

3-Point Center Rectangle

Steps

1. Hover over the "Rectangle" icon in the toolbar.

2. Select "3-Point Center Rectangle" to Enter 3-Point Center Rectangle mode.

3. Create a 3-Point Center Rectangle:

   1. Left-click to define the center point.

   2. Move the cursor and click to define the midpoint of one rectangle edge.

   3. Move the cursor and click to define the third point as a corner of the rectangle.

   4. (Optional) Enter values and press Enter to apply constraints.

4. Right-click or press Esc to exit.

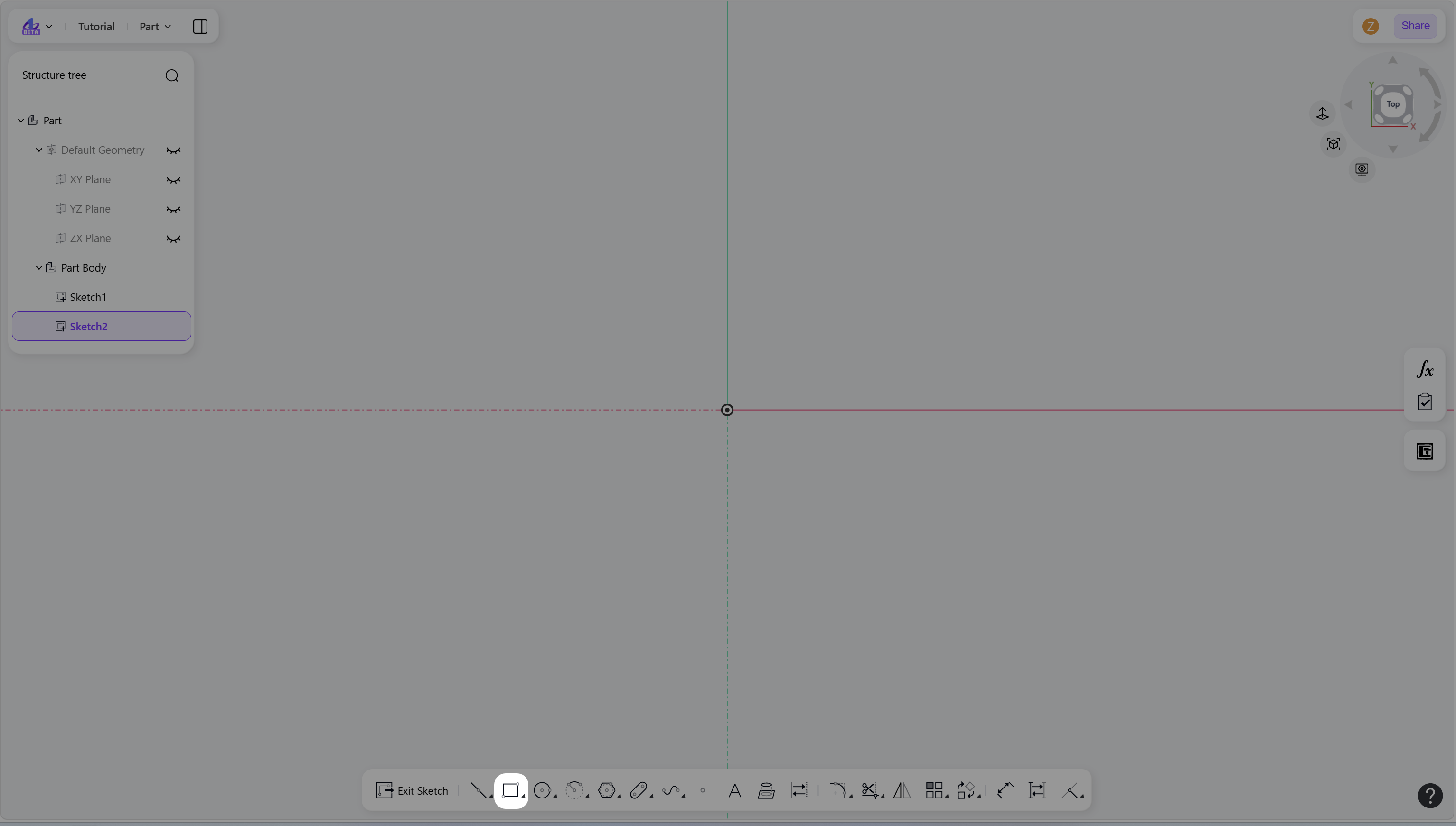

Step 1 - Hover over the "Rectangle" icon in the toolbar:

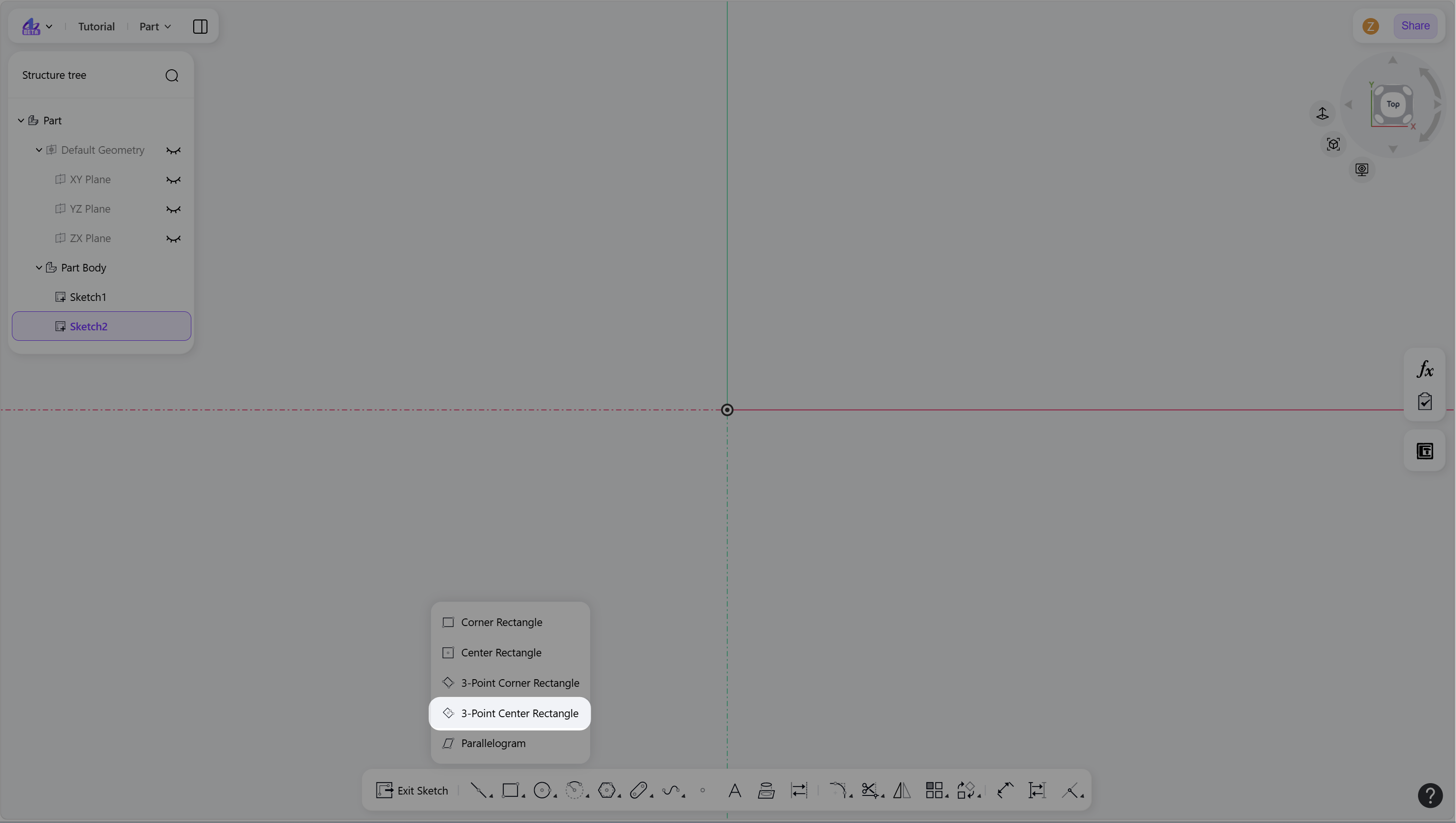

Step 2 - Select "3-Point Center Rectangle" to Enter 3-Point Center Rectangle mode:

Step 3 - Left-click to define the center point:

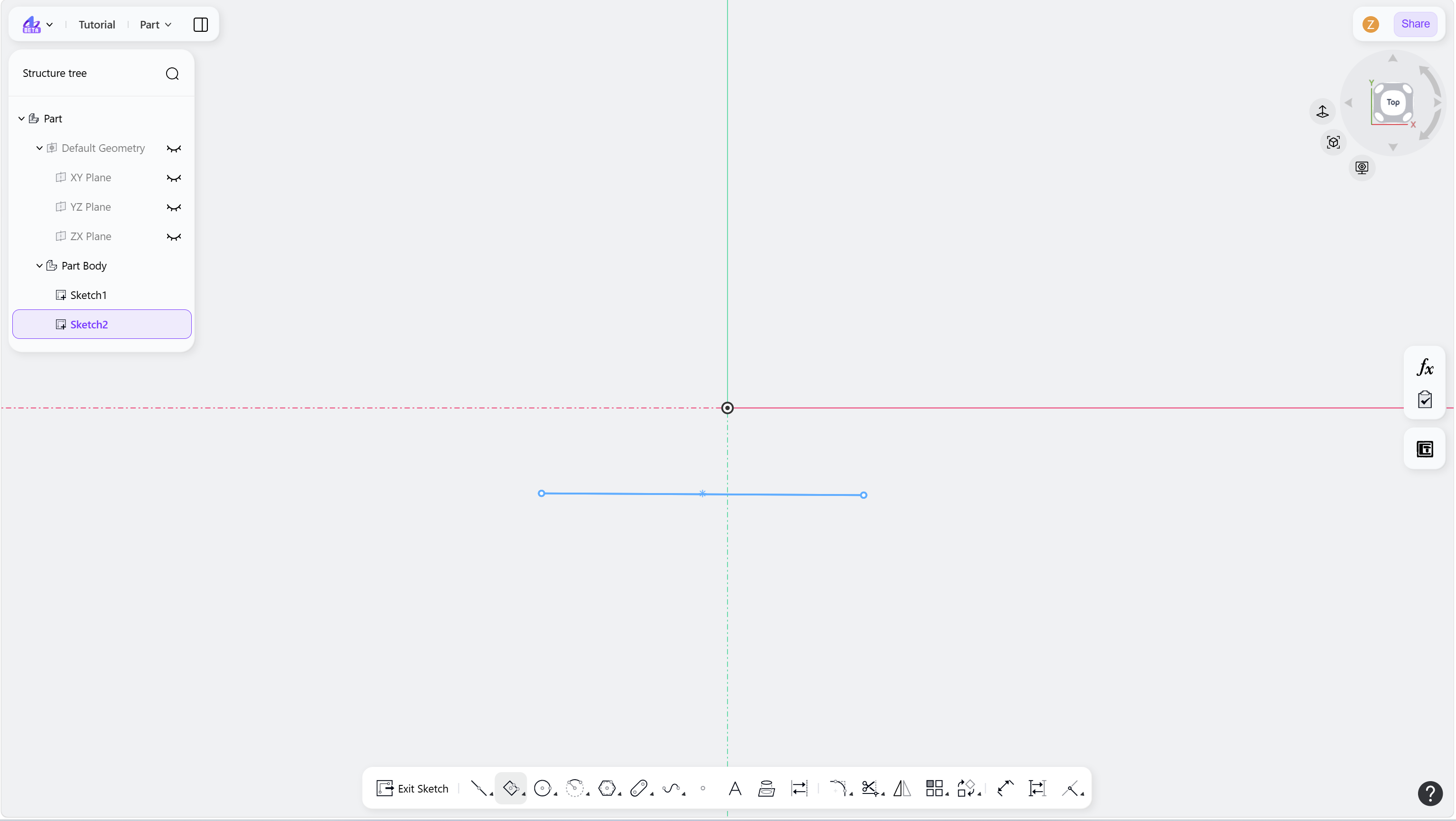

Step 4 - Move the cursor and click to define the midpoint of one rectangle edge:

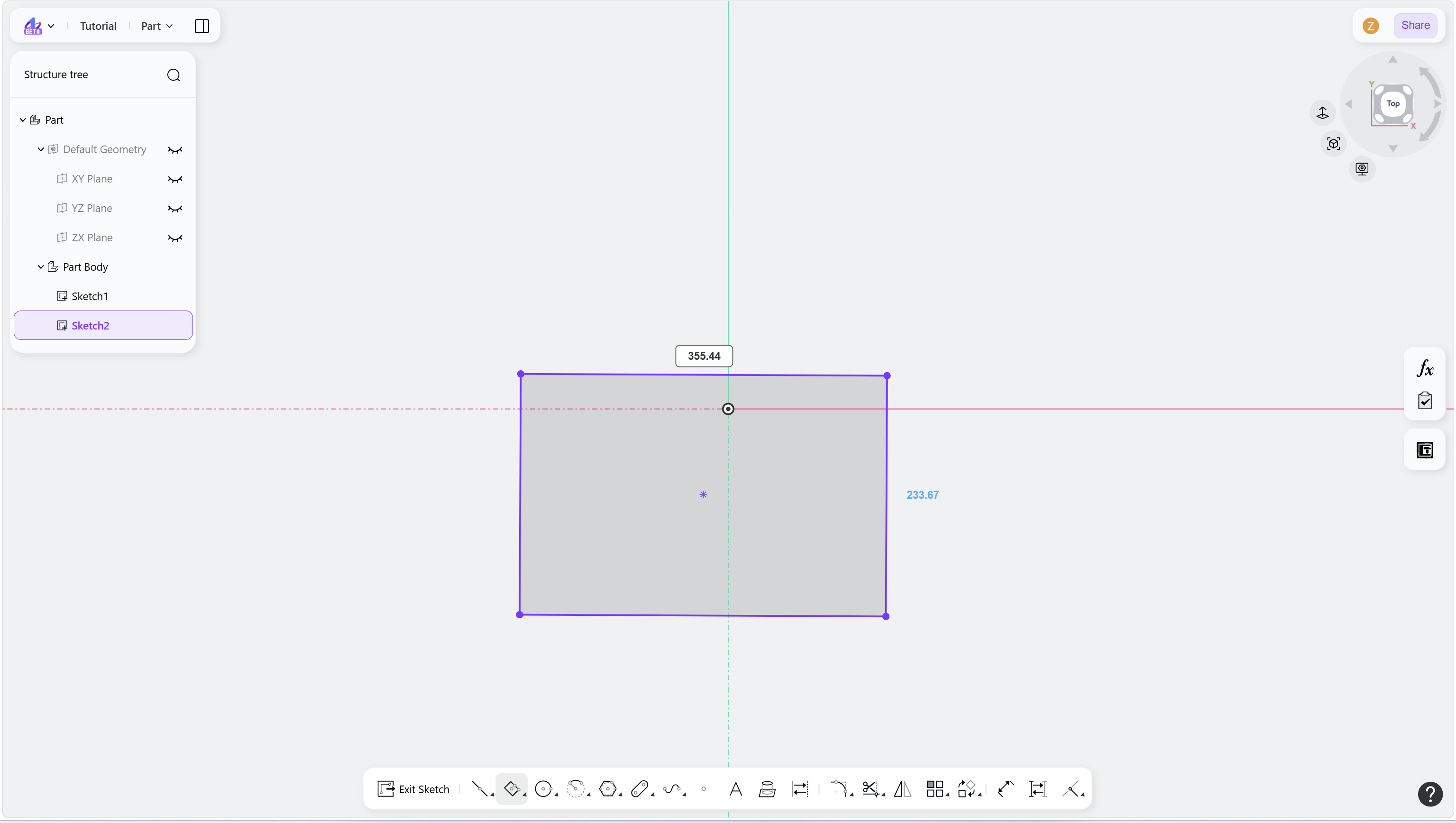

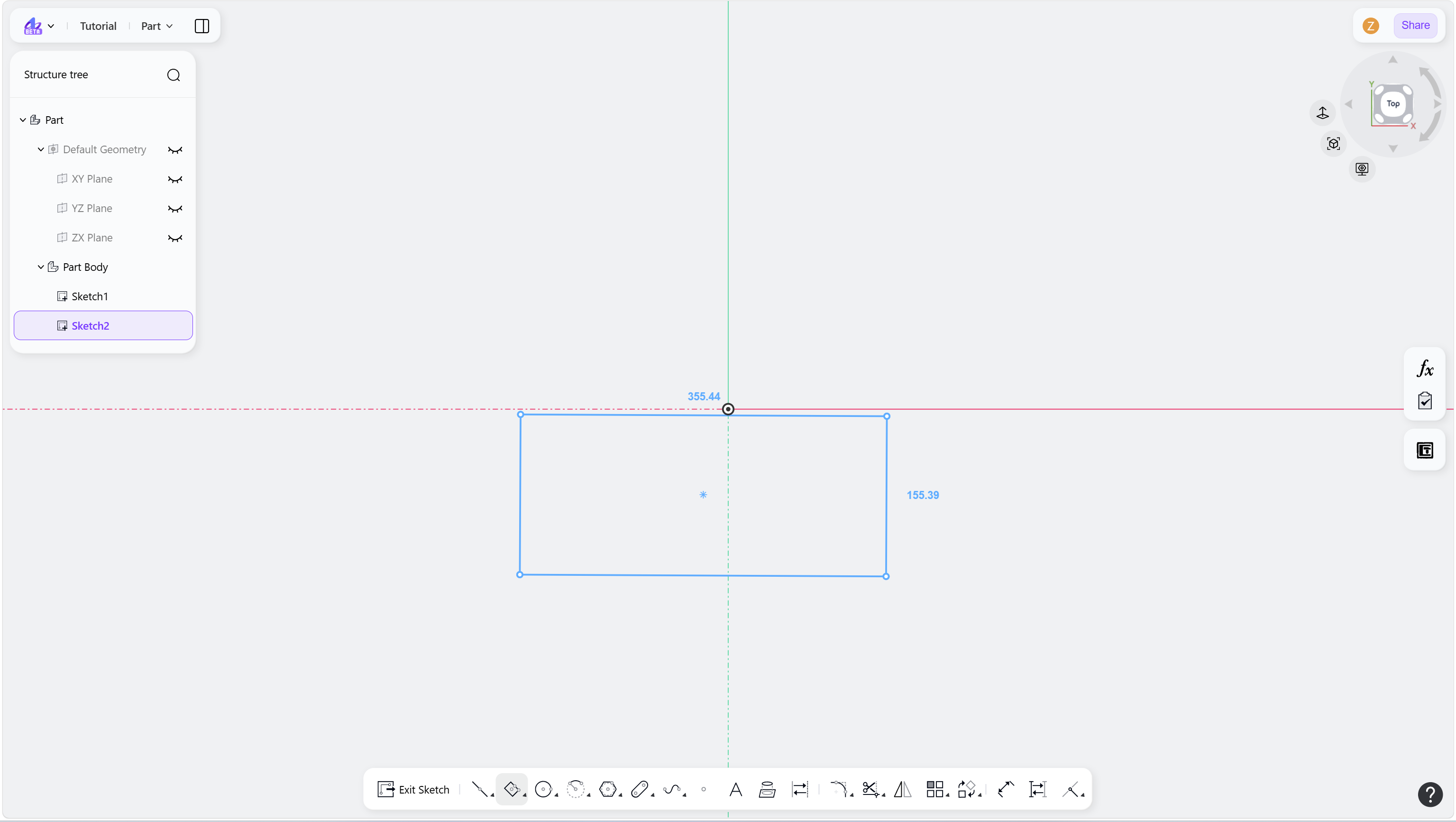

Step 5 - Move the cursor and click to define the third point as a corner of the rectangle:
