Corner Rectangle

The Corner Rectangle tool creates a rectangle by defining two opposite corner points.

Steps

1. Hover over the "Rectangle" icon in the toolbar.

2. Select "Corner Rectangle" to enter Corner Rectangle mode.

3. Create a corner rectangle:

   1. Left-click to define the first corner.

   2. Move the cursor and click to define the opposite corner.

   3. (Optional) Enter values and press Enter to apply width and height constraints.

4. Right-click or press Esc to exit.

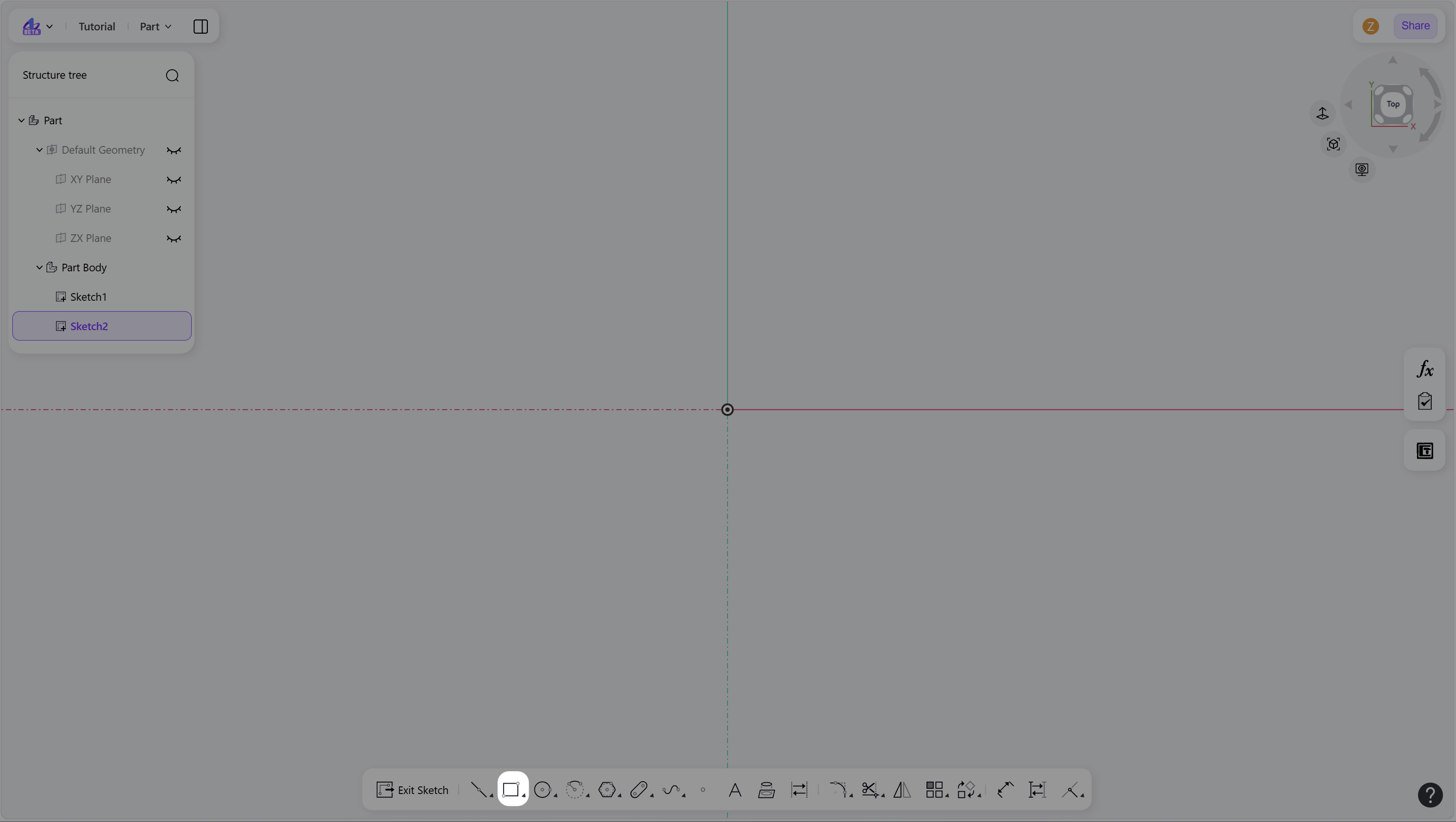

Step 1 - Hover over the "Rectangle" icon in the toolbar:

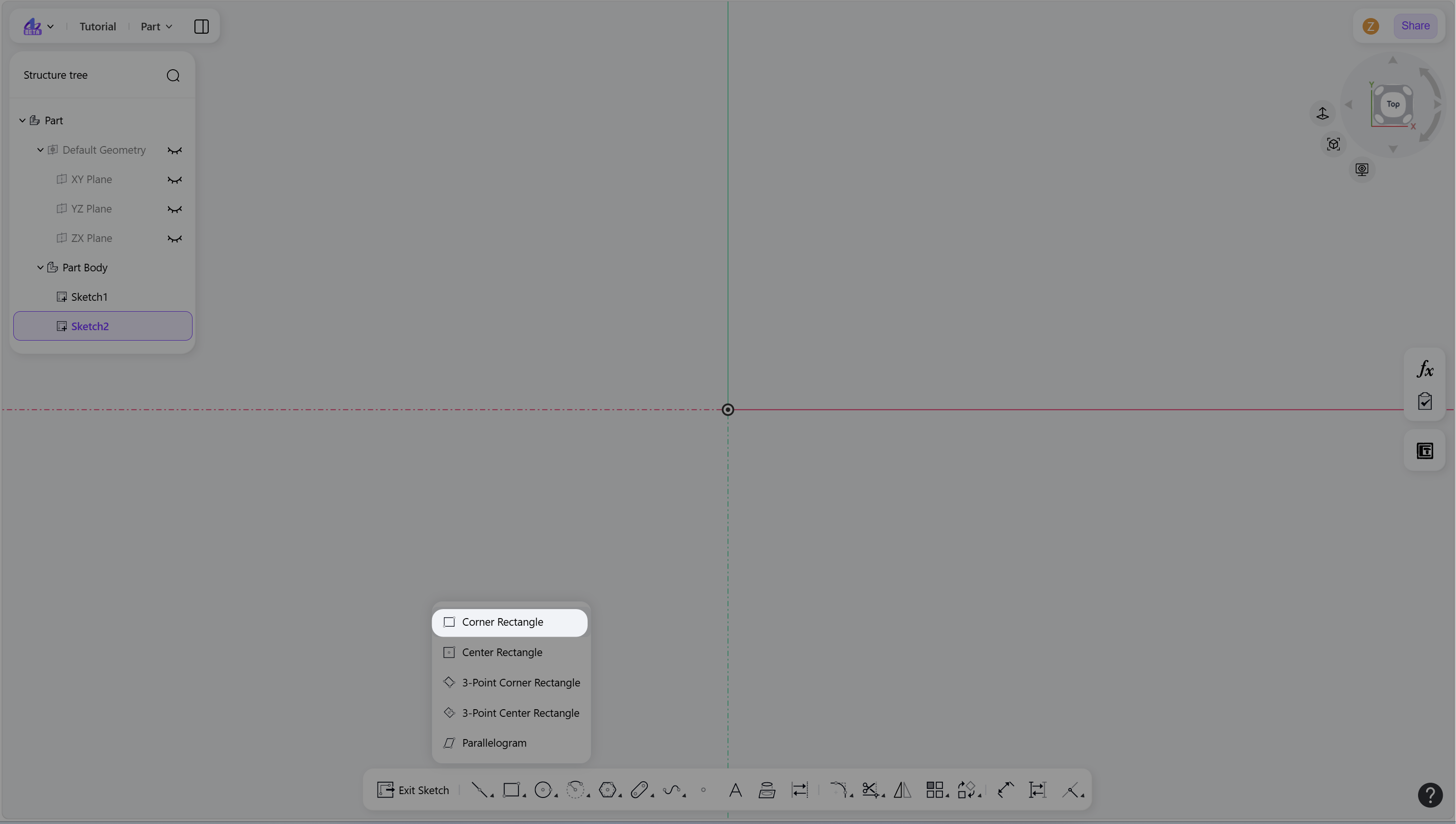

Step 2 - Select "Corner Rectangle" to enter Corner Rectangle mode:

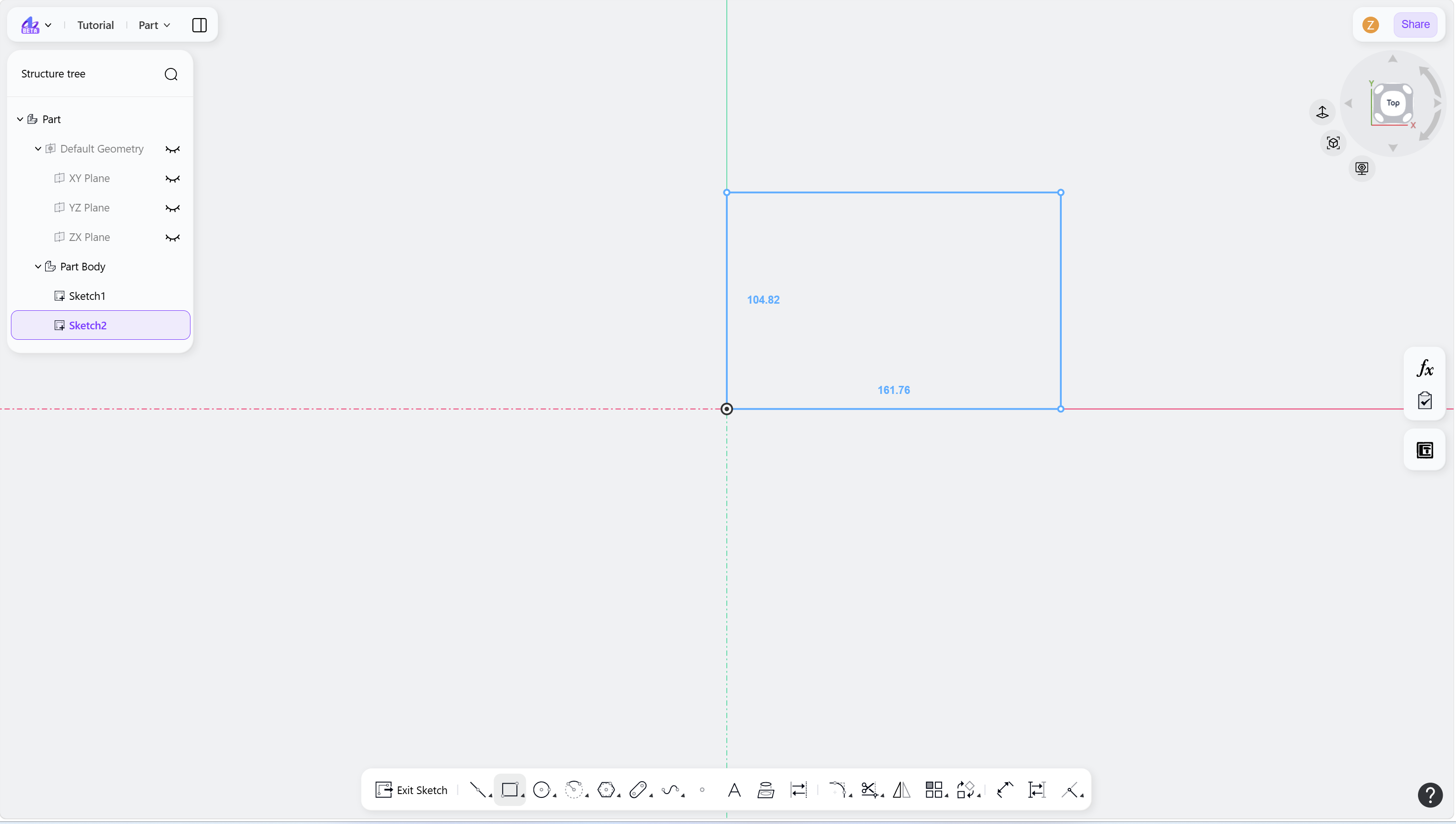

Step 3 - Sequential left-clicks to define the two corners:

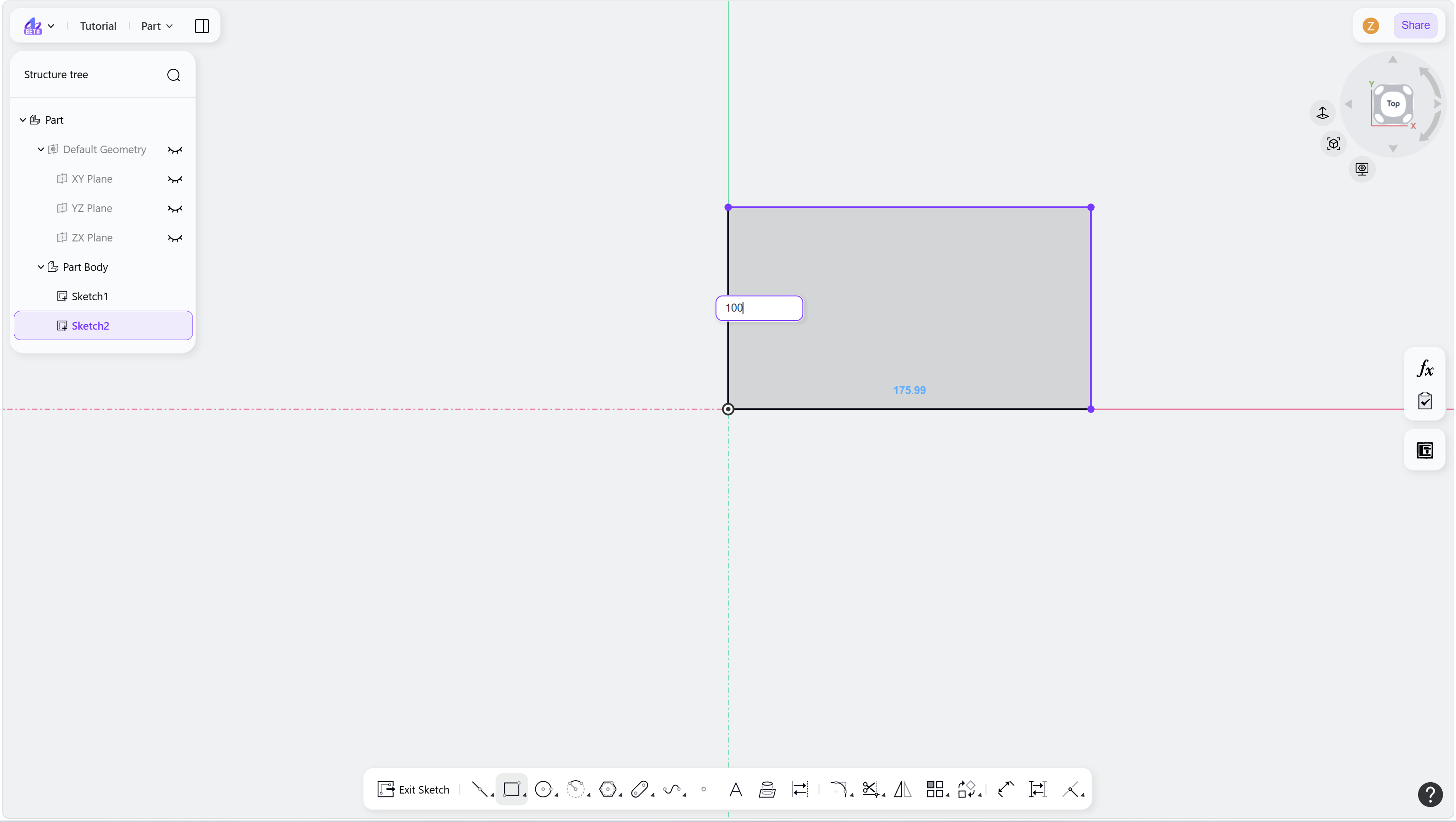

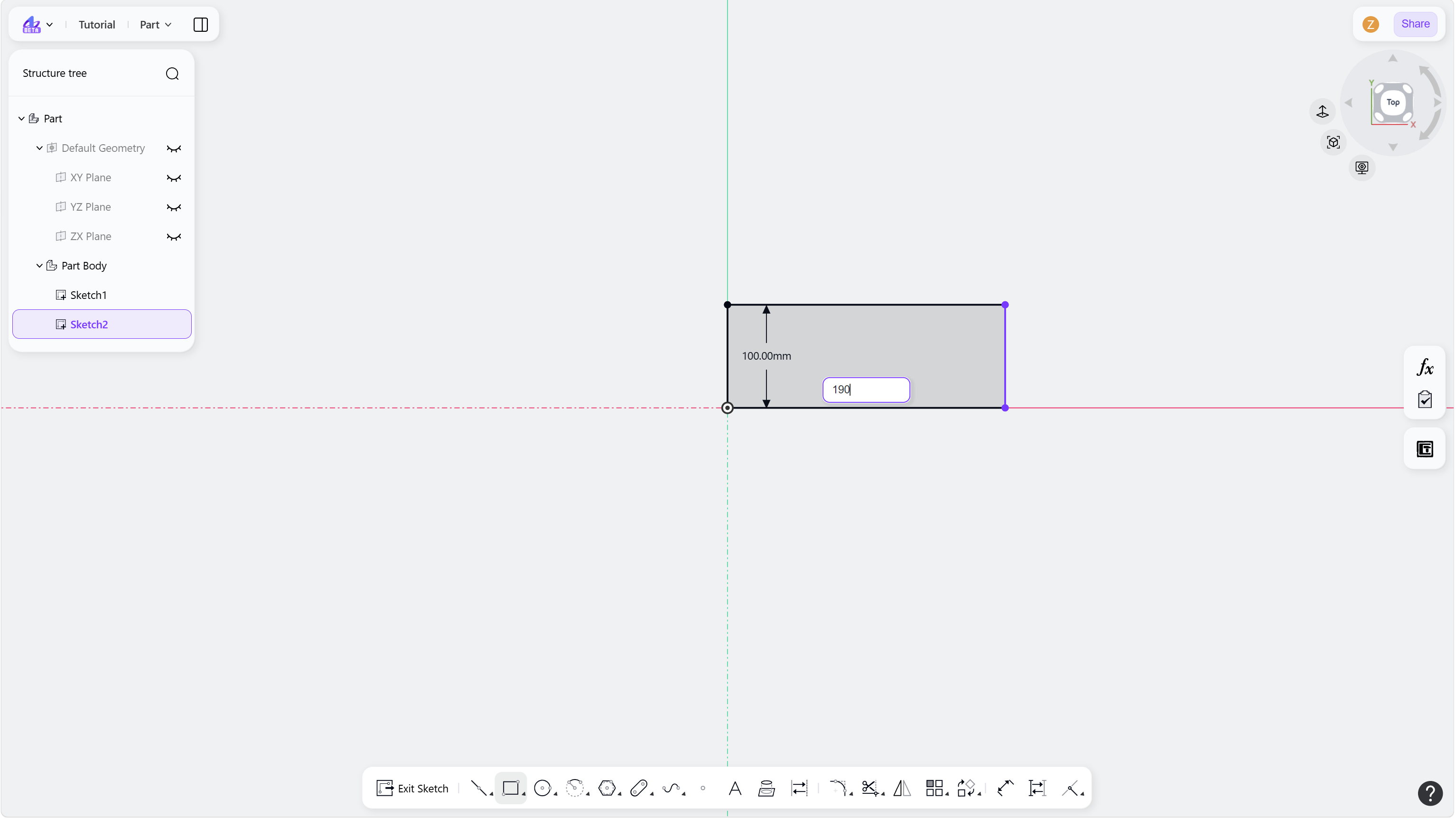

Step 4 - Enter values for height and width constraints to the rectangle:

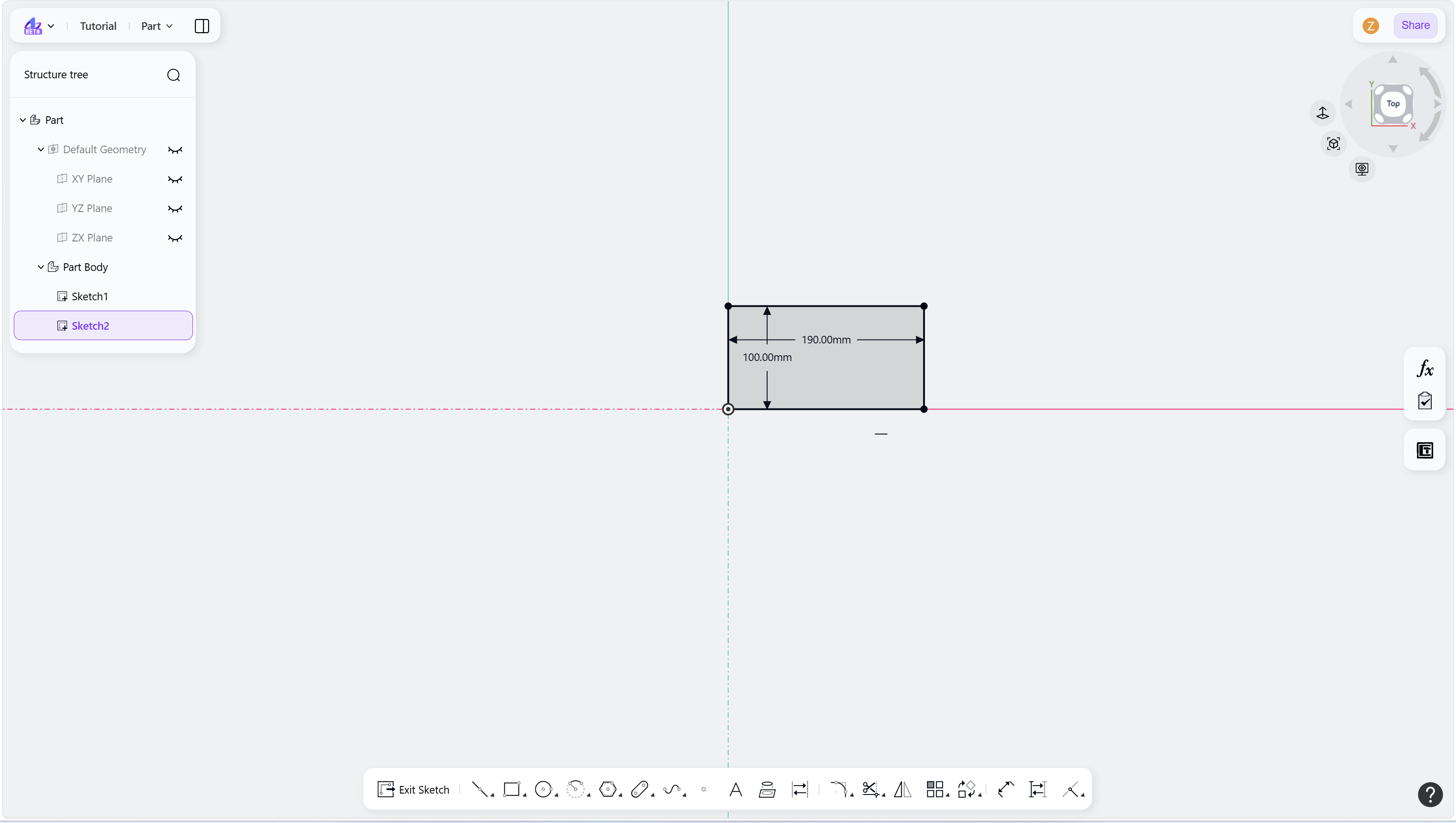

Step 5 - Exit Corner Rectangle mode:

Notes

• Corner rectangles create closed profiles suitable for solid features such as extrusion.

• Width and height constraints enable precise control and later modification.

• Click a dimension to edit its value, or press Tab to switch the currently editable dimension.

• Press G to switch to other rectangle drawing tools.
