Parallelogram

The Parallelogram tool is used to create quadrilaterals with opposite sides parallel and equal in length.

Steps

1. Hover over the "Rectangle" icon in the toolbar.

2. Select "Parallelogram" to enter Parallelogram mode.

3. Create a parallelogram:

   1. Left-click to define the first vertex of the parallelogram.

   2. Move the cursor and click to the adjacent vertex.

   3. Move the cursor and click to define the third point and complete the parallelogram. The fourth point is generated automatically so that opposite sides remain parallel.

   4. (Optional) Enter values and press Enter to apply constraints.

4. Right-click or press Esc to exit.

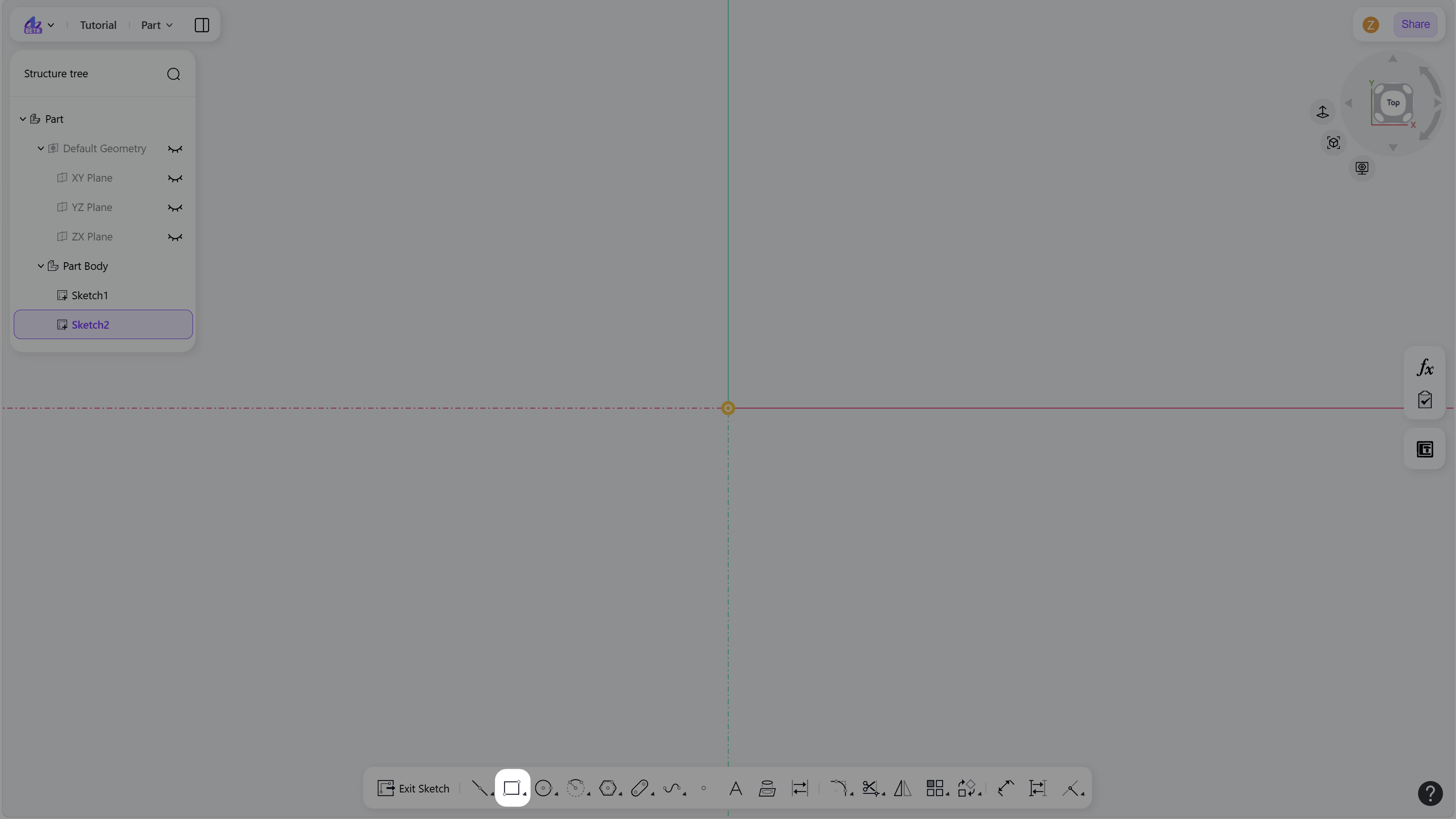

Step 1 - Hover over the "Rectangle" icon in the toolbar:

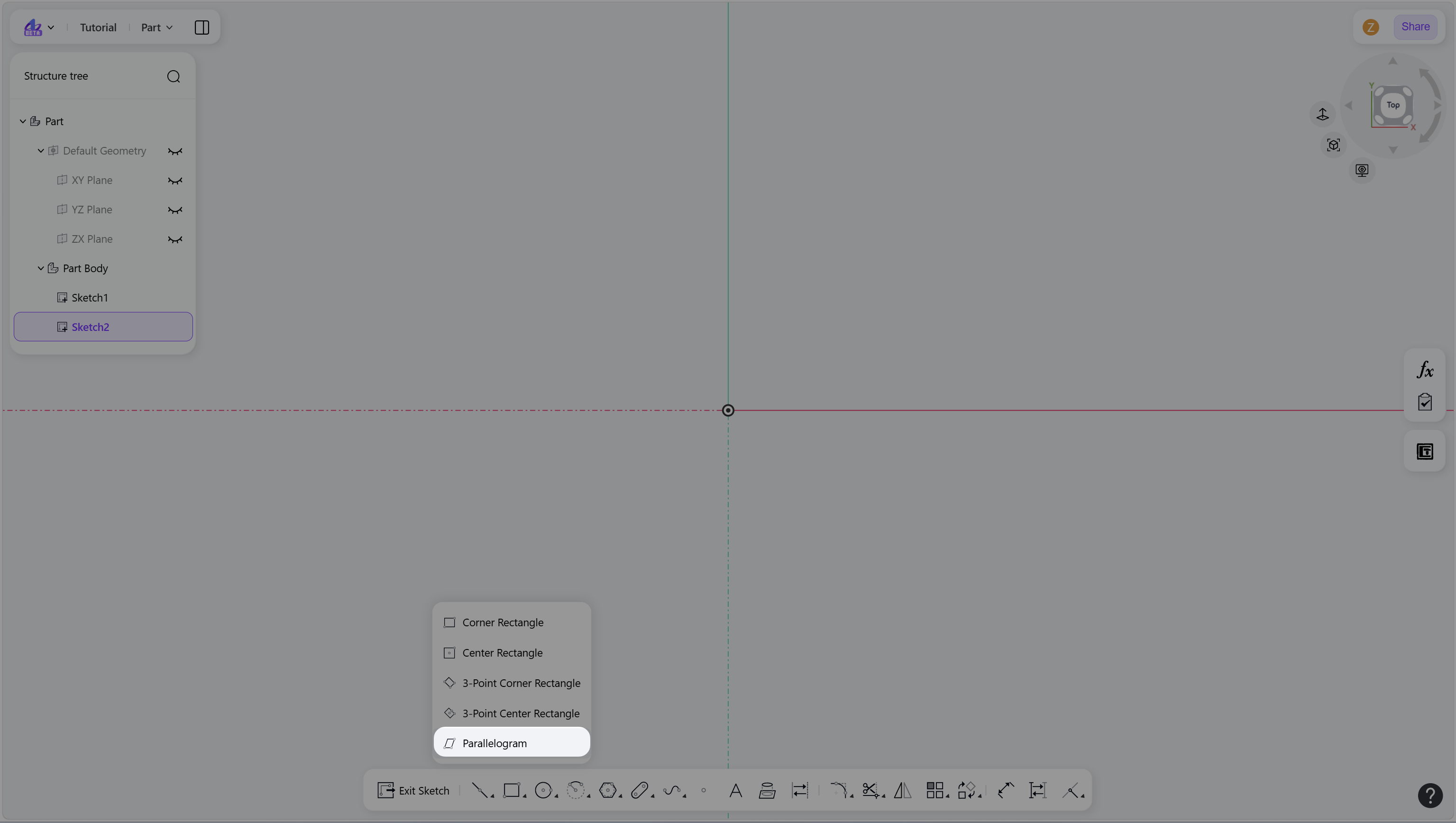

Step 2 - Select "Parallelogram" to enter Parallelogram mode:

Step 3 - Left-click to define the first vertex of the parallelogram:

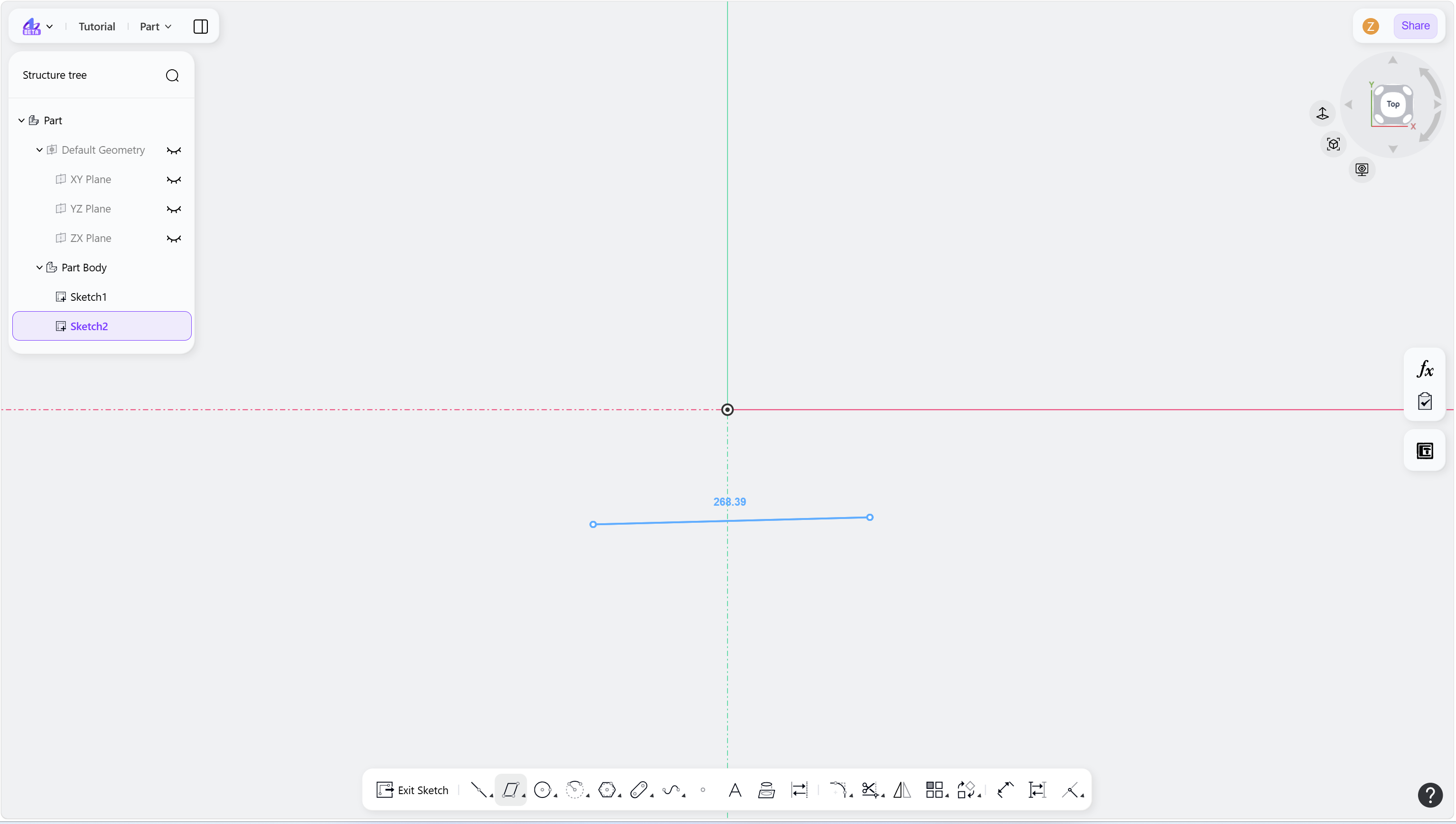

Step 4 - Move the cursor and left-click to define the second point as the adjacent vertex:

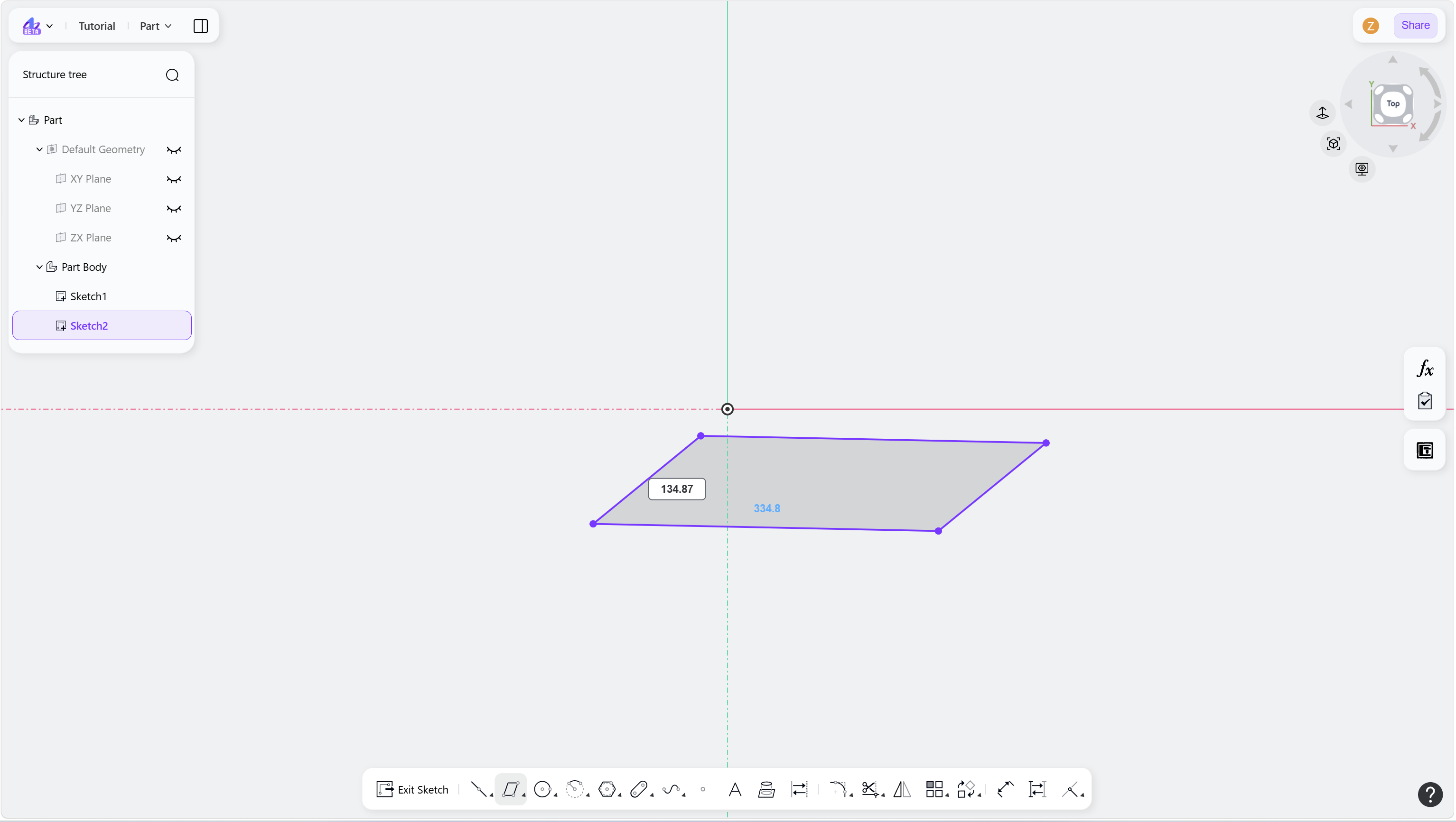

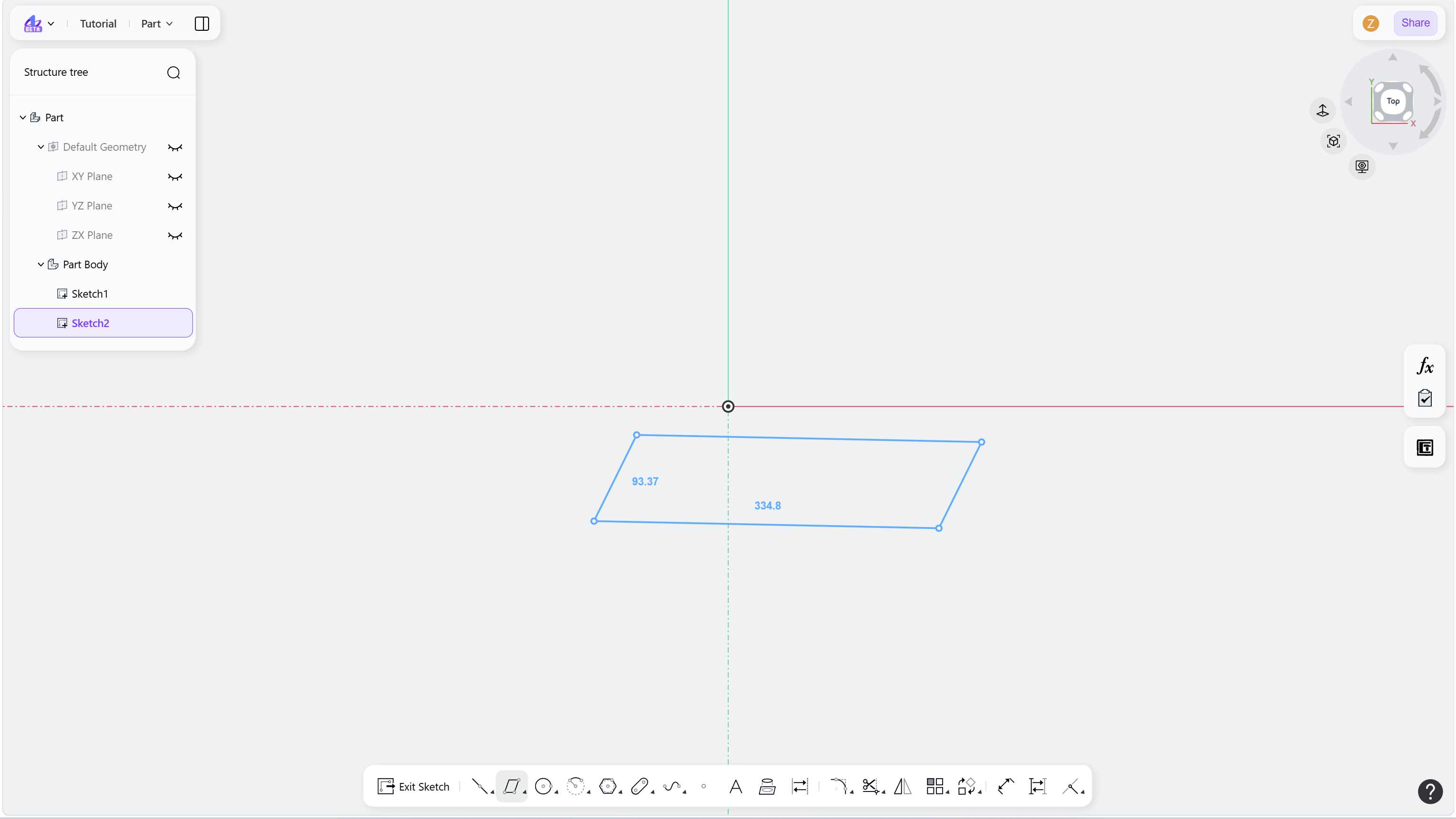

Step 5 - Left-click to define the third point:
