Chamfer

The Chamfer tool creates straight-edged transitions between intersecting sketch elements.

Steps

1. Hover over the "Fillet/Chamfer" icon in the toolbar.

2. Click the "Chamfer" icon to enter the chamfer drawing state.

3. Add a chamfer:

   1. Left-click or box-select in the drawing area to select the two edges that need to add a chamfer, or directly click to select the corner to chamfer.

   2. The chamfer will be automatically generated.

   3. (Optional) Enter the values and press Enter to add dimensional constraints to the chamfer.

4. Right-click or press the Esc key to exit the editing state of "Chamfer".

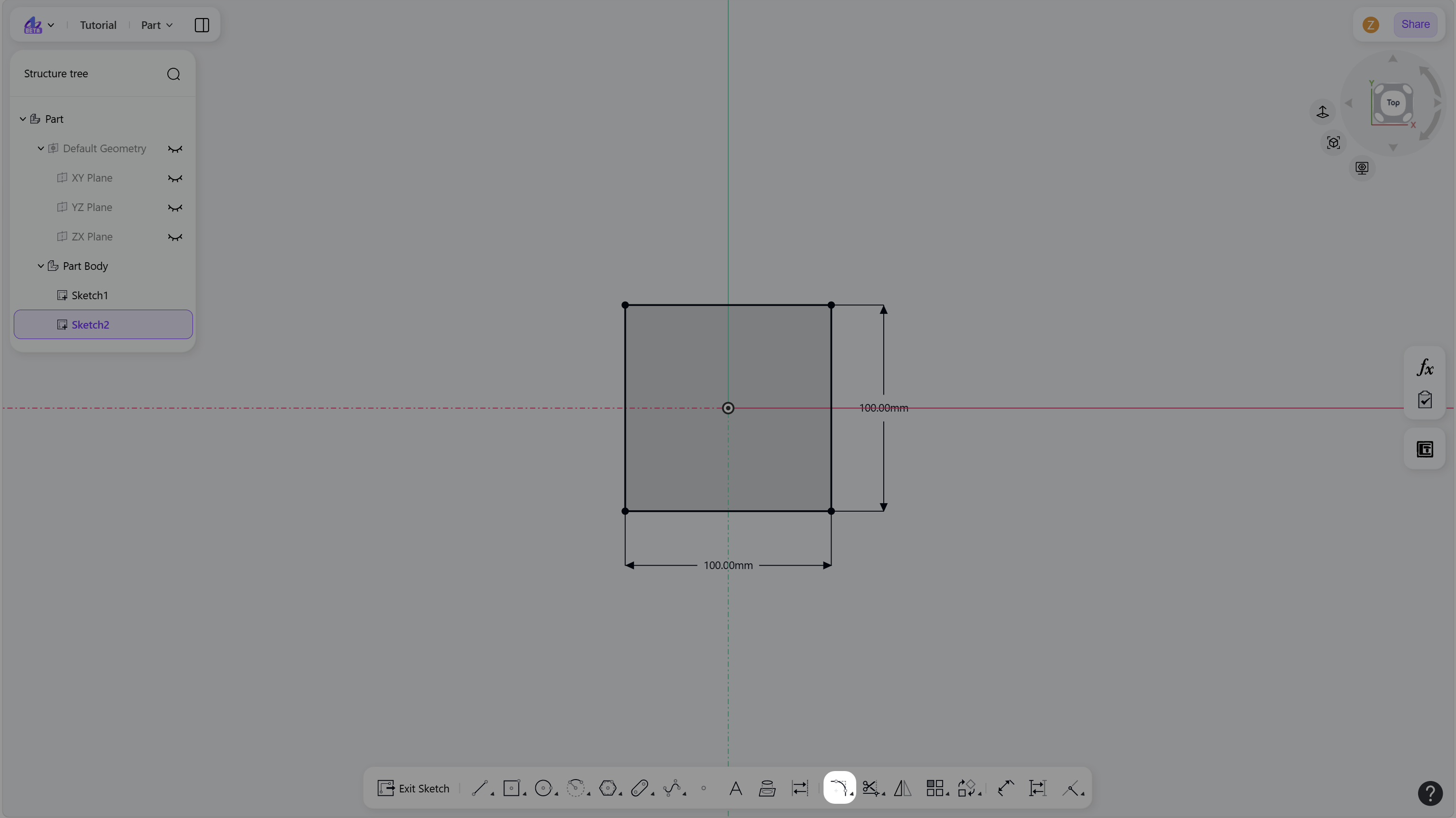

Step 1 - Hover over the "Fillet/Chamfer" icon in the toolbar:

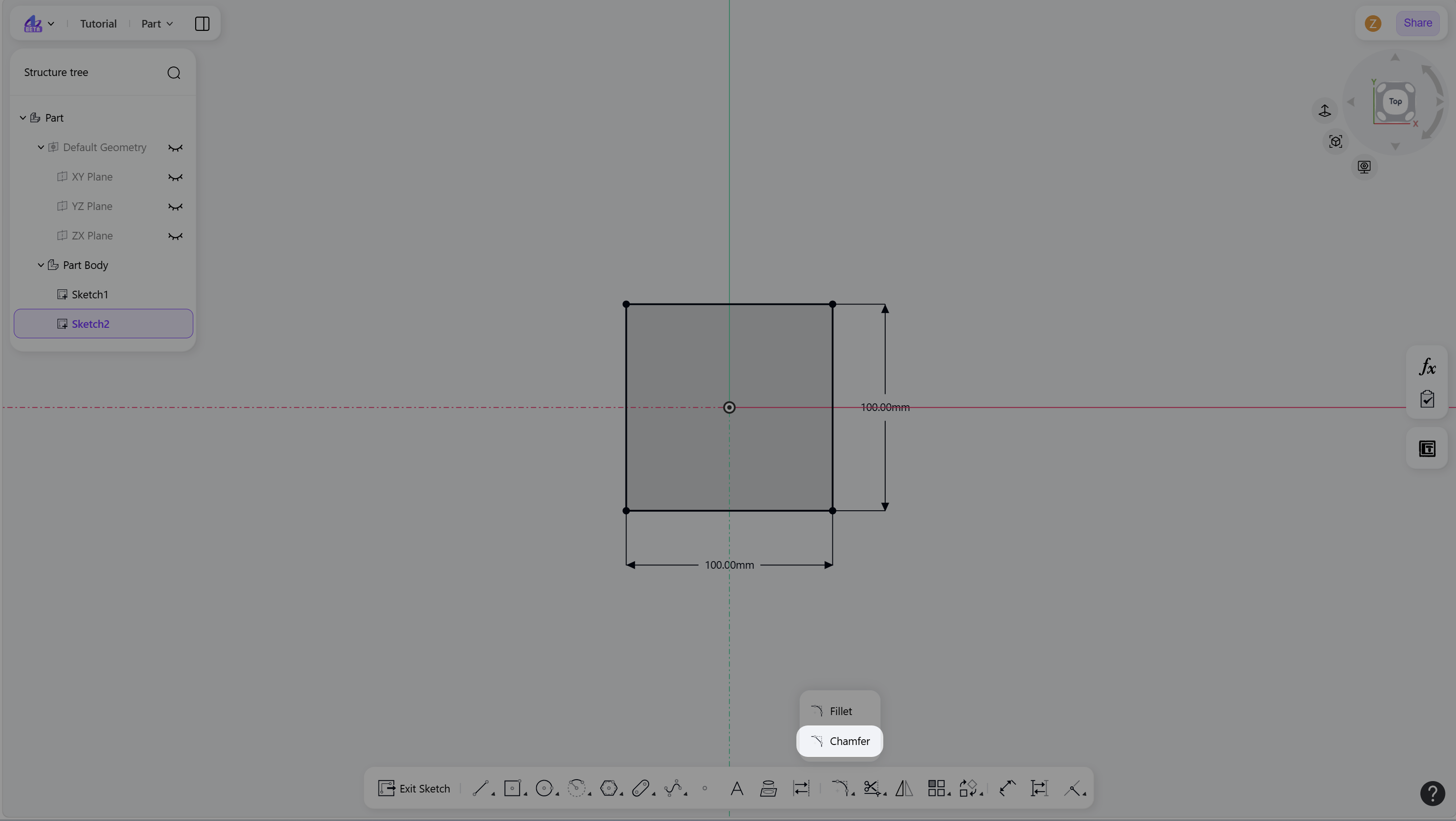

Step 2 - Enter the Chamfer function:

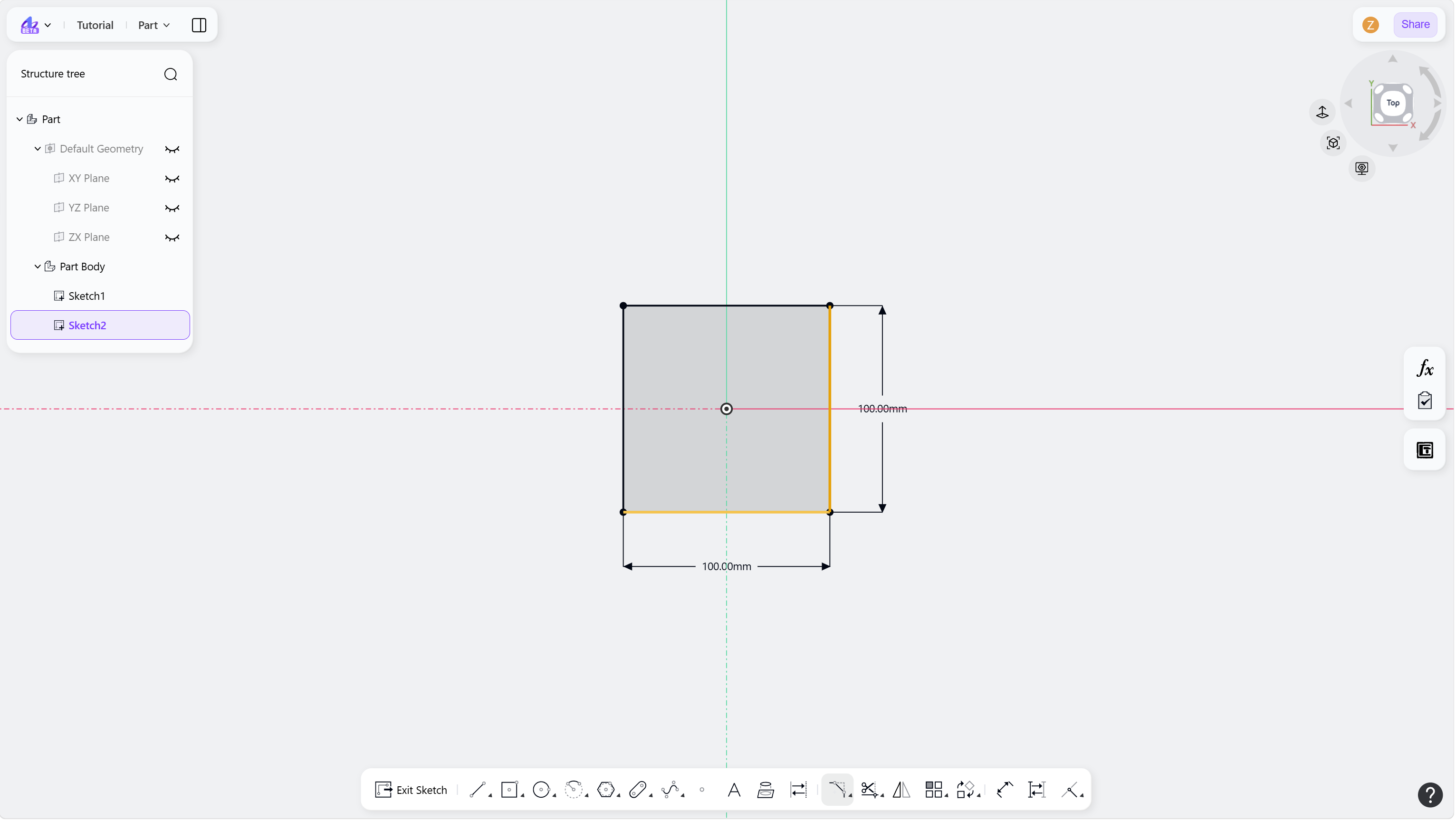

Step 3 - Left-click or box-select to select the two edges that need to add a chamfer, or directly click to select the corner to chamfer:

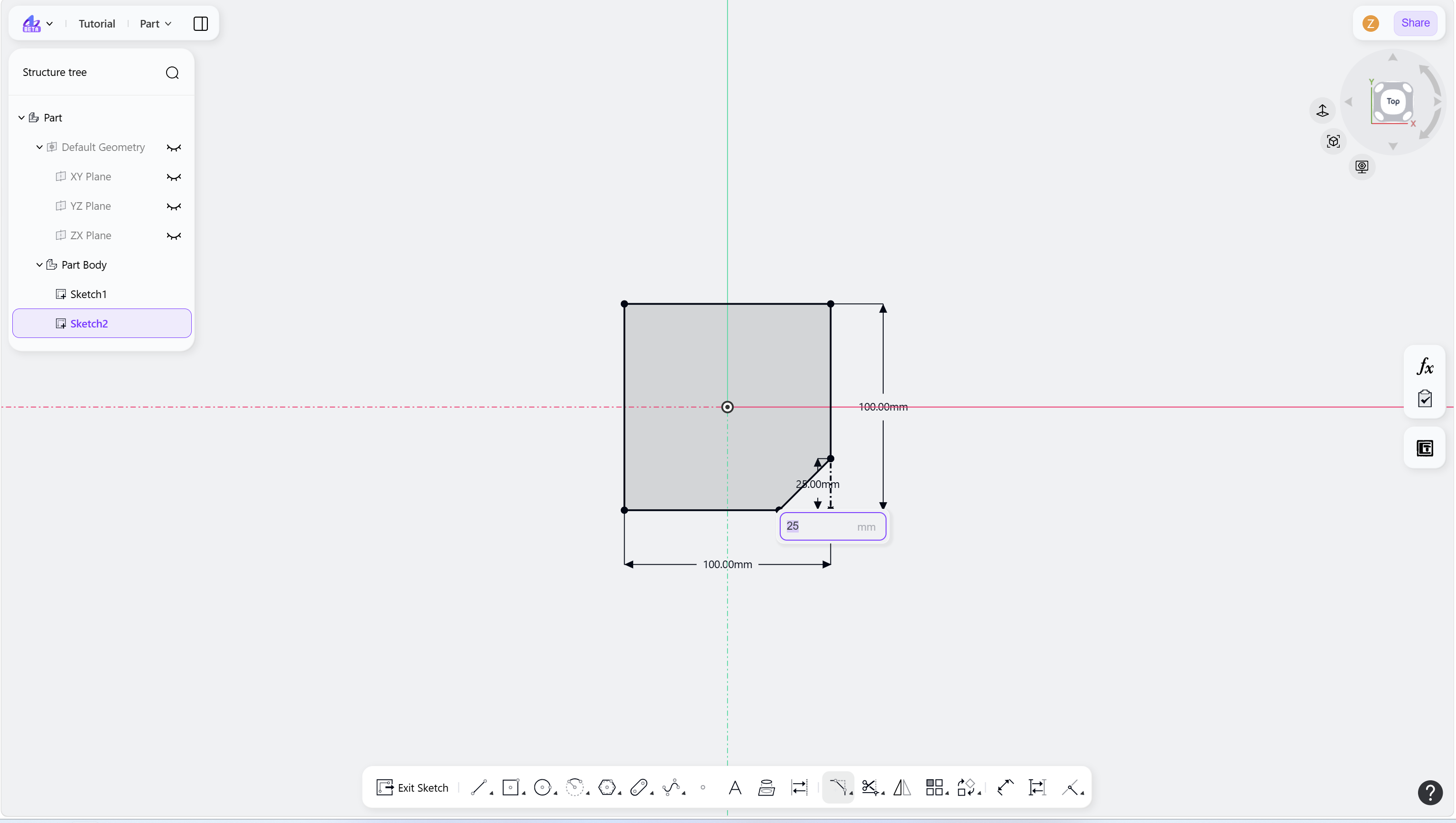

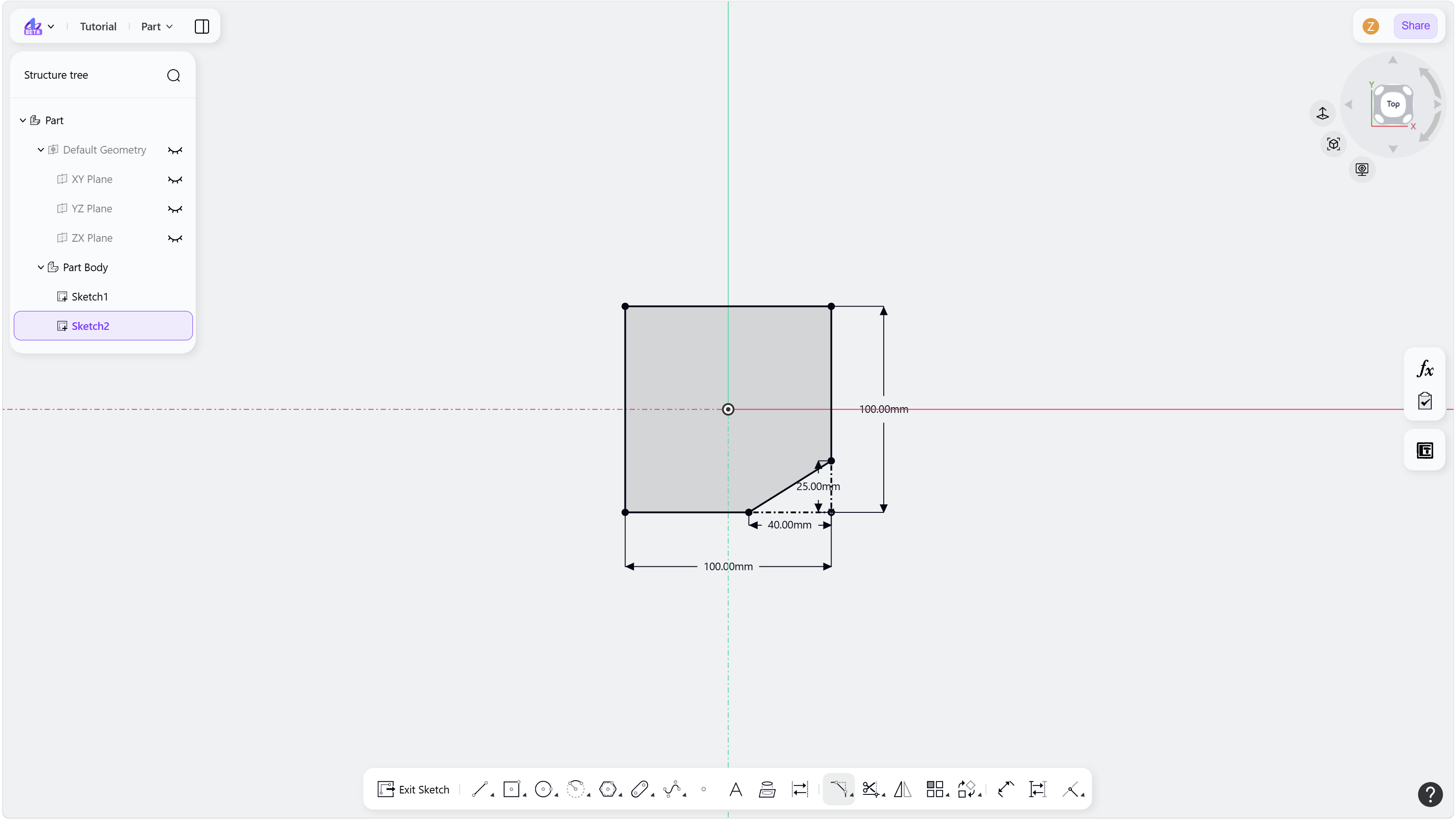

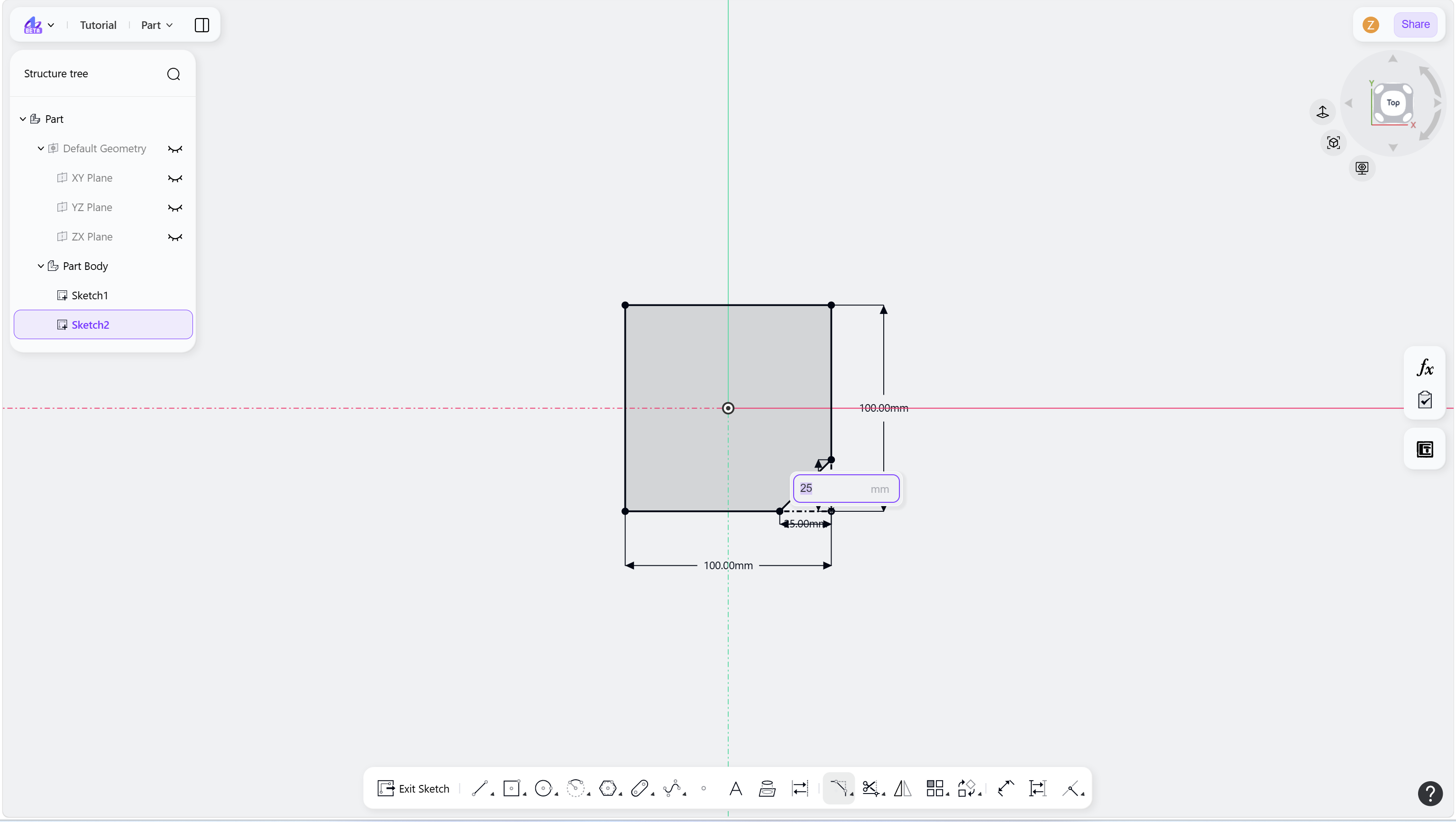

Step 4 - Enter values in sequence. After each input is completed, left-click the empty area or press Enter to confirm:
