Scale

2026-5-25 under 1 minute

The Scale tool resizes sketch geometry proportionally or directionally.

Steps

Select sketch geometry to scale.
Hover over the "Transform/Scale" icon in the toolbar, then select the "Scale".
Drag the scale manipulator to resize the geometry.
Release the cursor to confirm the scale operation.
(Optional) Enter a scale value and press Enter.
Right-click or press Esc to exit.

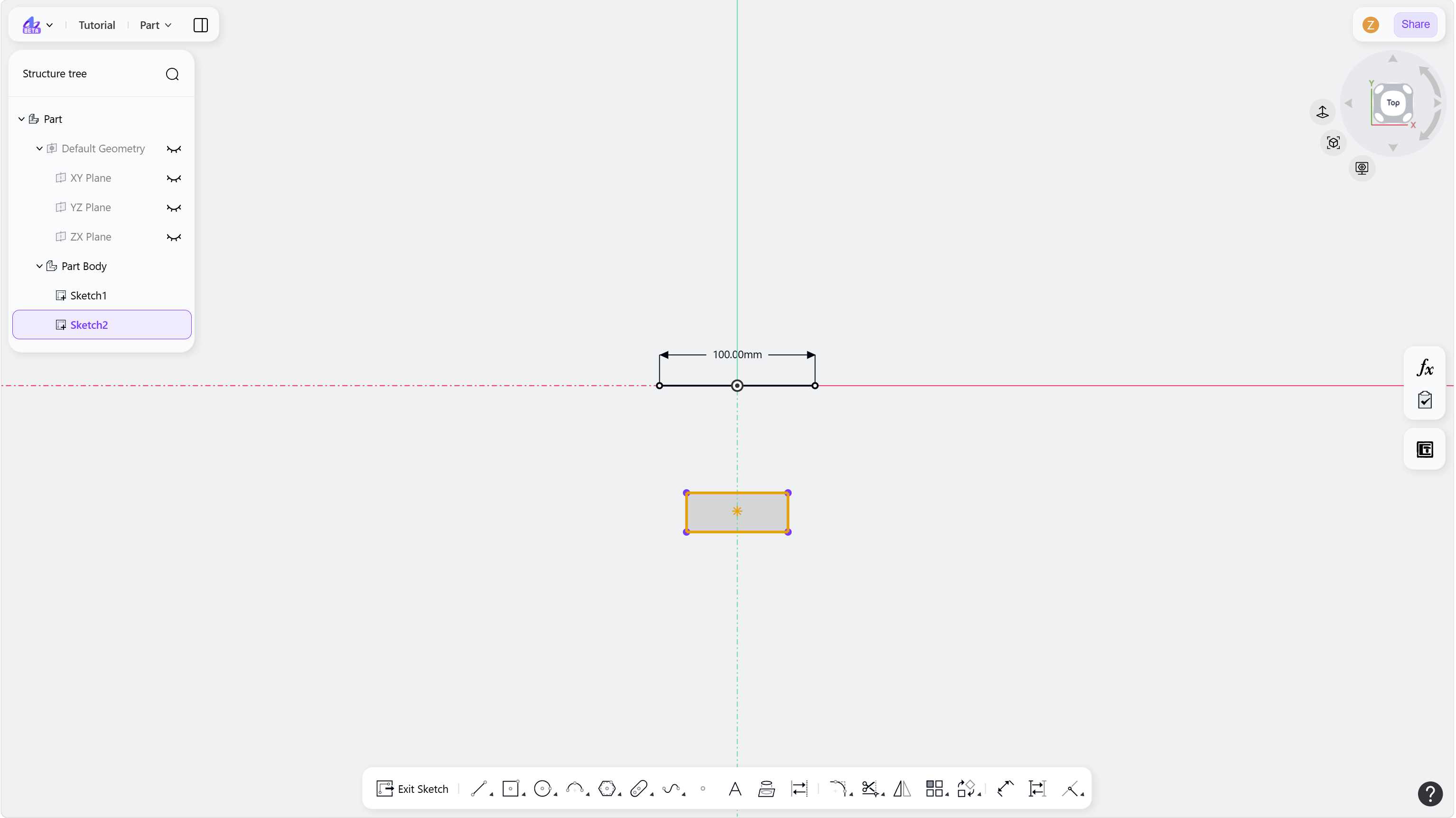

Step 1 -Select sketch geometry to scale:

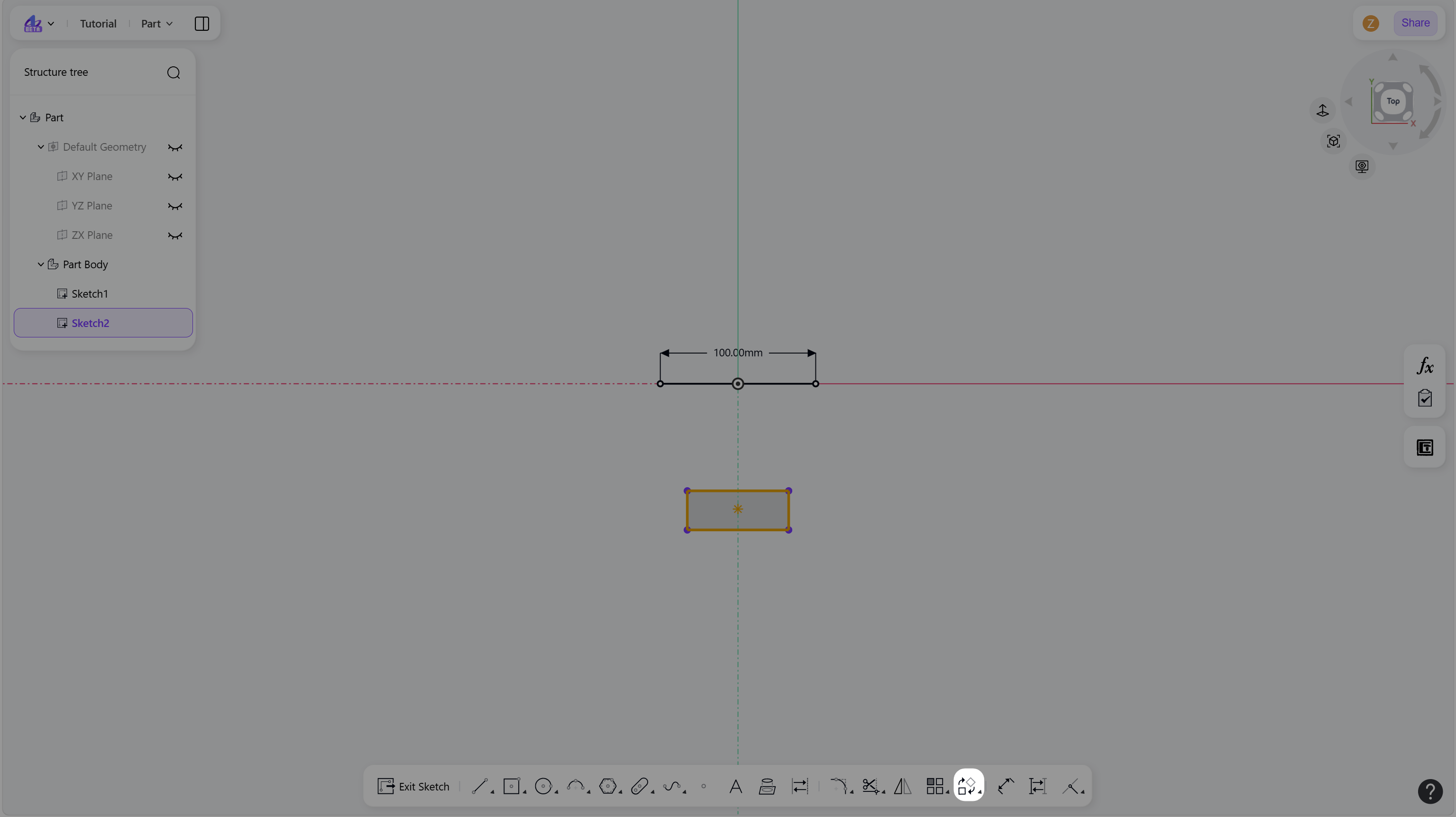

Step 2 - Hover over the "Transform/Scale" icon in the toolbar:

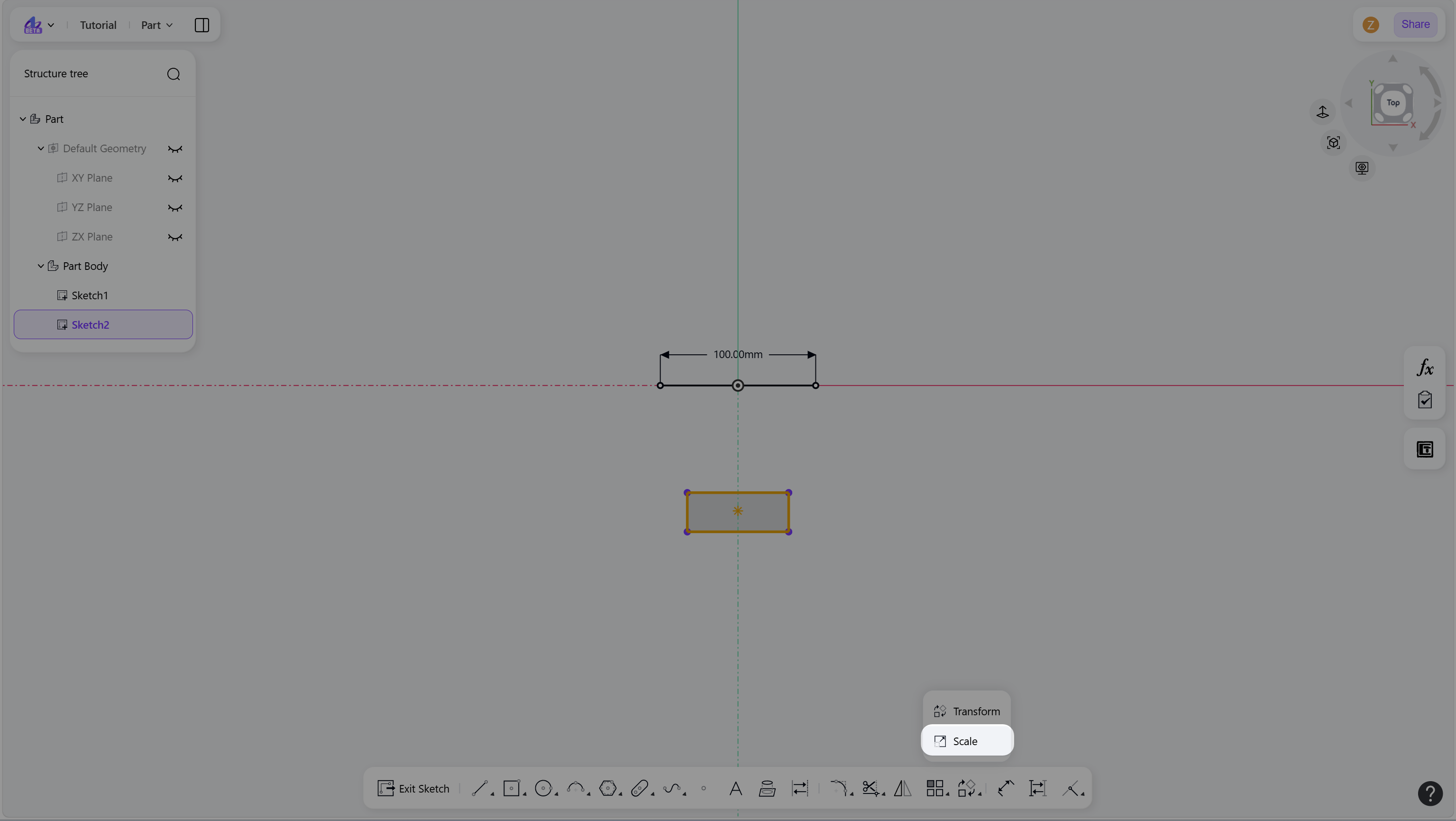

Step 3 - select the "Scale" and enter the scale mode:

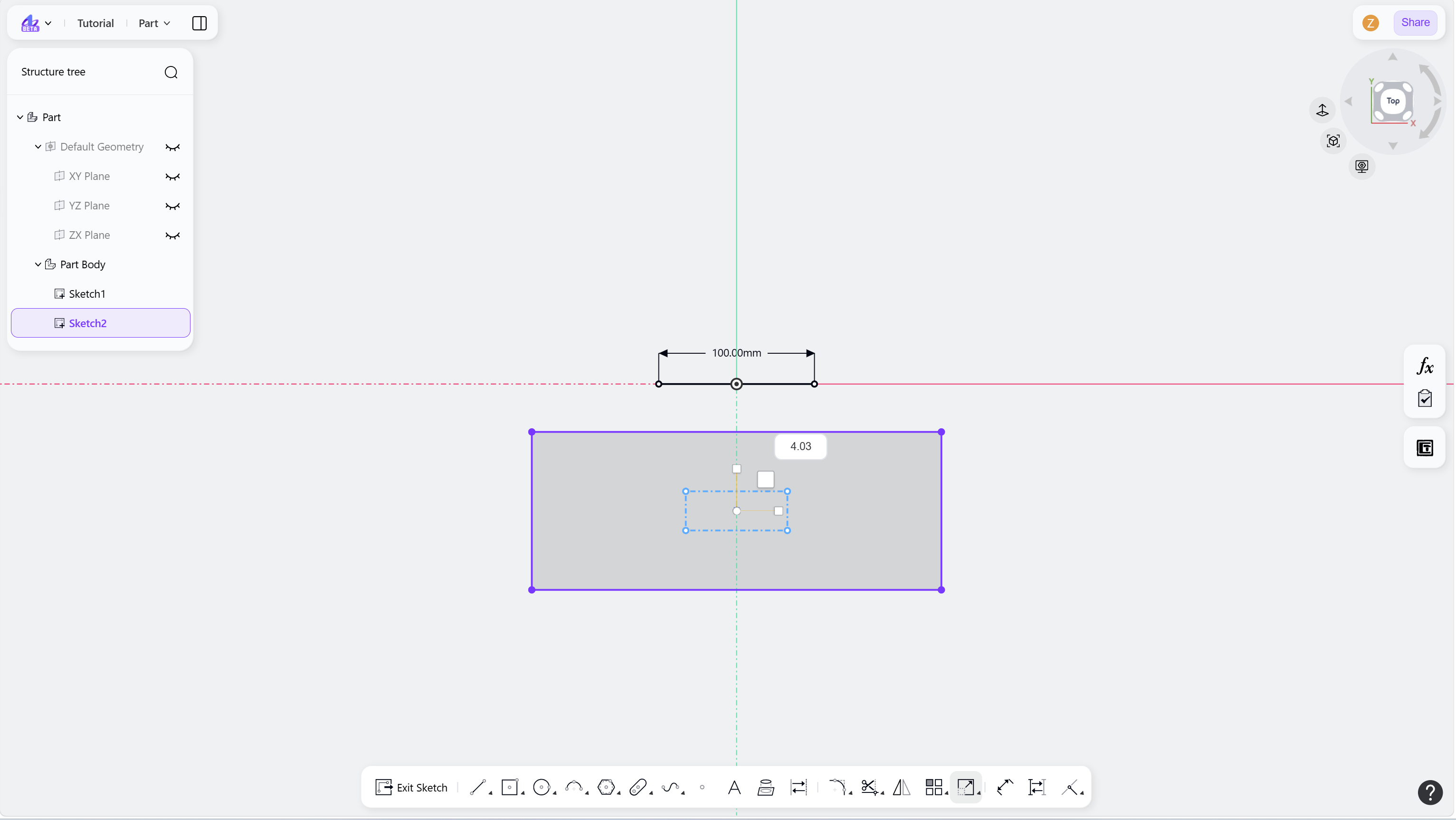

Step 4 - Drag the scale manipulator to resize the geometry:

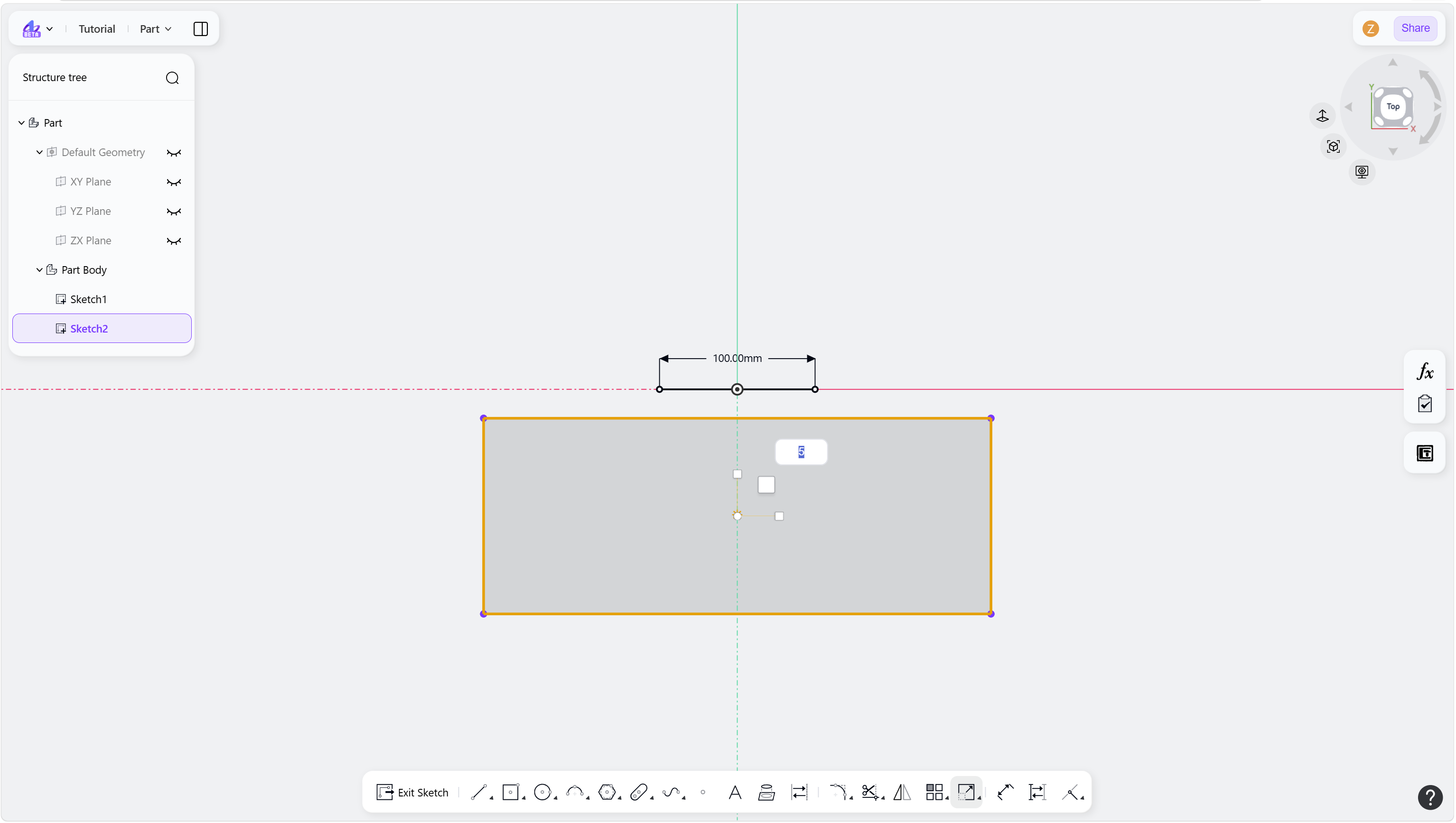

Step 5 - Release the cursor to confirm the scale operation:

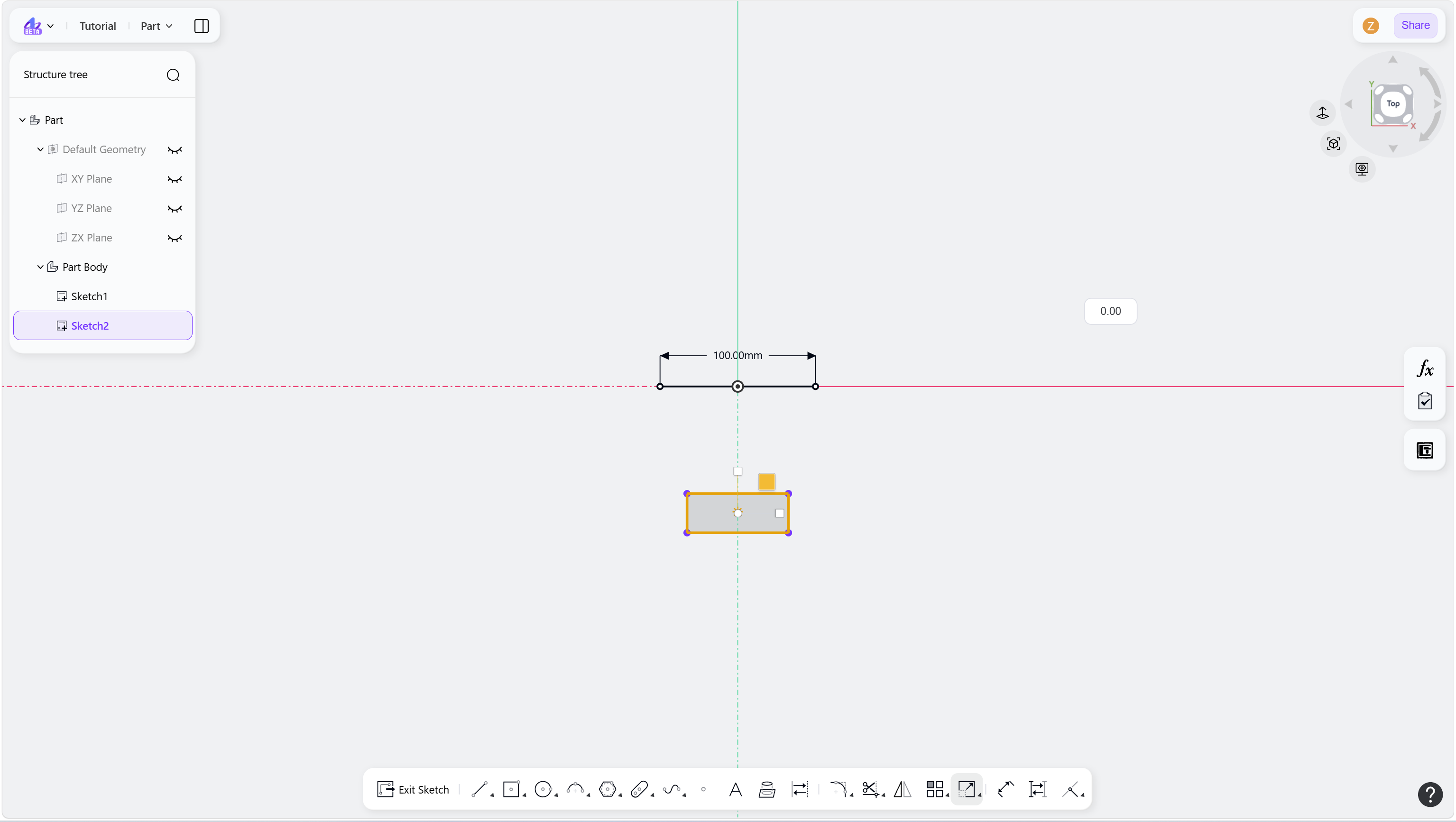

Step 6 - Enter a scale value:

Notes

Uniform and non-uniform scaling are supported.
Some geometry types do not support non-uniform scaling (such as: circles, arcs, ellipses, and spline curves).
Continuous scaling operations are supported.
