Trim

The Trim tool is used to cut off redundant elements such as line segments and arcs in a sketch.

Steps

1. Hover over the "Trim" icon in the toolbar.

2. Click the "Trim" function to enter the trim editing mode.

3. Move the cursor over sketch geometry to preview the trim result.

4. Click the portion to remove.

   1. Continue selecting additional geometry if needed.

5. Right-click or press Esc to exit.

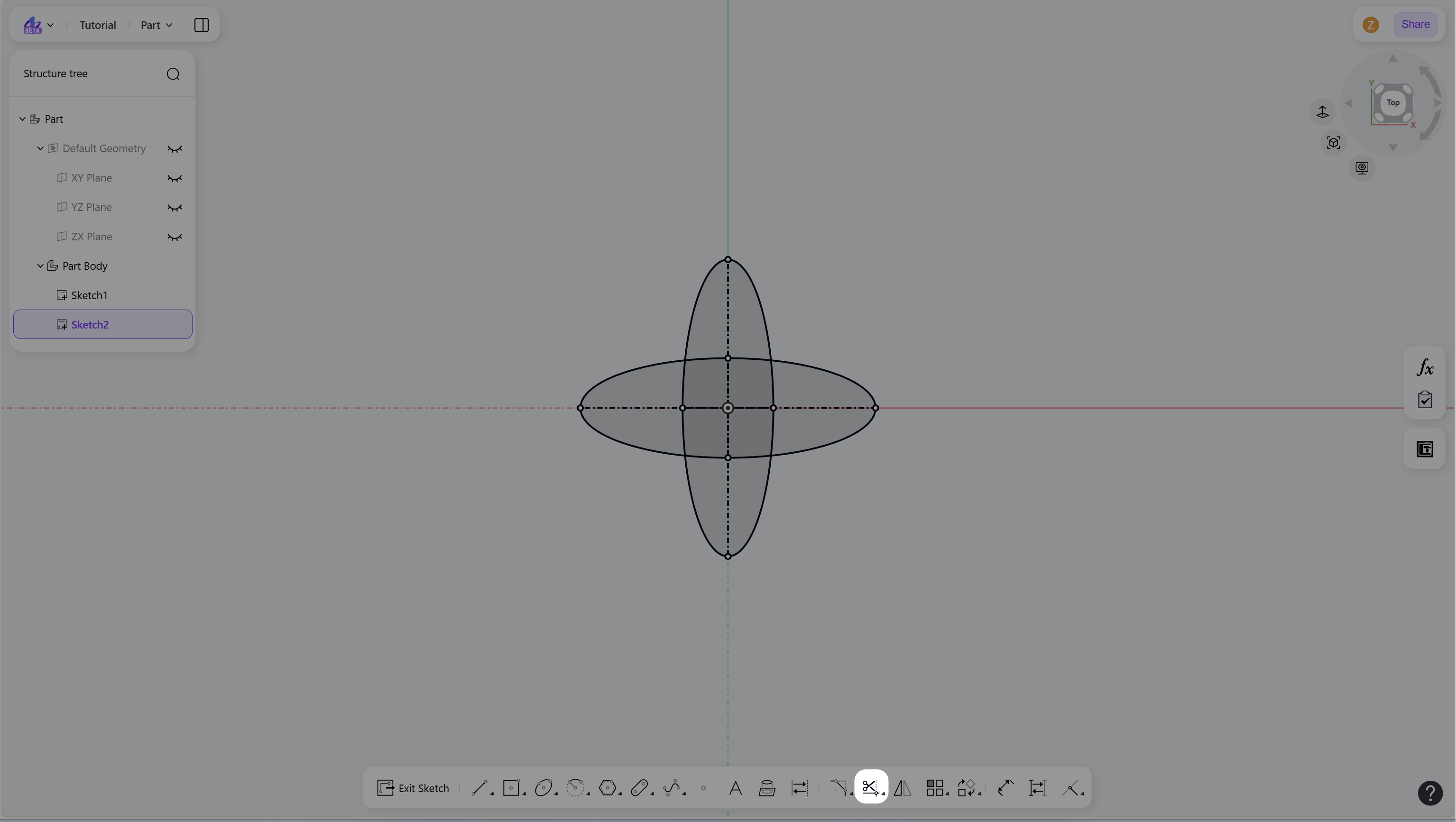

Step 1 - Hover over the "Trim" icon in the toolbar:

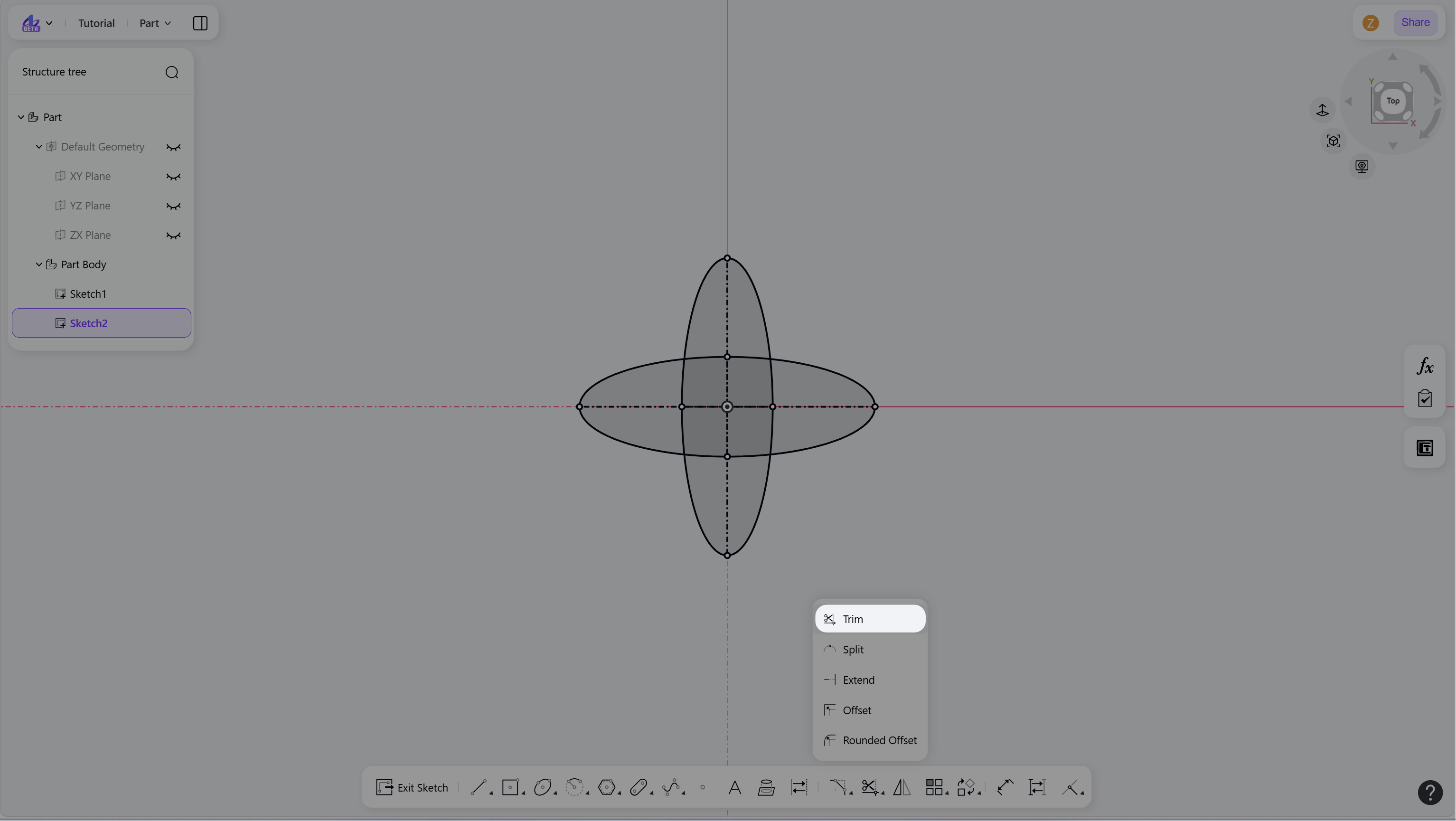

Step 2 - Click the "Trim" function to enter the trim editing mode:

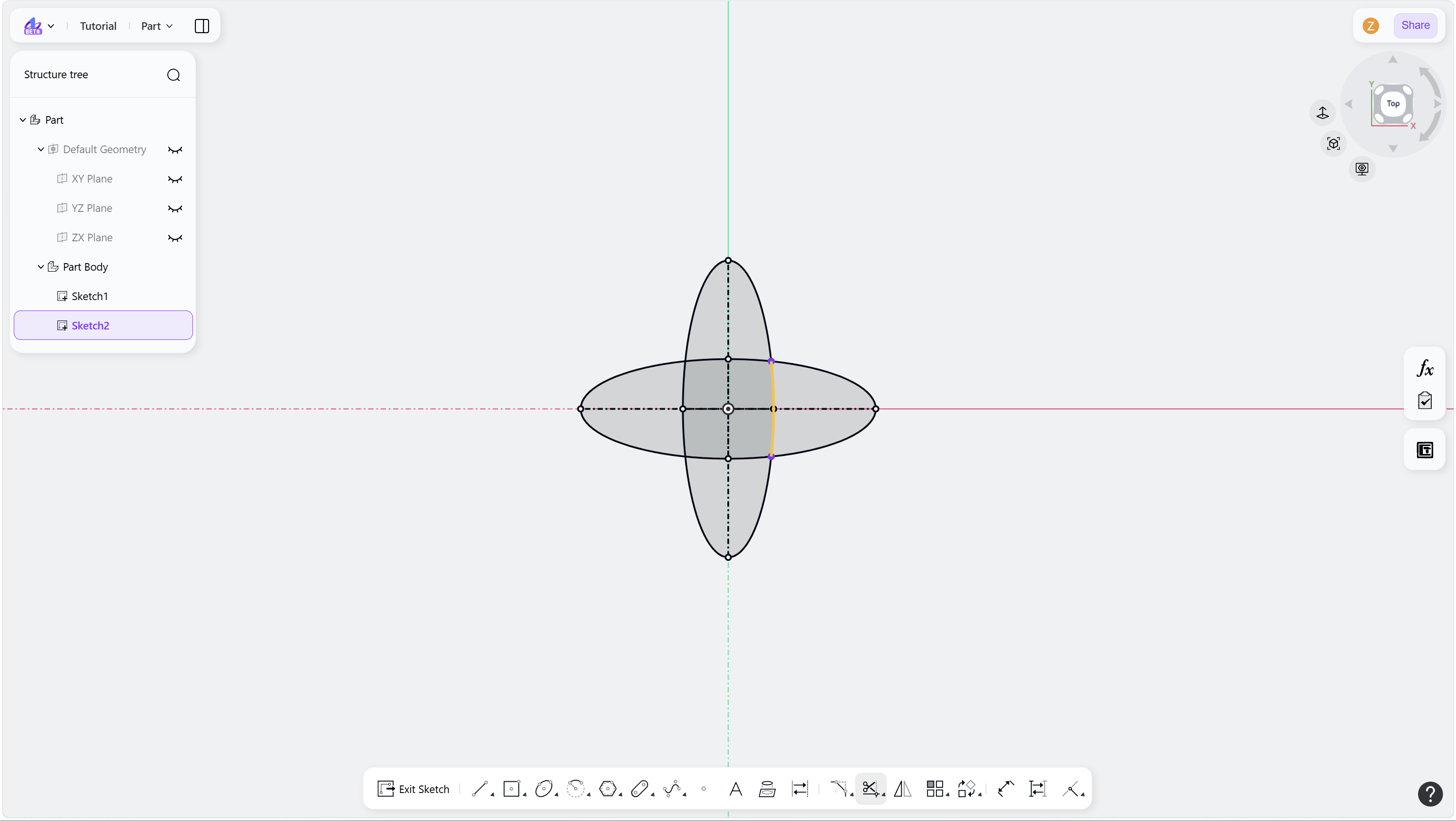

Step 3 - Move the cursor to preview the geometric element to be trimmed:

Step 4 - Left-click to trim the selected element:

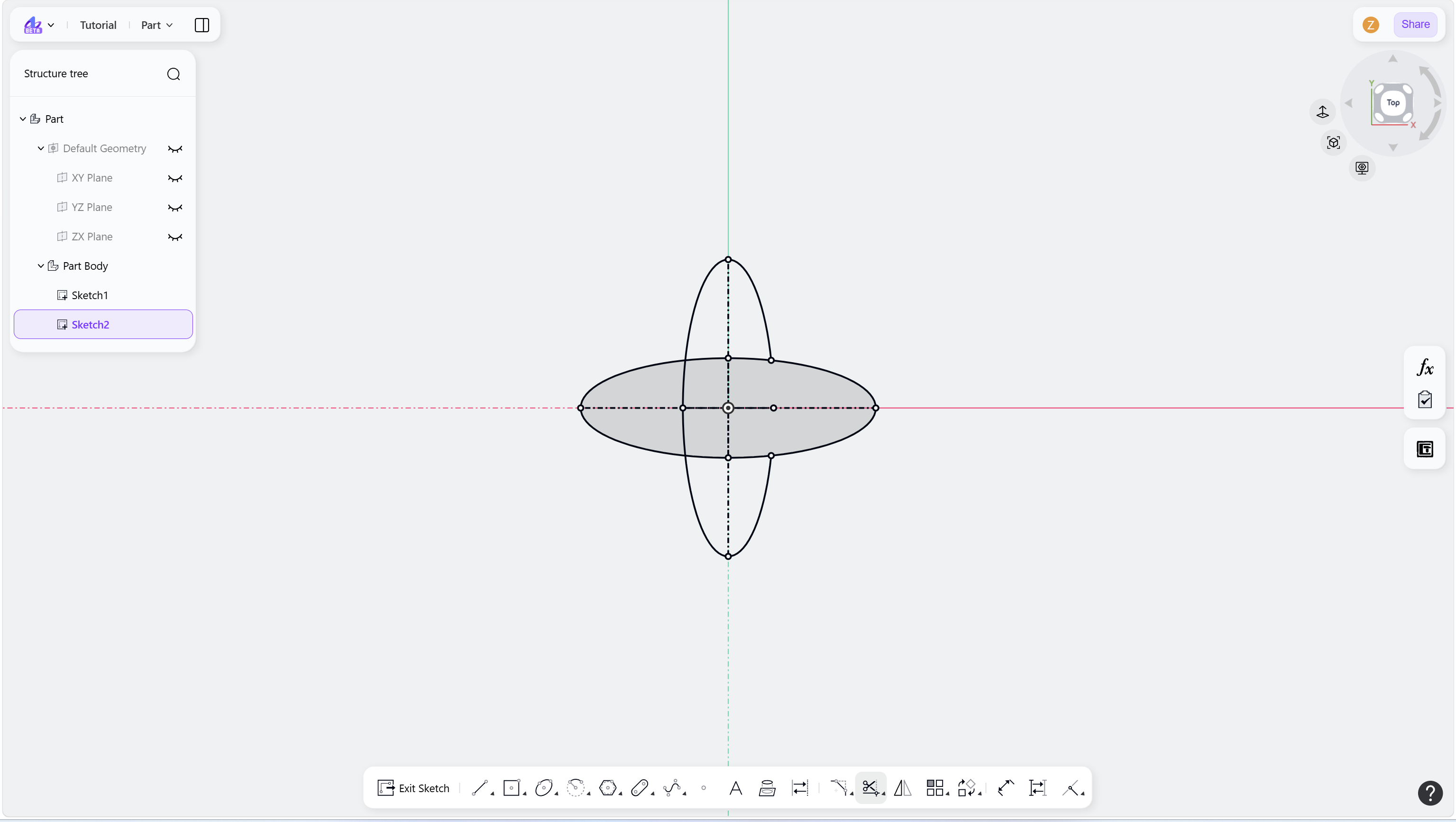

Step 5 - Continue selecting additional geometry if needed:
