Mirror

The Mirror tool creates symmetric copies of sketch geometry about a selected axis. It is a common command for drawing symmetrical structures and avoiding repeated drawing.

Steps

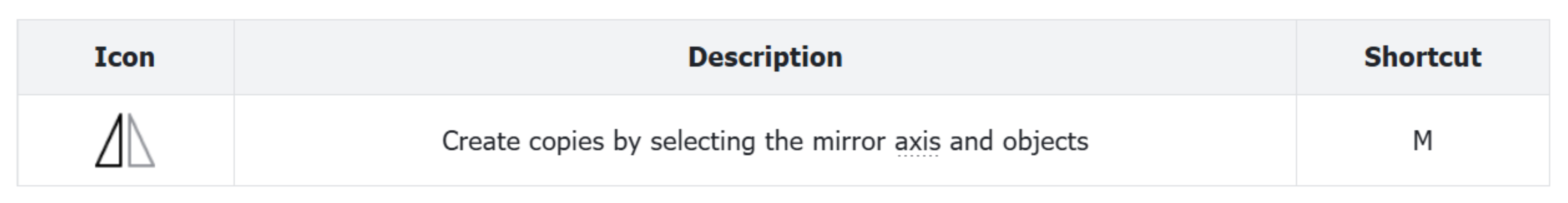

1. Click the "Mirror" icon.

2. Select the mirror axis.

3. Click to select the geometric elements to mirror.

   1. Possible to deselect elements with an extra click.

4. Click an empty area to confirm the operation.

   1. Continue creating mirrored geometry if needed.

5. Right-click or press Esc to exit.

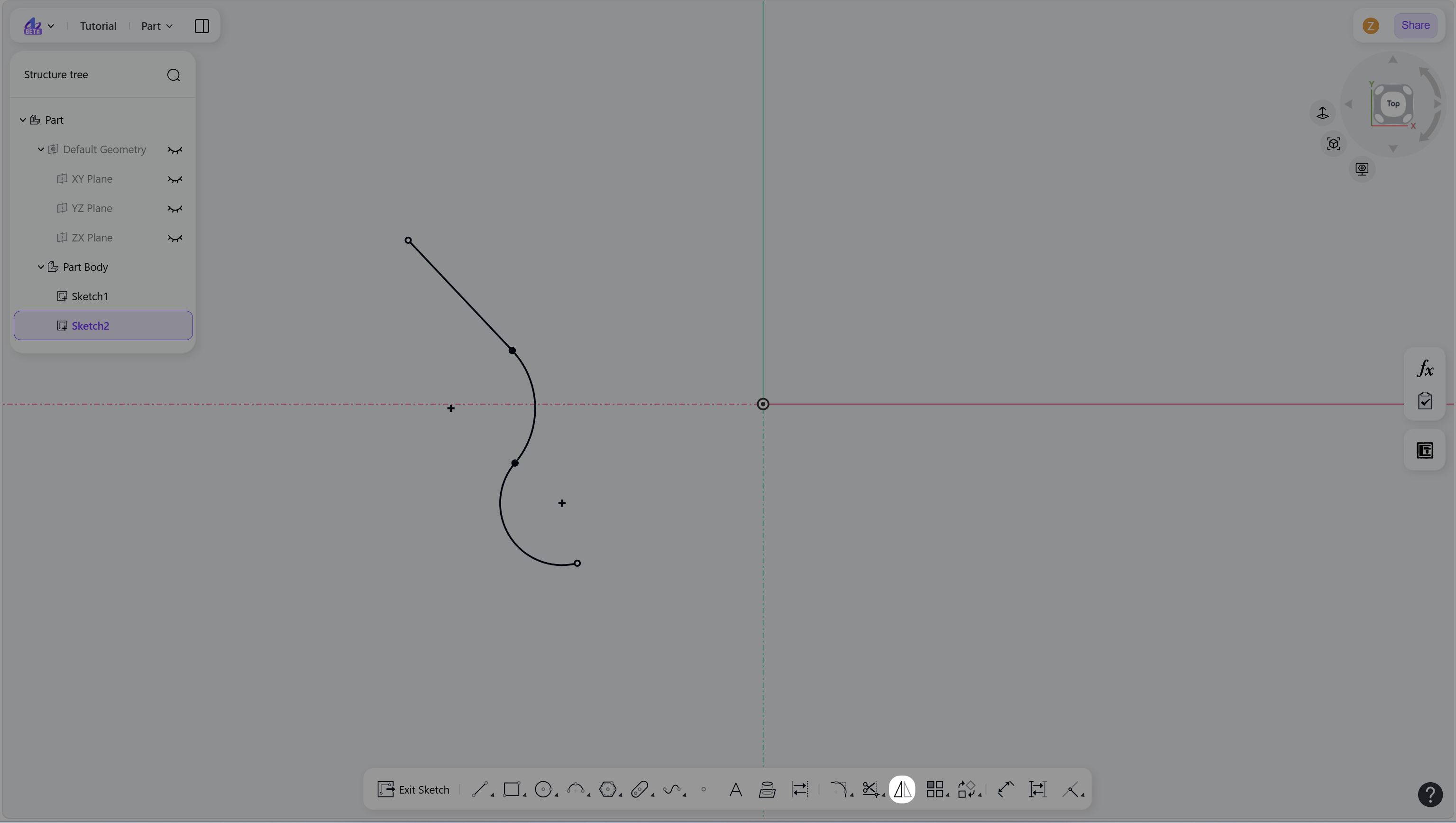

Step 1 - Click the "Mirror" icon:

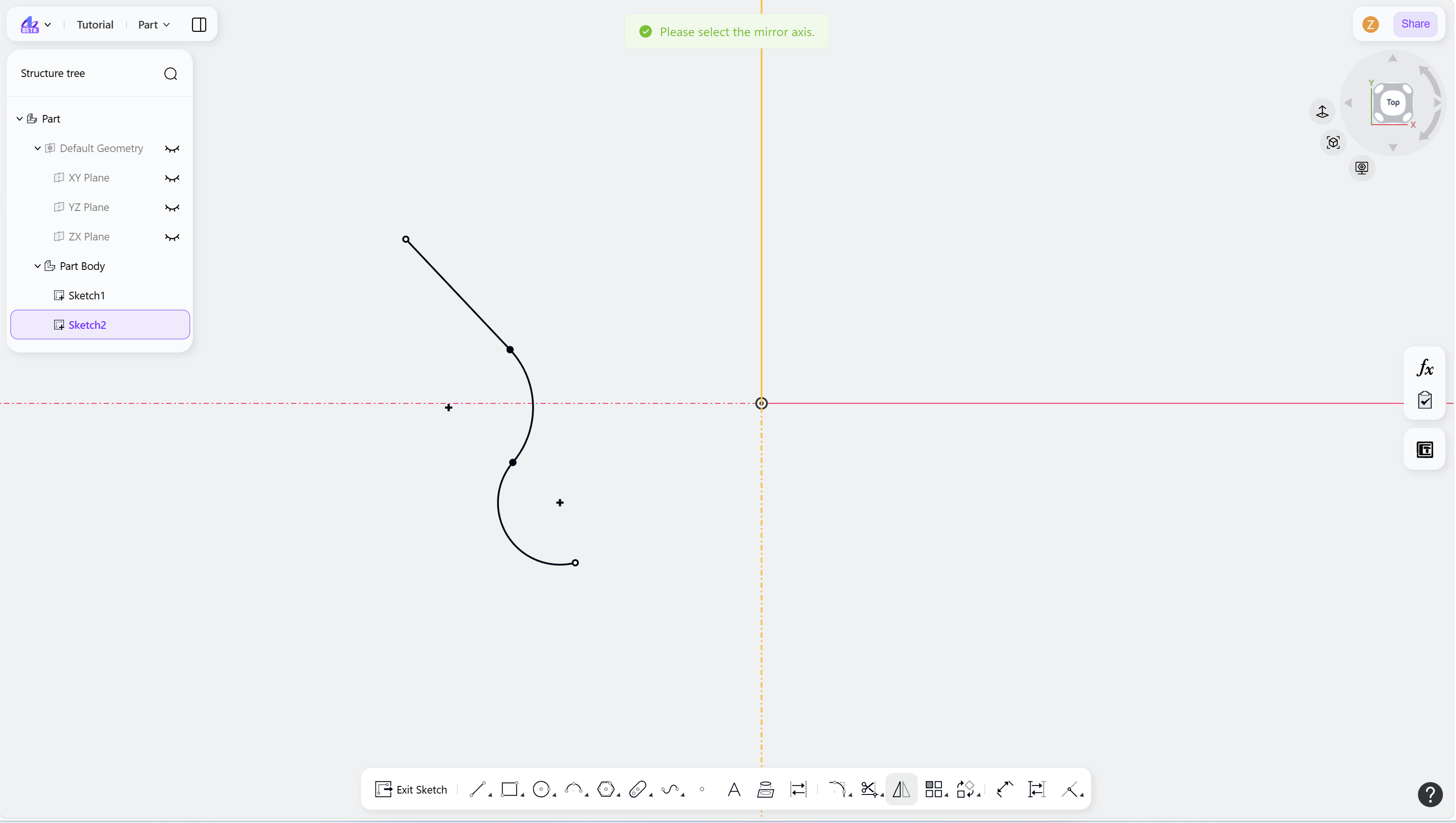

Step 2 - Select the mirror axis:

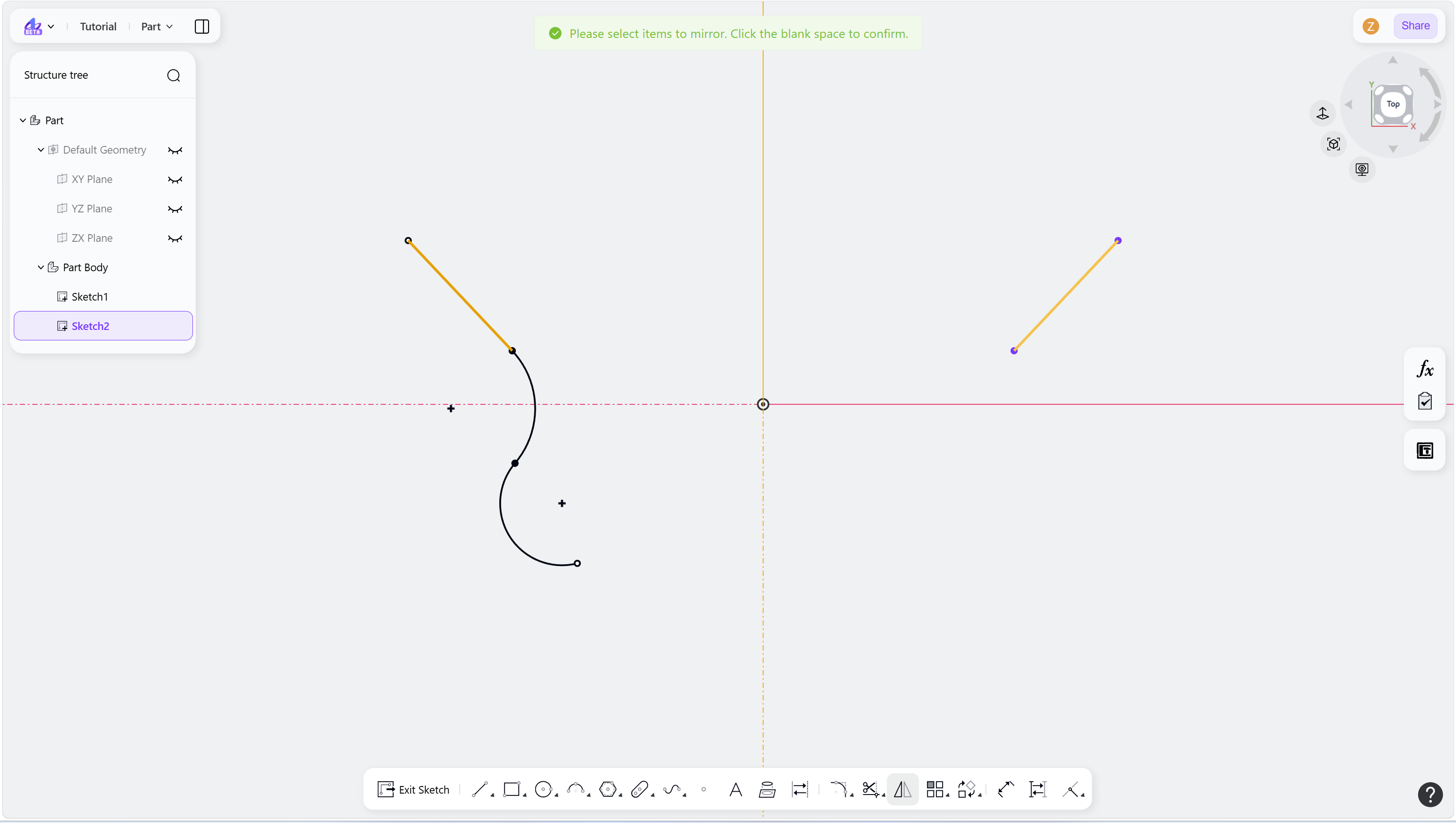

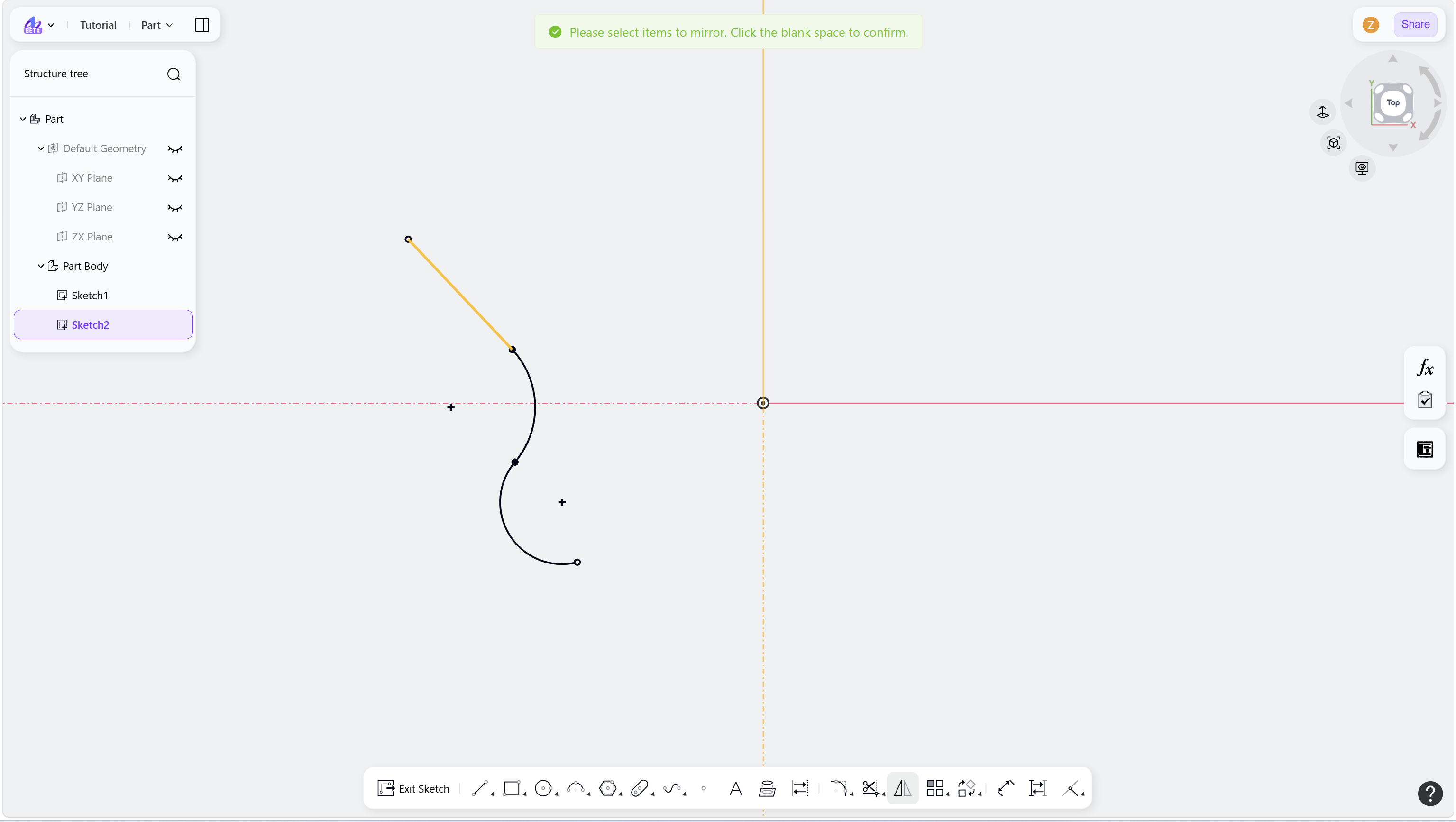

Step 3 - Click to select the geometric elements to mirror:

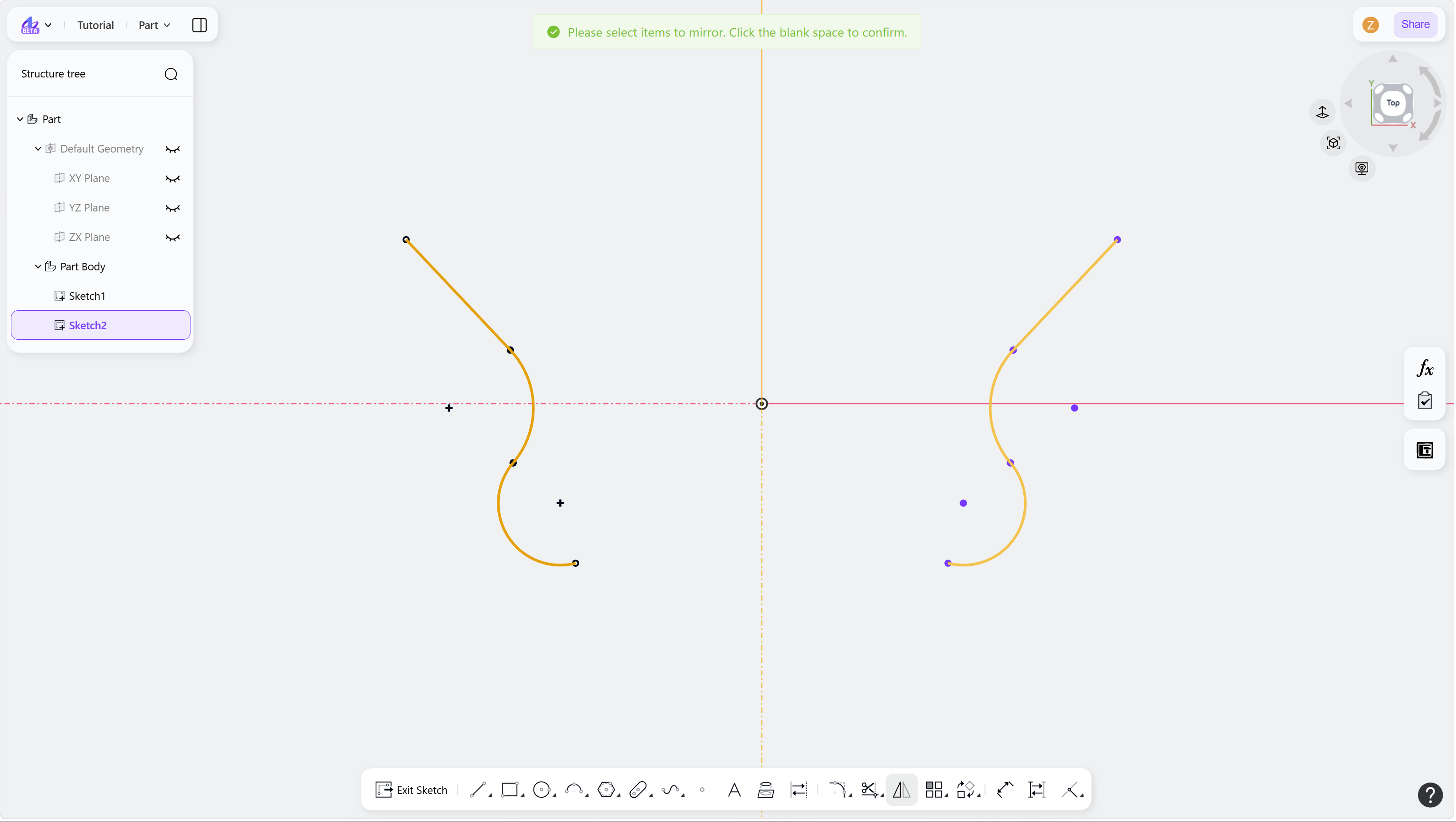

Step 4 - Continue creating mirrored geometry if needed:

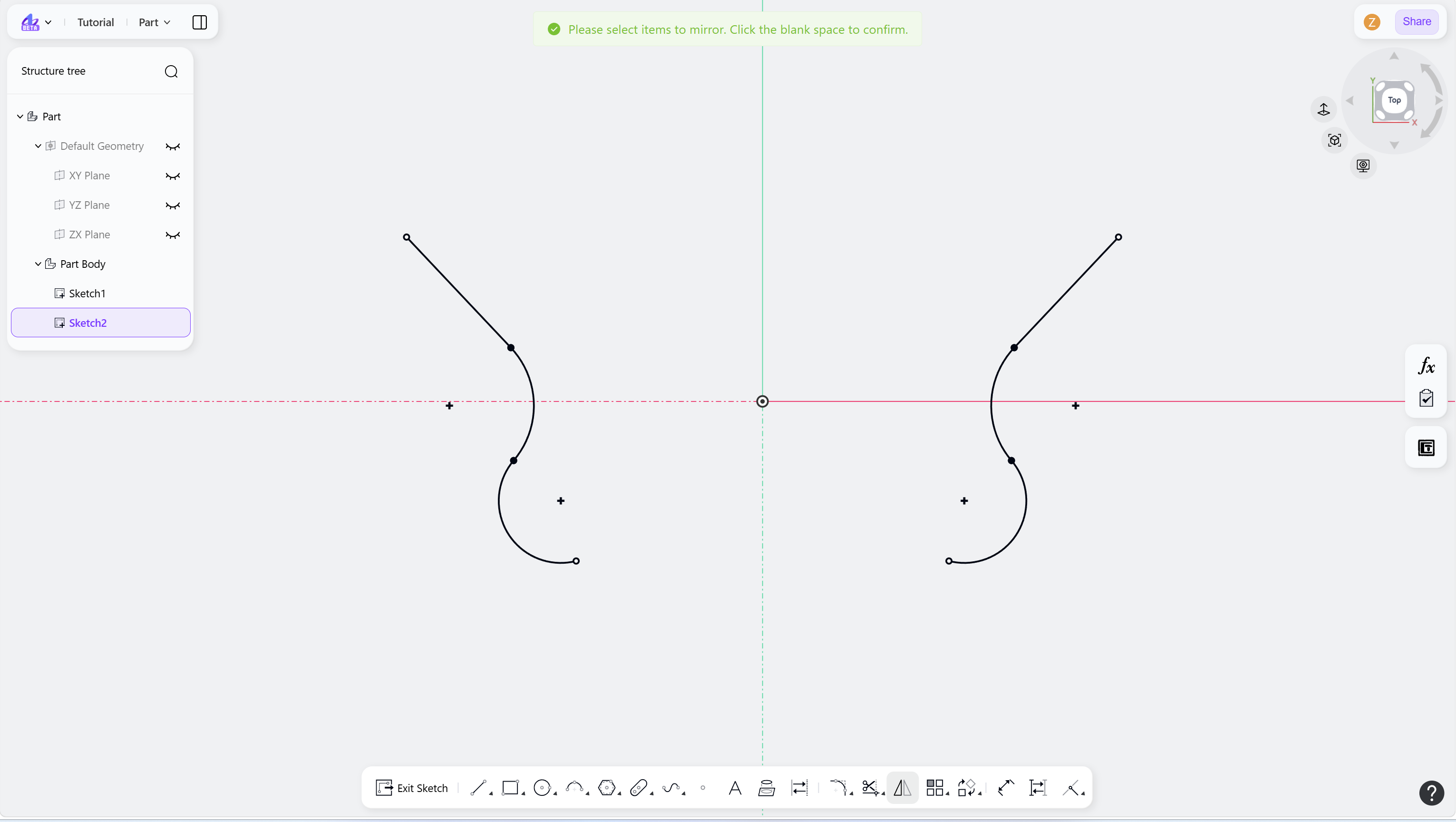

Step 5 - Click an empty area to confirm the operation:

Notes

• Mirror axes can be sketch lines or reference axes.

• Box selection is supported.
